RSB-E Series
High speed motorized rotary stages with built in motor encoders and optional brakes
About This Series

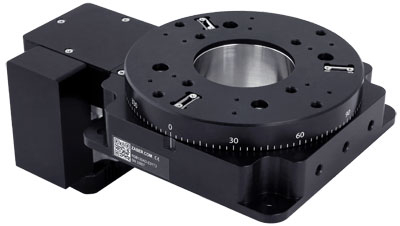

Zaber's RSB-E Series motorized rotation stages feature a compact footprint, low profile, and a load capability of up to 50 kg. With a maximum rotational speed of 1,200 rpm, these rotation stages are ideal for the rapid positioning of light loads. A built-in motor encoder allows for closed-loop operation and slip/stall recovery features.
There are two motor configurations available: up and down. Motor up configurations allow flush mounting of the device to a flat surface, and motor down configurations allow for full 360° movement of loads that extend past the edge of the stage top. An optional power-off brake is available to protect the payload from unintended motion in the event of power loss.
The stages are designed to connect directly to our X-MCC Series universal motor controllers, or they can be used with any 2-phase stepper motor controller through the panel mount DB15 connector or DB26 connector for brake variants. Set up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the RSB-E.

- Panel Mount DB15 with AutoDetect allows the RSB-E to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- Integrated motor encoder, provides easy-to-use closed-loop motion.
- 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
- Motor up and down configurations available.
- Stage top supports multiple mounting options.
- Belt drive allows high speed, low noise, and low backlash positioning.
- Holes on bottom and two sides provide flexible mounting options.
- An optional power-off brake is available to protect payload from unintended motion in the event of power loss.

Have a Question?
Contact us for device selection, troubleshooting & more!
Response time promise: 1 business day

Have a Question?
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.

For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
