X-LSQ Series

High-speed motorized linear stages with built-in controllers

Series Specifications

Built-in Controller
Travel Range	75 – 600 mm
Manual Control	Indexed knob with push switch
Axes of Motion	1
LED Indicators
Weight	1.2 – 2.9 kg

Accuracy (unidirectional)	35 – 230 µm
Repeatability	< 2 – < 10 µm
Backlash	< 15 – < 75 µm
Flatness of Travel	< 30 µm (< 0.001181")
Straightness of Travel	< 20 – < 60 µm
Pitch Error	0.06° (1.047 mrad)
Roll Error	0.03° (0.523 mrad)
Yaw Error	0.03° (0.523 mrad)
Microstep Size (Default Resolution)	0.09921875 – 1.984375 µm
Default Resolution	1/64 of a step
Stage Parallelism	< 100 µm (< 0.003937")

Peak Thrust	35 – 275 N
Maximum Continuous Thrust	18 – 100 N
Back-driving Force*	Varies
Maximum Centered Load	500 N (112.1 lb)
Maximum Moment (Pitch)	6 N⋅m (4.4 lb⋅ft)
Maximum Moment (Roll)	20 N⋅m (14.76 lb⋅ft)
Maximum Moment (Yaw)	6 N⋅m (4.428 lb⋅ft)
Stiffness (Pitch)	150 N⋅m/° (116 µrad/N⋅m)
Stiffness (Roll)	225 N⋅m/° (78 µrad/N⋅m)
Stiffness (Yaw)	150 N⋅m/° (116 µrad/N⋅m)

Maximum Speed	28 – 1000 mm/s
Minimum Speed	0.000061 – 0.001212 mm/s
Speed Resolution	0.000061 – 0.001212 mm/s

Encoder Type
Limit or Home Sensing	Magnetic home sensor

Linear Motion Per Motor Rev	1.27 – 25.4 mm
Motor Steps Per Rev	200
Motor Type	Stepper (2 phase)
Motor Rated Current	2300 mA/phase
Motor Winding Inductance	2.2 mH/phase

Communication Interface	RS-232
Communication Protocol	Zaber ASCII (Default), Zaber Binary
Data Cable Connection	Locking 4-pin M8
Power Supply	24-48 VDC
Power Plug	2-pin Screw Terminal
Maximum Current Draw	1450 mA

Guide Type	Recirculating Ball Linear Guide
Mechanical Drive System	Precision lead screw
Mounting Interface	M6 threaded holes and 8-32 threaded holes

Operating Temperature Range	0 to 50 °C
CE Compliant
Vacuum Compatible

Filter By Feature

Choose one or more options below to filter the parts table.

Travel

Lead Screw Options

Part Specifications Comparison

Part Number	Travel Range	Weight	Accuracy (unidirectional)	Repeatability	Backlash	Straightness of Travel	Microstep Size (Default Resolution)	Peak Thrust	Maximum Continuous Thrust	Back-driving Force*	Maximum Speed	Minimum Speed	Speed Resolution	Linear Motion Per Motor Rev
X-LSQ075A	75 mm (2.953")	1.2 kg (2.646 lb)	35 µm (0.001378")	< 2 µm (< 0.000079")	< 15 µm (< 0.000591")	< 20 µm (< 0.000787")	0.09921875 µm	275 N (61.7 lb)	100 N (22.4 lb)	Non-back-driving	53 mm/s (2.087"/s)	0.000061 mm/s (0.000002"/s)	0.000061 mm/s (0.000002"/s)	1.27 mm (0.05")
X-LSQ075B	75 mm (2.953")	1.2 kg (2.646 lb)	45 µm (0.001772")	< 3 µm (< 0.000118")	< 18 µm (< 0.000709")	< 20 µm (< 0.000787")	0.49609375 µm	120 N (26.9 lb)	75 N (16.8 lb)	(± 30%) 44 N (9.9 lb)	280 mm/s (11.024"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")
X-LSQ075D	75 mm (2.953")	1.2 kg (2.646 lb)	80 µm (0.00315")	< 10 µm (< 0.000394")	< 75 µm (< 0.002953")	< 20 µm (< 0.000787")	1.984375 µm	35 N (7.8 lb)	18 N (4 lb)	(± 30%) 12 N (2.7 lb)	1000 mm/s (39.37"/s)	0.001212 mm/s (0.000048"/s)	0.001212 mm/s (0.000048"/s)	25.4 mm (1")
X-LSQ150A	150 mm (5.905")	1.4 kg (3.086 lb)	45 µm (0.001772")	< 2 µm (< 0.000079")	< 15 µm (< 0.000591")	< 30 µm (< 0.001181")	0.09921875 µm	275 N (61.7 lb)	100 N (22.4 lb)	Non-back-driving	53 mm/s (2.087"/s)	0.000061 mm/s (0.000002"/s)	0.000061 mm/s (0.000002"/s)	1.27 mm (0.05")
X-LSQ150B	150 mm (5.905")	1.4 kg (3.086 lb)	50 µm (0.001968")	< 3 µm (< 0.000118")	< 18 µm (< 0.000709")	< 30 µm (< 0.001181")	0.49609375 µm	120 N (26.9 lb)	75 N (16.8 lb)	(± 30%) 44 N (9.9 lb)	280 mm/s (11.024"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")
X-LSQ150D	150 mm (5.905")	1.4 kg (3.086 lb)	100 µm (0.003937")	< 10 µm (< 0.000394")	< 75 µm (< 0.002953")	< 30 µm (< 0.001181")	1.984375 µm	35 N (7.8 lb)	18 N (4 lb)	(± 30%) 12 N (2.7 lb)	1000 mm/s (39.37"/s)	0.001212 mm/s (0.000048"/s)	0.001212 mm/s (0.000048"/s)	25.4 mm (1")
X-LSQ300A	300 mm (11.811")	1.8 kg (3.968 lb)	90 µm (0.003543")	< 2 µm (< 0.000079")	< 15 µm (< 0.000591")	< 35 µm (< 0.001378")	0.09921875 µm	275 N (61.7 lb)	100 N (22.4 lb)	Non-back-driving	53 mm/s (2.087"/s)	0.000061 mm/s (0.000002"/s)	0.000061 mm/s (0.000002"/s)	1.27 mm (0.05")
X-LSQ300B	300 mm (11.811")	1.8 kg (3.968 lb)	65 µm (0.002559")	< 3 µm (< 0.000118")	< 18 µm (< 0.000709")	< 35 µm (< 0.001378")	0.49609375 µm	120 N (26.9 lb)	75 N (16.8 lb)	(± 30%) 44 N (9.9 lb)	280 mm/s (11.024"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")
X-LSQ300D	300 mm (11.811")	1.8 kg (3.968 lb)	145 µm (0.005709")	< 10 µm (< 0.000394")	< 75 µm (< 0.002953")	< 35 µm (< 0.001378")	1.984375 µm	35 N (7.8 lb)	18 N (4 lb)	(± 30%) 12 N (2.7 lb)	1000 mm/s (39.37"/s)	0.001212 mm/s (0.000048"/s)	0.001212 mm/s (0.000048"/s)	25.4 mm (1")
X-LSQ450A	450 mm (17.716")	2.3 kg (5.071 lb)	135 µm (0.005315")	< 2 µm (< 0.000079")	< 15 µm (< 0.000591")	< 40 µm (< 0.001575")	0.09921875 µm	275 N (61.7 lb)	100 N (22.4 lb)	Non-back-driving	46 mm/s (1.811"/s)	0.000061 mm/s (0.000002"/s)	0.000061 mm/s (0.000002"/s)	1.27 mm (0.05")
X-LSQ450B	450 mm (17.716")	2.3 kg (5.071 lb)	75 µm (0.002953")	< 3 µm (< 0.000118")	< 18 µm (< 0.000709")	< 40 µm (< 0.001575")	0.49609375 µm	120 N (26.9 lb)	75 N (16.8 lb)	(± 30%) 44 N (9.9 lb)	240 mm/s (9.449"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")
X-LSQ450D	450 mm (17.716")	2.3 kg (5.071 lb)	185 µm (0.007283")	< 10 µm (< 0.000394")	< 75 µm (< 0.002953")	< 40 µm (< 0.001575")	1.984375 µm	35 N (7.8 lb)	18 N (4 lb)	(± 30%) 12 N (2.7 lb)	1000 mm/s (39.37"/s)	0.001212 mm/s (0.000048"/s)	0.001212 mm/s (0.000048"/s)	25.4 mm (1")
X-LSQ600A	600 mm (23.622")	2.9 kg (6.393 lb)	180 µm (0.007087")	< 2 µm (< 0.000079")	< 15 µm (< 0.000591")	< 60 µm (< 0.002362")	0.09921875 µm	275 N (61.7 lb)	100 N (22.4 lb)	Non-back-driving	28 mm/s (1.102"/s)	0.000061 mm/s (0.000002"/s)	0.000061 mm/s (0.000002"/s)	1.27 mm (0.05")
X-LSQ600B	600 mm (23.622")	2.9 kg (6.393 lb)	100 µm (0.003937")	< 3 µm (< 0.000118")	< 18 µm (< 0.000709")	< 60 µm (< 0.002362")	0.49609375 µm	120 N (26.9 lb)	75 N (16.8 lb)	(± 30%) 44 N (9.9 lb)	144 mm/s (5.669"/s)	0.000303 mm/s (0.000012"/s)	0.000303 mm/s (0.000012"/s)	6.35 mm (0.25")
X-LSQ600D	600 mm (23.622")	2.9 kg (6.393 lb)	230 µm (0.009055")	< 10 µm (< 0.000394")	< 75 µm (< 0.002953")	< 60 µm (< 0.002362")	1.984375 µm	35 N (7.8 lb)	18 N (4 lb)	(± 30%) 12 N (2.7 lb)	700 mm/s (27.559"/s)	0.001212 mm/s (0.000048"/s)	0.001212 mm/s (0.000048"/s)	25.4 mm (1")

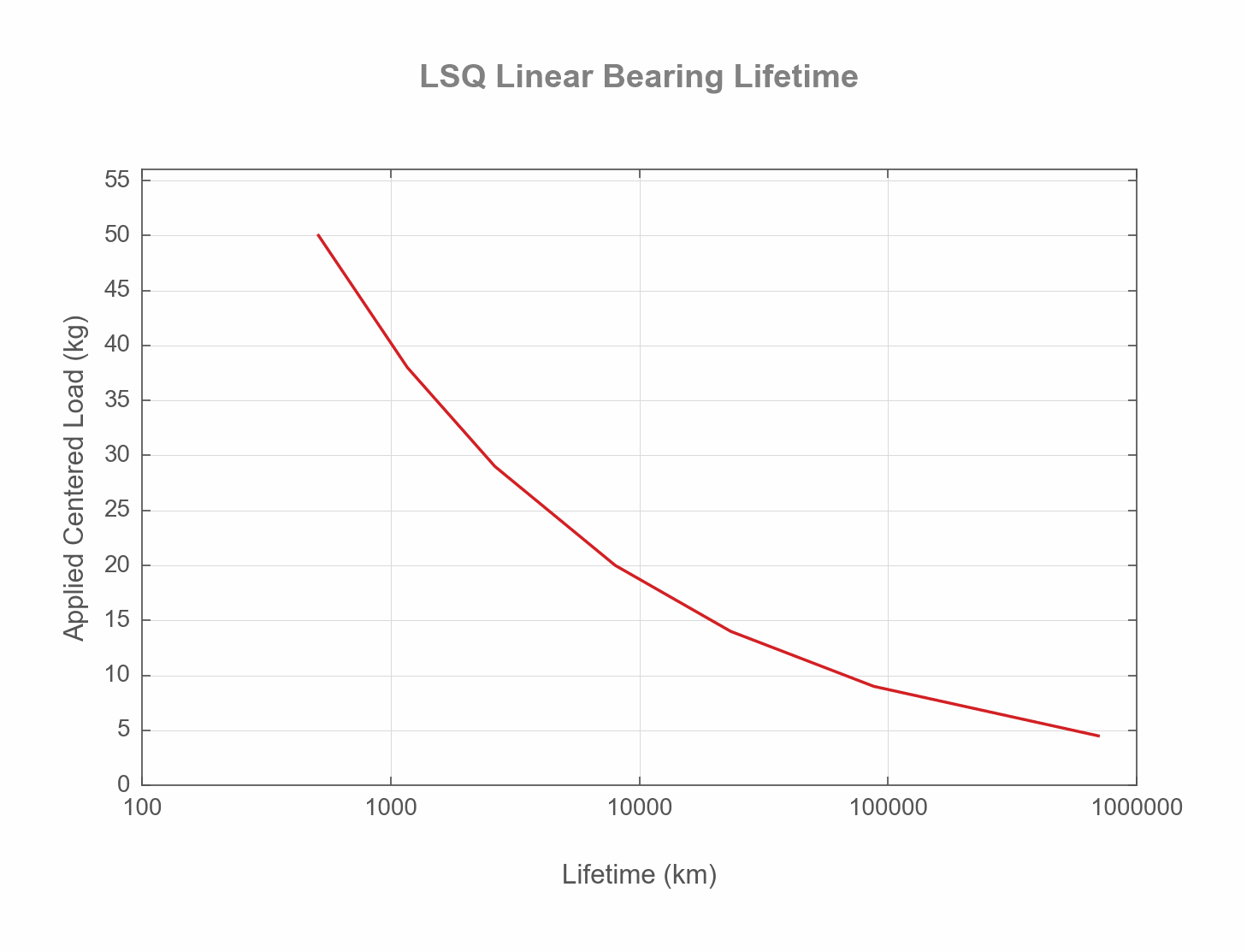

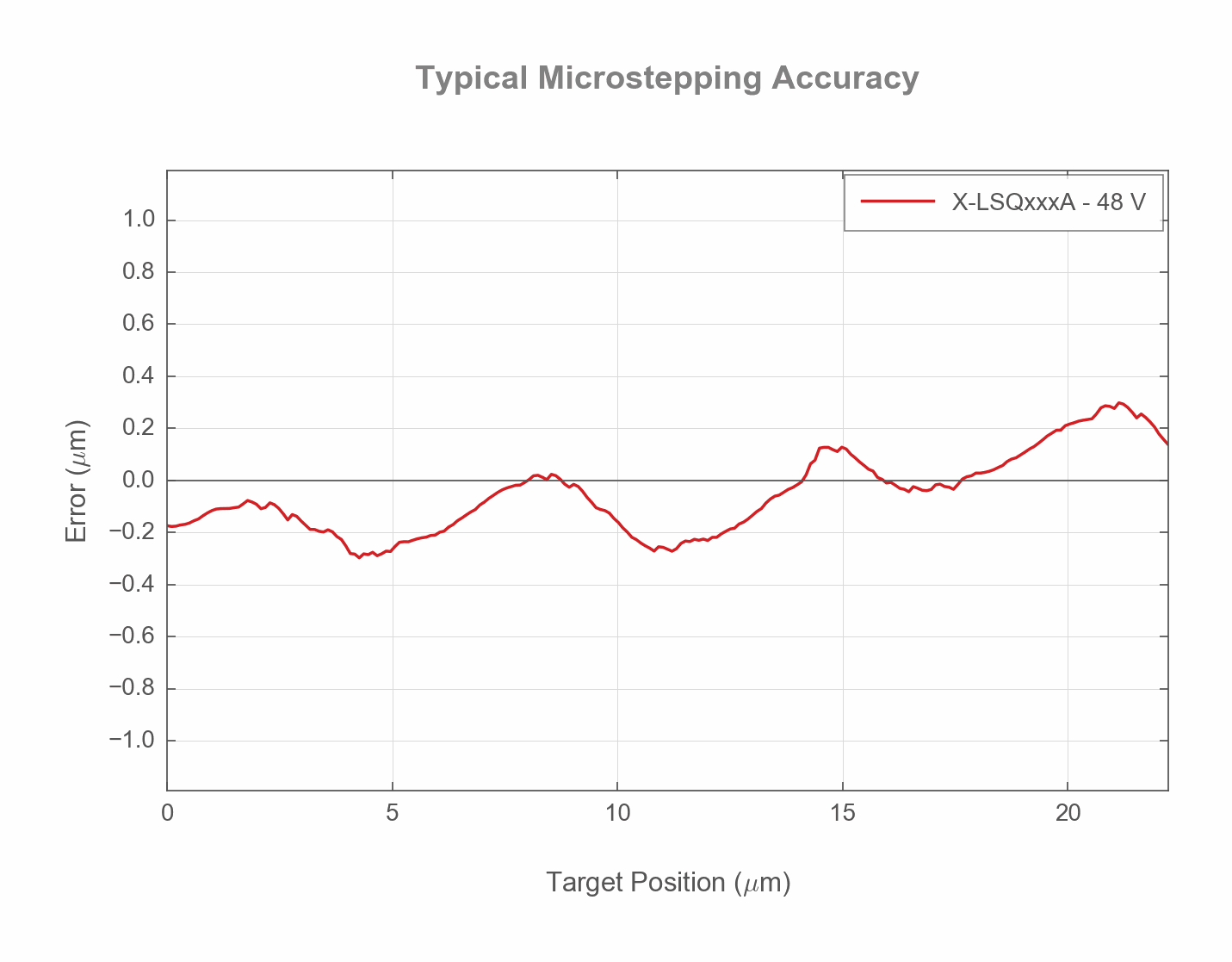

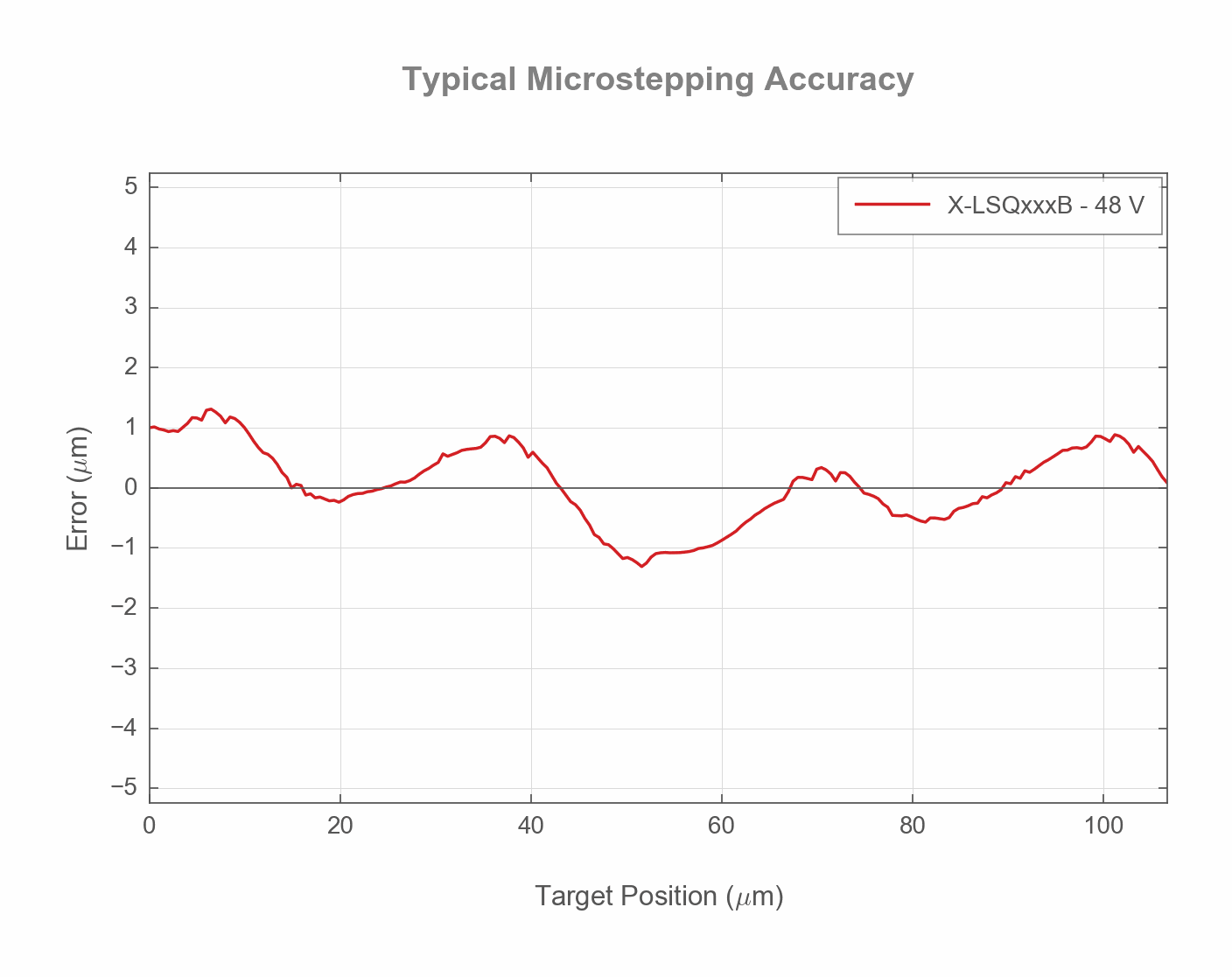

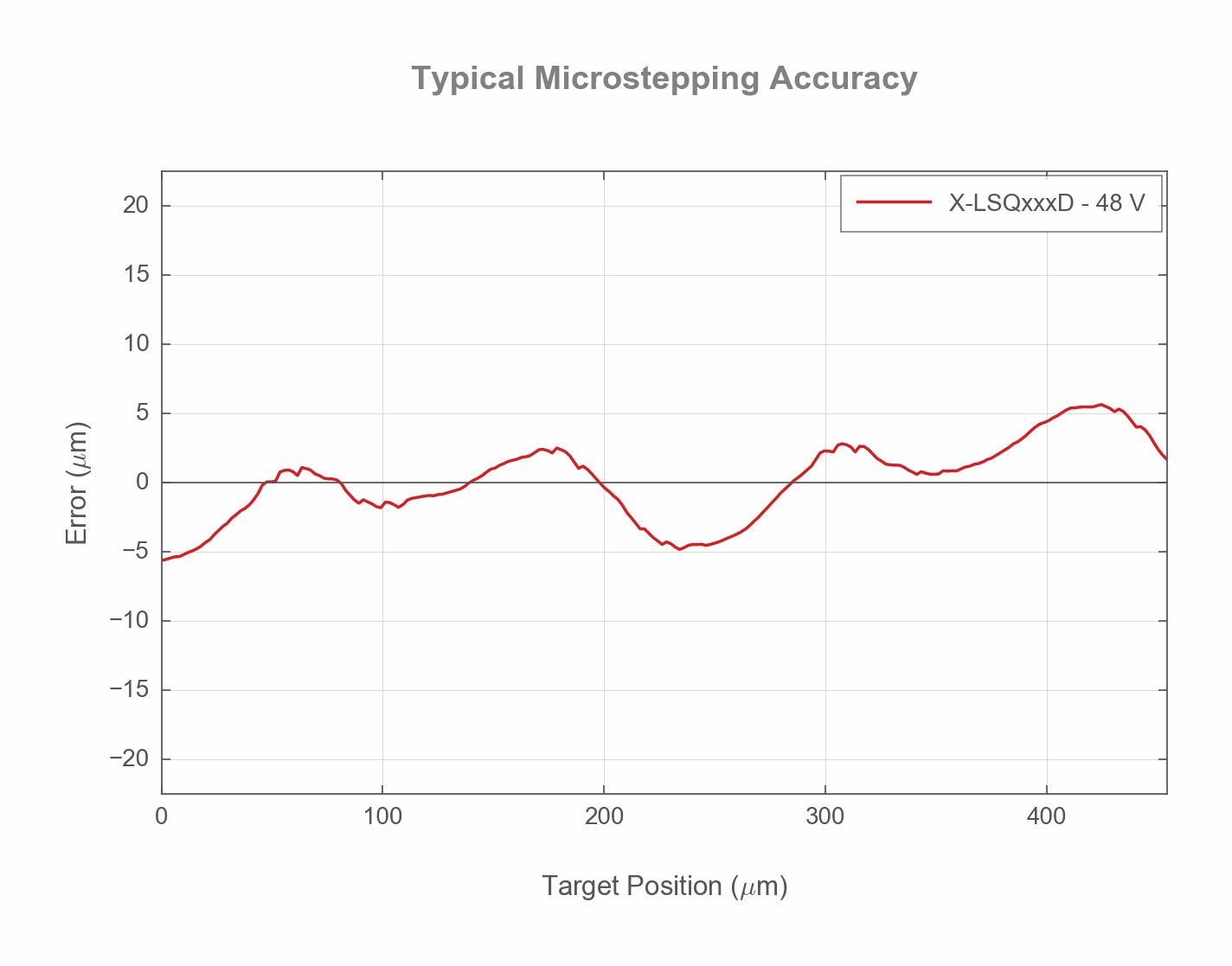

Specification Charts & Notes

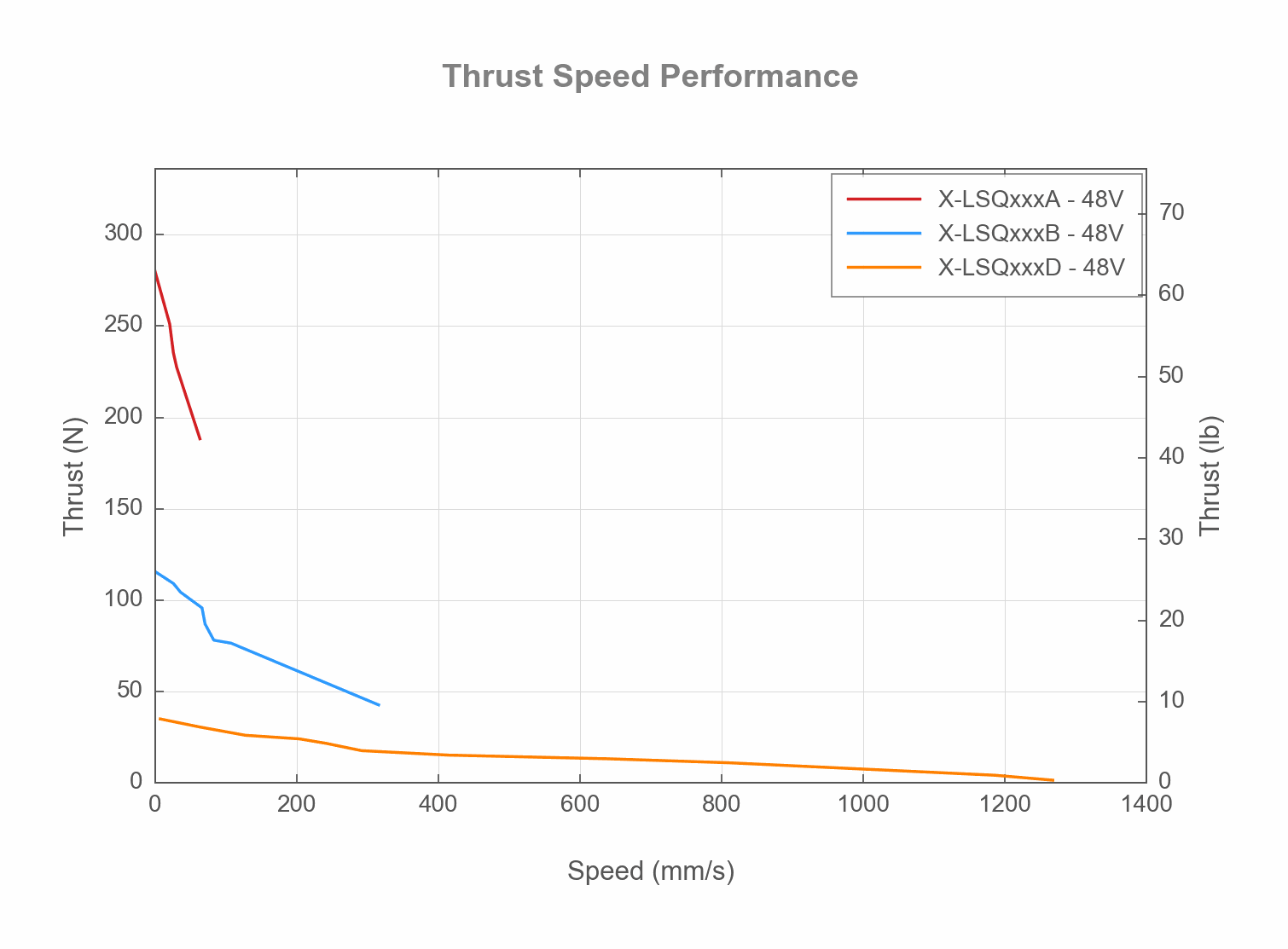

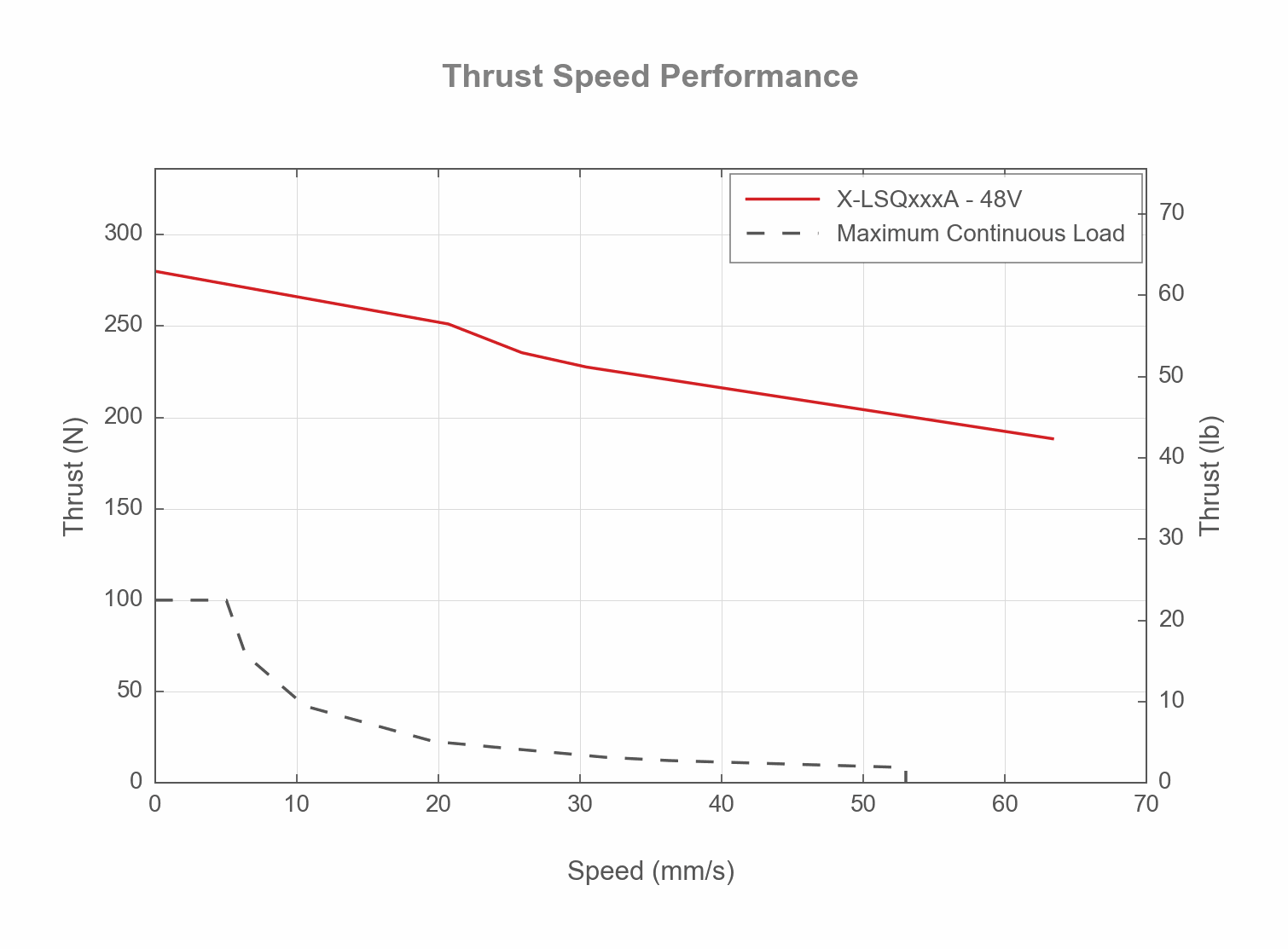

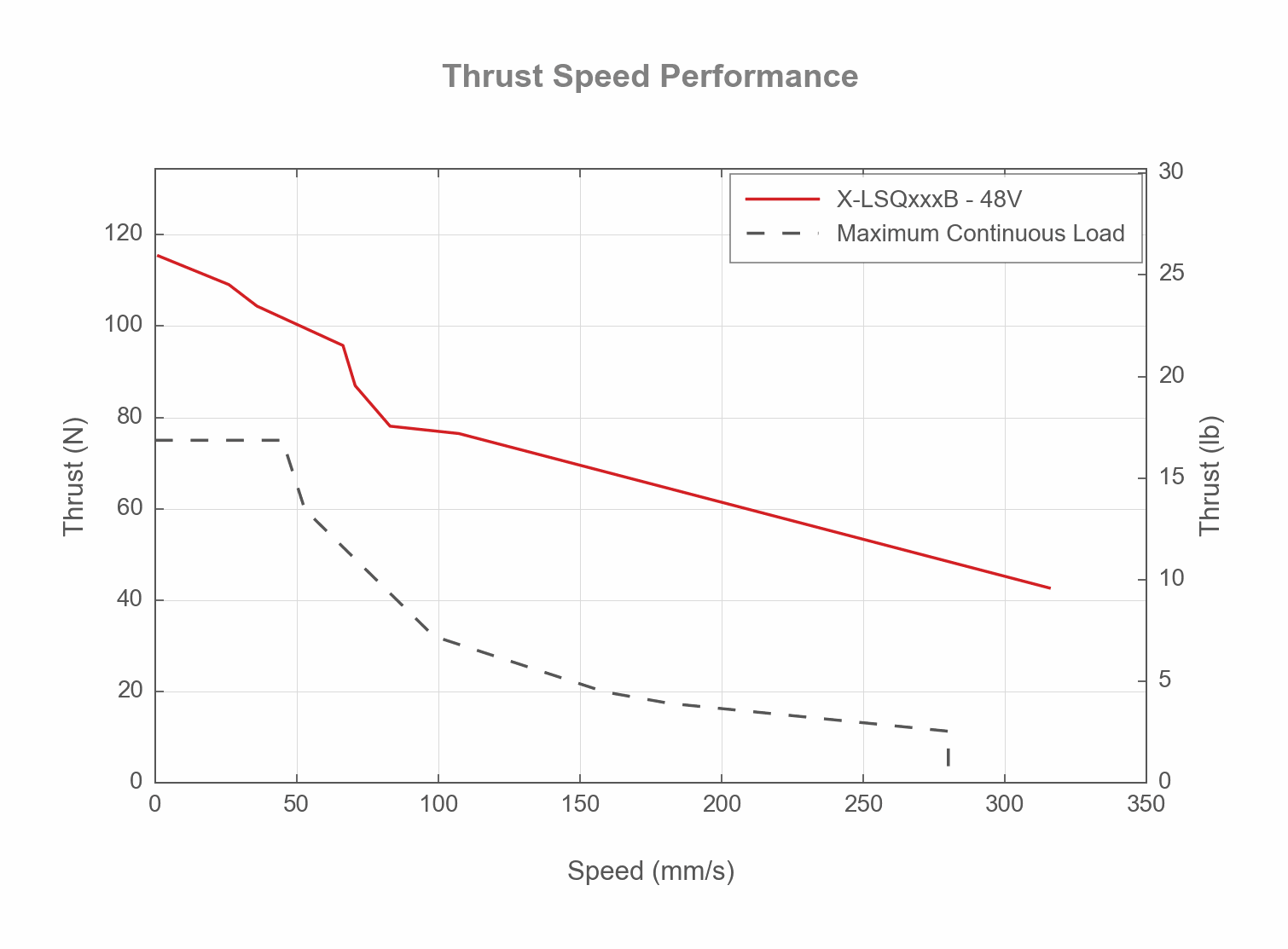

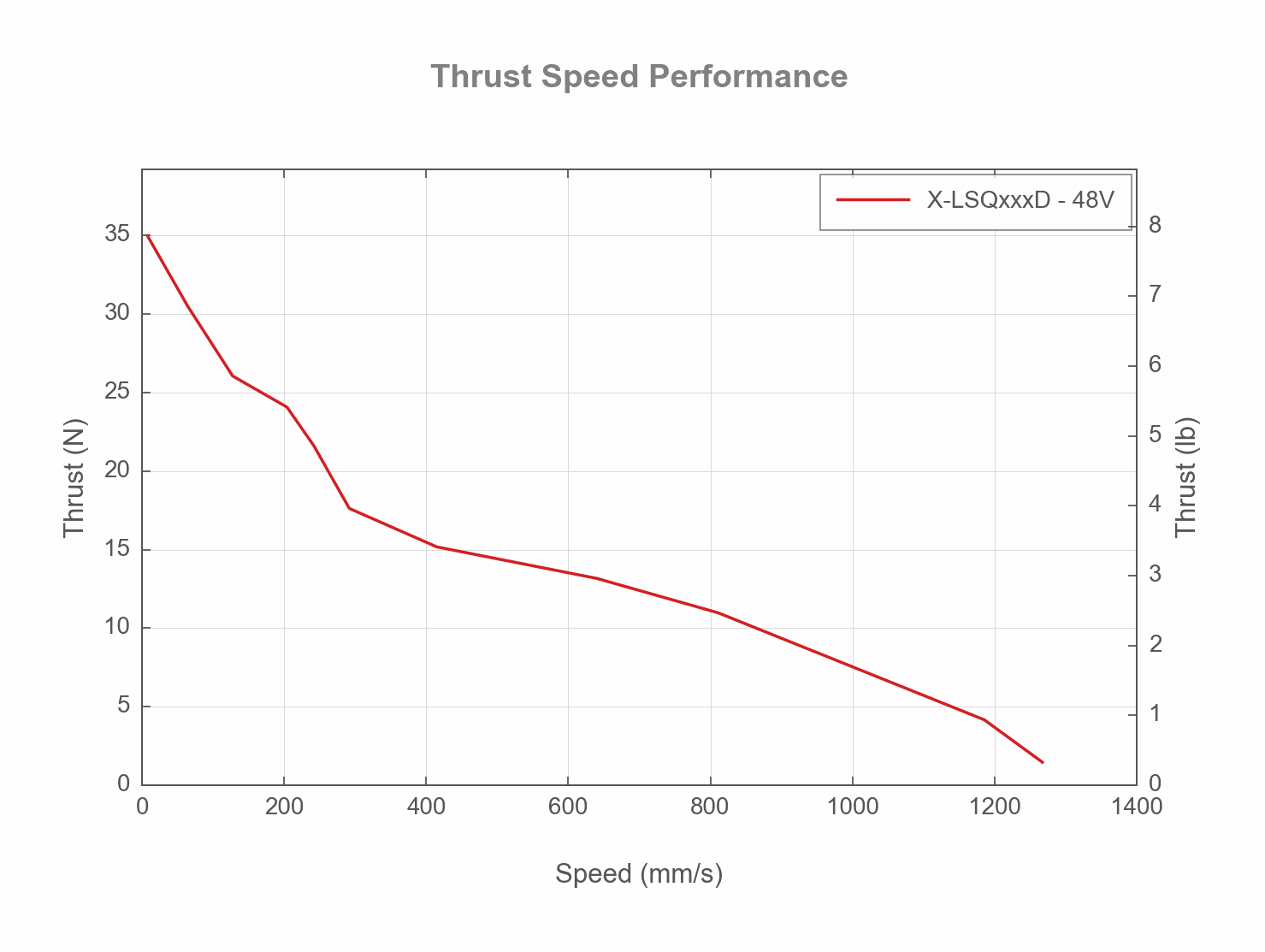

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
