LSQ Series
High-speed motorized linear stages
About This Series

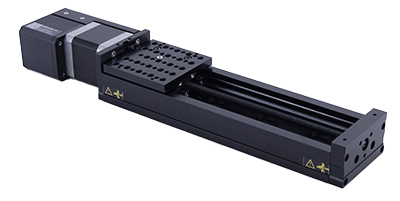

Zaber's LSQ Series products are computer-controlled, motorized linear stages with integrated stepper motors. These stages are capable of speeds up to 1 m/s and can easily be mounted in XY or XYZ configuration without additional hardware. The stages are designed to connect directly to our X-MCC Series universal motor controllers, or they can be used with any 2-phase stepper motor controller through the panel mount DB15 connector. Set up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the LSQ.
- Panel Mount DB15 with AutoDetect allows the LSQ to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
- Stage top supports Metric M6 threaded holes and Imperial 8-32 threaded holes.
- LSQ stages can be assembled in XY or XYZ configuration without additional hardware
- Integrated recirculating ball bearing guide provides exceptional lifetime.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
