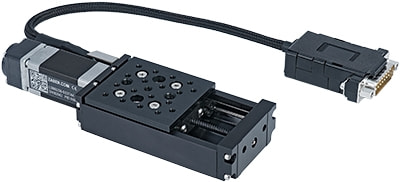

LSM-E Series
Miniature motorized linear stages with built-in motor encoders
About This Series
Zaber's LSM-E Series devices are computer-controlled, motorized linear stages with high thrust and speed capabilities and a very compact size. They are designed to interface with our X-MCC Series universal motor controllers, offering high resolution daisy-chainable operation. Set up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the LSM-E.
The built-in motor encoder allows closed-loop operation and slip/stall recovery features. At only 21 mm high, these miniature stages are excellent for applications where a small profile is required. The LSM-E's innovative design allows speeds up to 104 mm/s and loads up to 25 kg. The stages can be mounted in XY and XYZ configurations with no additional hardware.
- Built-in motor encoder encoder allows for easy slip/stall detection and recovery.
- 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
- Hall effect home sensor integrated into the stage.
- Stage top supports M3 and M6 threaded holes with M4 centre mount and can be removed for lower XY profile.
- 0.024" and 0.096" pitch lead screws with anti-backlash nuts allow the smallest incremental moves and faster motion.
- Travel lengths from 25 to 200 mm, with custom lengths available.
- Only 21 mm high and designed to fit into the smallest spaces.
- LSM-E stages can be assembled in XY or XYZ configuration without additional hardware.
- DB15 male, inline connector with AutoDetect allows the LSM-E to be easily connected to an X-MCC Series controller and ready to use without additional user input.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
