LRT-C Series

High load motorized linear stages with dust covers

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)CUSTOMIZATIONS

Download Datasheet

Series Specifications

Built-in ControllerNo Icon
Recommended Controller X-MCC (48 V) Recommended
AutoDetectYes Icon
Maximum Centered Load 2940 N (659.3 lb)
Maximum Moment (Roll) 120 N⋅m (88.6 ft⋅lb)
Maximum Moment (Pitch) 70 N⋅m (51.7 ft⋅lb)
Maximum Moment (Yaw) 70 N⋅m (51.7 ft⋅lb)
Guide Type Recirculating Ball Linear Guide
Vertical Runout < 10 µm (< 0.000394")
Horizontal Runout < 50 µm (< 0.001968")
Pitch 0.015° (0.262 mrad)
Roll 0.02° (0.349 mrad)
Yaw 0.03° (0.523 mrad)
Stiffness in Pitch 1400 N⋅m/° (12 µrad/N⋅m)
Stiffness in Roll 700 N⋅m/° (25 µrad/N⋅m)
Stiffness in Yaw 1200 N⋅m/° (15 µrad/N⋅m)
Motor Steps Per Rev 200
Motor Type Stepper (2 phase)
Motor Rated Current 3000 mA/phase
Motor Winding Resistance 0.53 ohms/phase
Inductance 2 mH/phase
Motor Connection D-sub 15
Default Resolution 1/64 of a step
Limit or Home Sensing Magnetic home sensor
Axes of Motion 1
Operating Temperature Range 0 to 50 °C
CE CompliantYes Icon
Vacuum CompatibleNo Icon

Part Specifications Comparison

Part NumberMicrostep Size (Default Resolution)Travel RangeAccuracy (unidirectional)RepeatabilityBacklashMaximum SpeedMinimum SpeedSpeed ResolutionPeak ThrustBack-driving Force*Maximum Continuous ThrustLinear Motion Per Motor RevMechanical Drive SystemWeight
LRT0100AL-CT3A 0.124023438 µm 100 mm (3.937") 25 µm (0.000984") < 4 µm (< 0.000157") < 12 µm (< 0.000472") 45 mm/s (1.772"/s) 0.000076 mm/s (0.000003"/s) 0.000076 mm/s (0.000003"/s) 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062") Precision lead screw 3.65 kg (8.047 lb)
LRT0100BL-CT3A 0.49609375 µm 100 mm (3.937") 25 µm (0.000984") < 4 µm (< 0.000157") < 45 µm (< 0.001772") 175 mm/s (6.890"/s) 0.000303 mm/s (0.000012"/s) 0.000303 mm/s (0.000012"/s) 600 N (134.6 lb)(± 30%) 420 N (94.2 lb) 600 N (134.6 lb) 6.35 mm (0.250") Precision lead screw 3.65 kg (8.047 lb)
LRT0100DL-CT3A 1.984375 µm 100 mm (3.937") 25 µm (0.000984") < 8 µm (< 0.000315") < 75 µm (< 0.002953") 700 mm/s (27.559"/s) 0.001212 mm/s (0.000048"/s) 0.001212 mm/s (0.000048"/s) 200 N (44.9 lb)(± 30%) 40 N (9.0 lb) 180 N (40.4 lb) 25.4 mm (1.000") Precision lead screw 3.65 kg (8.047 lb)
LRT0100HL-CT3A 0.390625 µm 100 mm (3.937") 45 µm (0.001772") < 4 µm (< 0.000157") < 25 µm (< 0.000984") 240 mm/s (9.449"/s) 0.000239 mm/s (0.000009"/s) 0.000239 mm/s (0.000009"/s) 1200 N (269.1 lb)(± 30%) 157 N (35.2 lb) 1200 N (269.1 lb) 5 mm (0.197") Precision ball screw 3.65 kg (8.047 lb)
LRT0250AL-CT3A 0.124023438 µm 250 mm (9.843") 63 µm (0.002480") < 4 µm (< 0.000157") < 12 µm (< 0.000472") 45 mm/s (1.772"/s) 0.000076 mm/s (0.000003"/s) 0.000076 mm/s (0.000003"/s) 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062") Precision lead screw 4.441 kg (9.791 lb)
LRT0250BL-CT3A 0.49609375 µm 250 mm (9.843") 63 µm (0.002480") < 4 µm (< 0.000157") < 45 µm (< 0.001772") 175 mm/s (6.890"/s) 0.000303 mm/s (0.000012"/s) 0.000303 mm/s (0.000012"/s) 600 N (134.6 lb)(± 30%) 420 N (94.2 lb) 600 N (134.6 lb) 6.35 mm (0.250") Precision lead screw 4.441 kg (9.791 lb)
LRT0250DL-CT3A 1.984375 µm 250 mm (9.843") 63 µm (0.002480") < 8 µm (< 0.000315") < 75 µm (< 0.002953") 700 mm/s (27.559"/s) 0.001212 mm/s (0.000048"/s) 0.001212 mm/s (0.000048"/s) 200 N (44.9 lb)(± 30%) 40 N (9.0 lb) 180 N (40.4 lb) 25.4 mm (1.000") Precision lead screw 4.441 kg (9.791 lb)
LRT0250HL-CT3A 0.390625 µm 250 mm (9.843") 113 µm (0.004449") < 4 µm (< 0.000157") < 25 µm (< 0.000984") 240 mm/s (9.449"/s) 0.000239 mm/s (0.000009"/s) 0.000239 mm/s (0.000009"/s) 1200 N (269.1 lb)(± 30%) 157 N (35.2 lb) 1200 N (269.1 lb) 5 mm (0.197") Precision ball screw 4.441 kg (9.791 lb)
LRT0500AL-CT3A 0.124023438 µm 500 mm (19.685") 125 µm (0.004921") < 4 µm (< 0.000157") < 12 µm (< 0.000472") 45 mm/s (1.772"/s) 0.000076 mm/s (0.000003"/s) 0.000076 mm/s (0.000003"/s) 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062") Precision lead screw 5.758 kg (12.694 lb)
LRT0500BL-CT3A 0.49609375 µm 500 mm (19.685") 125 µm (0.004921") < 4 µm (< 0.000157") < 45 µm (< 0.001772") 175 mm/s (6.890"/s) 0.000303 mm/s (0.000012"/s) 0.000303 mm/s (0.000012"/s) 600 N (134.6 lb)(± 30%) 420 N (94.2 lb) 600 N (134.6 lb) 6.35 mm (0.250") Precision lead screw 5.758 kg (12.694 lb)
LRT0500DL-CT3A 1.984375 µm 500 mm (19.685") 125 µm (0.004921") < 8 µm (< 0.000315") < 75 µm (< 0.002953") 700 mm/s (27.559"/s) 0.001212 mm/s (0.000048"/s) 0.001212 mm/s (0.000048"/s) 200 N (44.9 lb)(± 30%) 40 N (9.0 lb) 180 N (40.4 lb) 25.4 mm (1.000") Precision lead screw 5.758 kg (12.694 lb)
LRT0500HL-CT3A 0.390625 µm 500 mm (19.685") 225 µm (0.008858") < 4 µm (< 0.000157") < 25 µm (< 0.000984") 240 mm/s (9.449"/s) 0.000239 mm/s (0.000009"/s) 0.000239 mm/s (0.000009"/s) 1200 N (269.1 lb)(± 30%) 157 N (35.2 lb) 1200 N (269.1 lb) 5 mm (0.197") Precision ball screw 5.758 kg (12.694 lb)
LRT0750AL-CT3A 0.124023438 µm 750 mm (29.528") 188 µm (0.007402") < 4 µm (< 0.000157") < 12 µm (< 0.000472") 45 mm/s (1.772"/s) 0.000076 mm/s (0.000003"/s) 0.000076 mm/s (0.000003"/s) 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062") Precision lead screw 7.076 kg (15.600 lb)
LRT0750BL-CT3A 0.49609375 µm 750 mm (29.528") 188 µm (0.007402") < 4 µm (< 0.000157") < 45 µm (< 0.001772") 175 mm/s (6.890"/s) 0.000303 mm/s (0.000012"/s) 0.000303 mm/s (0.000012"/s) 600 N (134.6 lb)(± 30%) 420 N (94.2 lb) 600 N (134.6 lb) 6.35 mm (0.250") Precision lead screw 7.076 kg (15.600 lb)
LRT0750DL-CT3A 1.984375 µm 750 mm (29.528") 188 µm (0.007402") < 8 µm (< 0.000315") < 75 µm (< 0.002953") 700 mm/s (27.559"/s) 0.001212 mm/s (0.000048"/s) 0.001212 mm/s (0.000048"/s) 200 N (44.9 lb)(± 30%) 40 N (9.0 lb) 180 N (40.4 lb) 25.4 mm (1.000") Precision lead screw 7.076 kg (15.600 lb)
LRT0750HL-CT3A 0.390625 µm 750 mm (29.528") 338 µm (0.013307") < 4 µm (< 0.000157") < 25 µm (< 0.000984") 150 mm/s (5.905"/s) 0.000239 mm/s (0.000009"/s) 0.000239 mm/s (0.000009"/s) 1200 N (269.1 lb)(± 30%) 157 N (35.2 lb) 1200 N (269.1 lb) 5 mm (0.197") Precision ball screw 7.076 kg (15.600 lb)
LRT1000AL-CT3A 0.124023438 µm 1000 mm (39.370") 250 µm (0.009842") < 4 µm (< 0.000157") < 12 µm (< 0.000472") 28 mm/s (1.102"/s) 0.000076 mm/s (0.000003"/s) 0.000076 mm/s (0.000003"/s) 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062") Precision lead screw 8.393 kg (18.503 lb)
LRT1000BL-CT3A 0.49609375 µm 1000 mm (39.370") 250 µm (0.009842") < 4 µm (< 0.000157") < 45 µm (< 0.001772") 120 mm/s (4.724"/s) 0.000303 mm/s (0.000012"/s) 0.000303 mm/s (0.000012"/s) 600 N (134.6 lb)(± 30%) 420 N (94.2 lb) 600 N (134.6 lb) 6.35 mm (0.250") Precision lead screw 8.393 kg (18.503 lb)
LRT1000DL-CT3A 1.984375 µm 1000 mm (39.370") 250 µm (0.009842") < 8 µm (< 0.000315") < 75 µm (< 0.002953") 500 mm/s (19.685"/s) 0.001212 mm/s (0.000048"/s) 0.001212 mm/s (0.000048"/s) 200 N (44.9 lb)(± 30%) 40 N (9.0 lb) 180 N (40.4 lb) 25.4 mm (1.000") Precision lead screw 8.393 kg (18.503 lb)
LRT1000HL-CT3A 0.390625 µm 1000 mm (39.370") 450 µm (0.017716") < 4 µm (< 0.000157") < 25 µm (< 0.000984") 95 mm/s (3.740"/s) 0.000239 mm/s (0.000009"/s) 0.000239 mm/s (0.000009"/s) 1200 N (269.1 lb)(± 30%) 157 N (35.2 lb) 1200 N (269.1 lb) 5 mm (0.197") Precision ball screw 8.393 kg (18.503 lb)
LRT1500AL-CT3A 0.124023438 µm 1500 mm (59.055") 375 µm (0.014764") < 4 µm (< 0.000157") < 12 µm (< 0.000472") 13 mm/s (0.512"/s) 0.000076 mm/s (0.000003"/s) 0.000076 mm/s (0.000003"/s) 1200 N (269.1 lb) Non-back-driving 1200 N (269.1 lb) 1.5875 mm (0.062") Precision lead screw 11.028 kg (24.313 lb)
LRT1500BL-CT3A 0.49609375 µm 1500 mm (59.055") 375 µm (0.014764") < 4 µm (< 0.000157") < 45 µm (< 0.001772") 55 mm/s (2.165"/s) 0.000303 mm/s (0.000012"/s) 0.000303 mm/s (0.000012"/s) 600 N (134.6 lb)(± 30%) 420 N (94.2 lb) 600 N (134.6 lb) 6.35 mm (0.250") Precision lead screw 11.028 kg (24.313 lb)
LRT1500DL-CT3A 1.984375 µm 1500 mm (59.055") 375 µm (0.014764") < 8 µm (< 0.000315") < 75 µm (< 0.002953") 225 mm/s (8.858"/s) 0.001212 mm/s (0.000048"/s) 0.001212 mm/s (0.000048"/s) 200 N (44.9 lb)(± 30%) 40 N (9.0 lb) 180 N (40.4 lb) 25.4 mm (1.000") Precision lead screw 11.028 kg (24.313 lb)

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

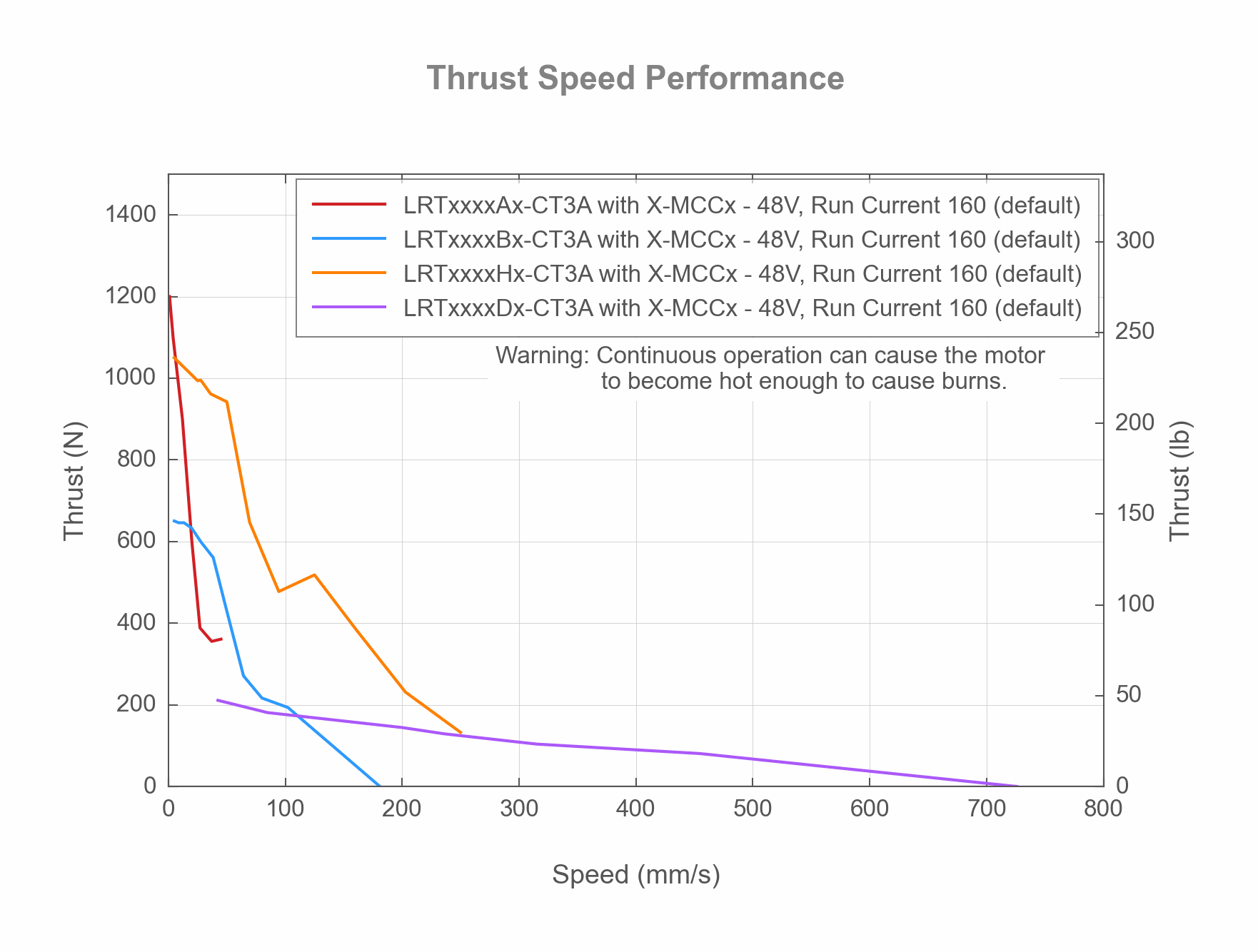

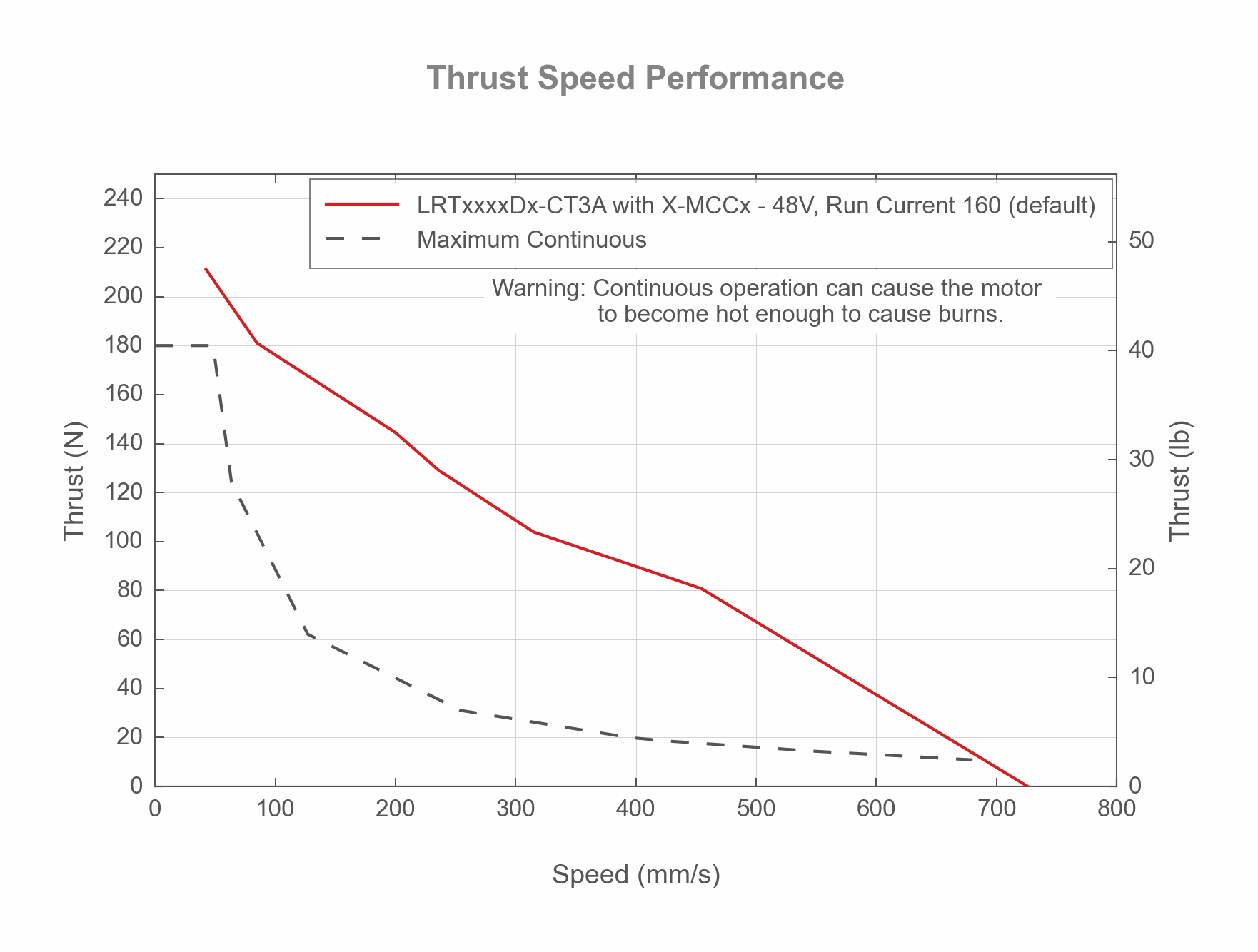

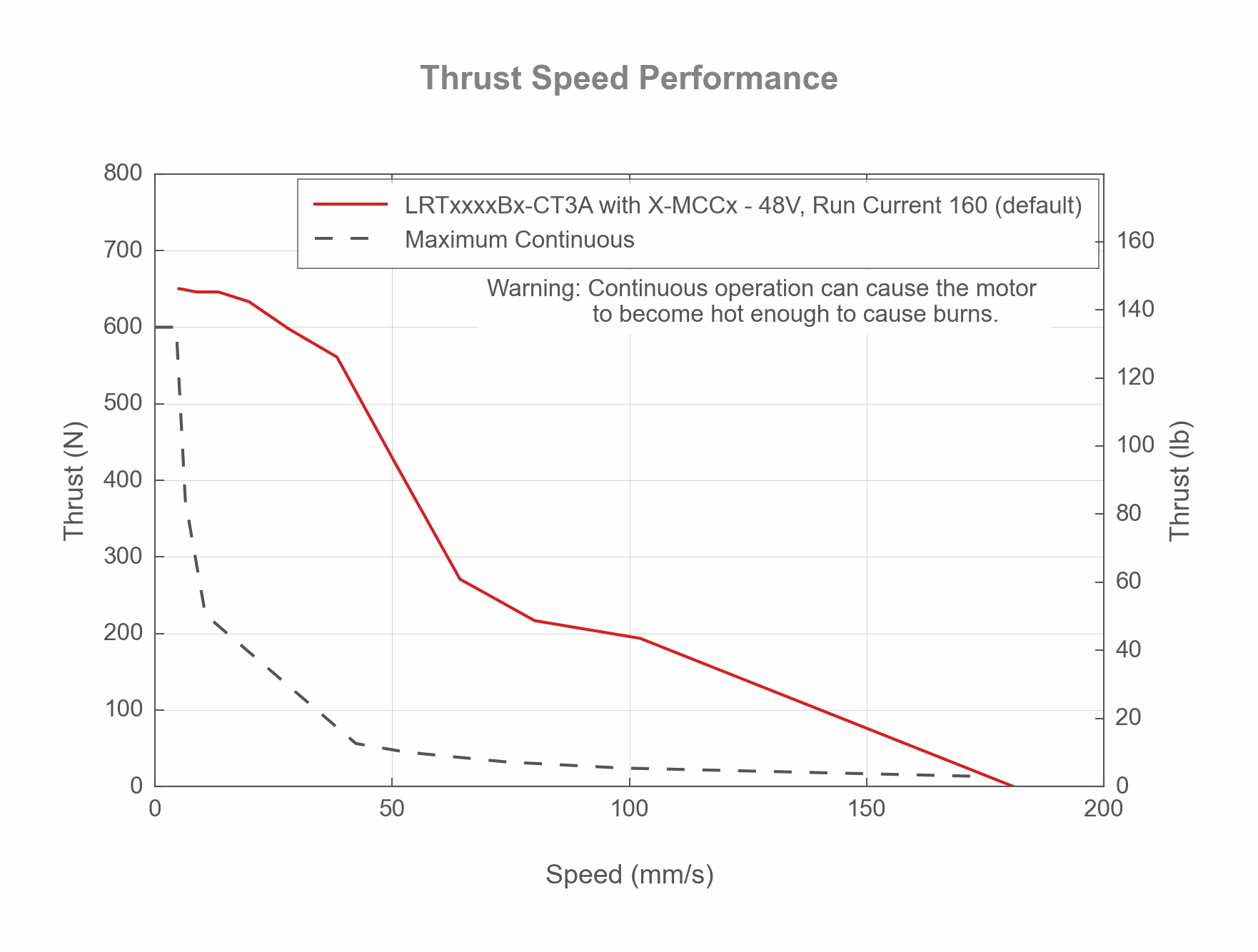

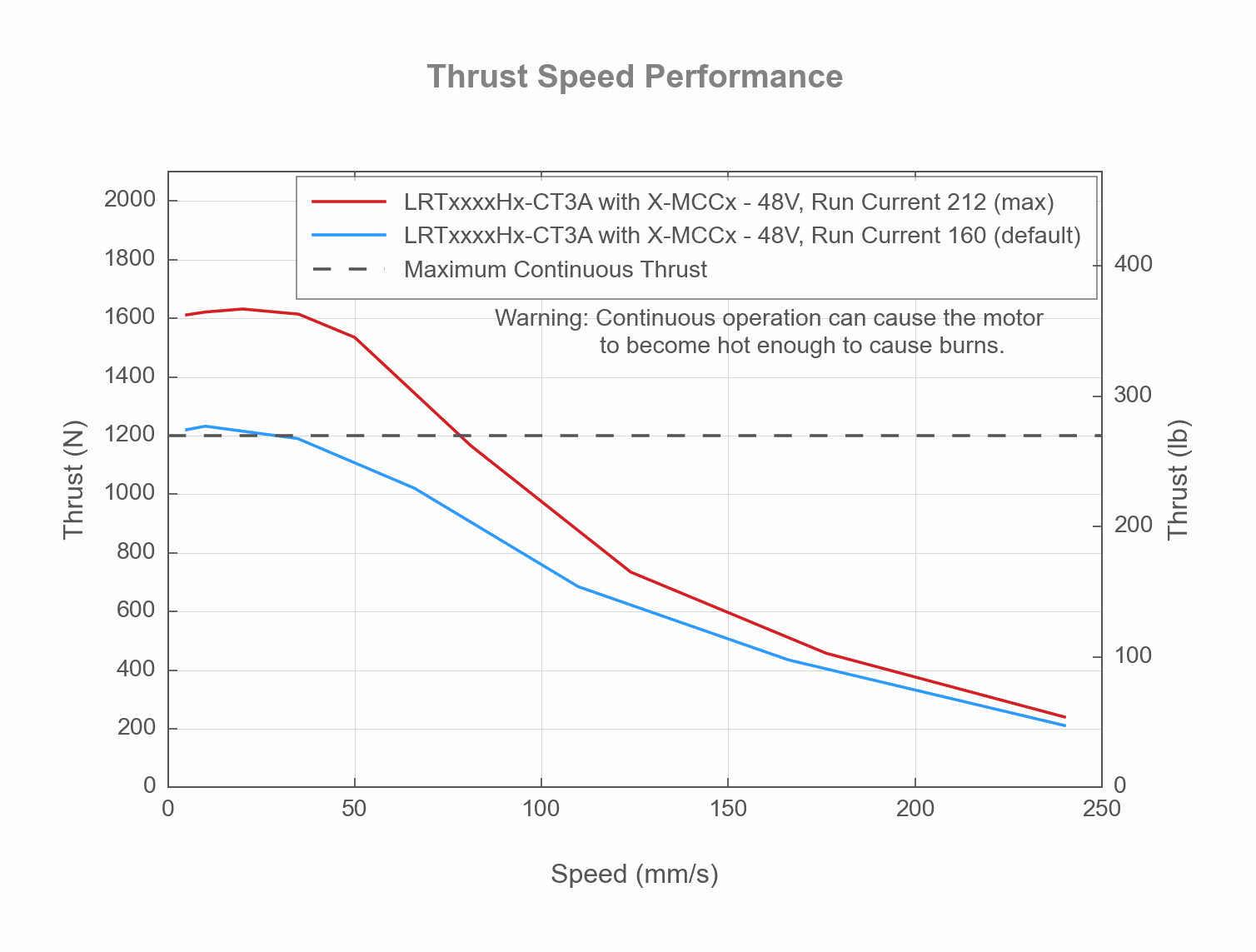

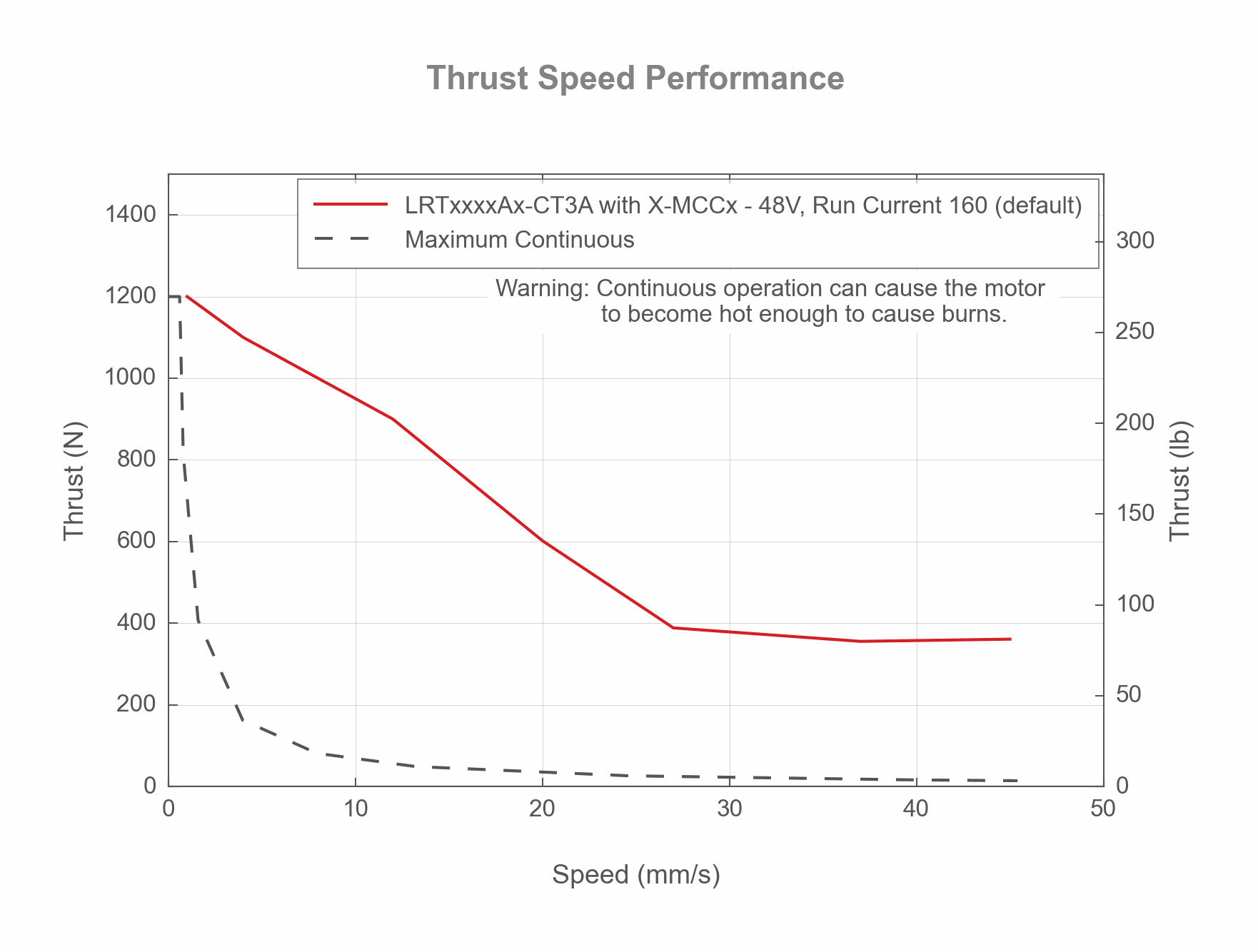

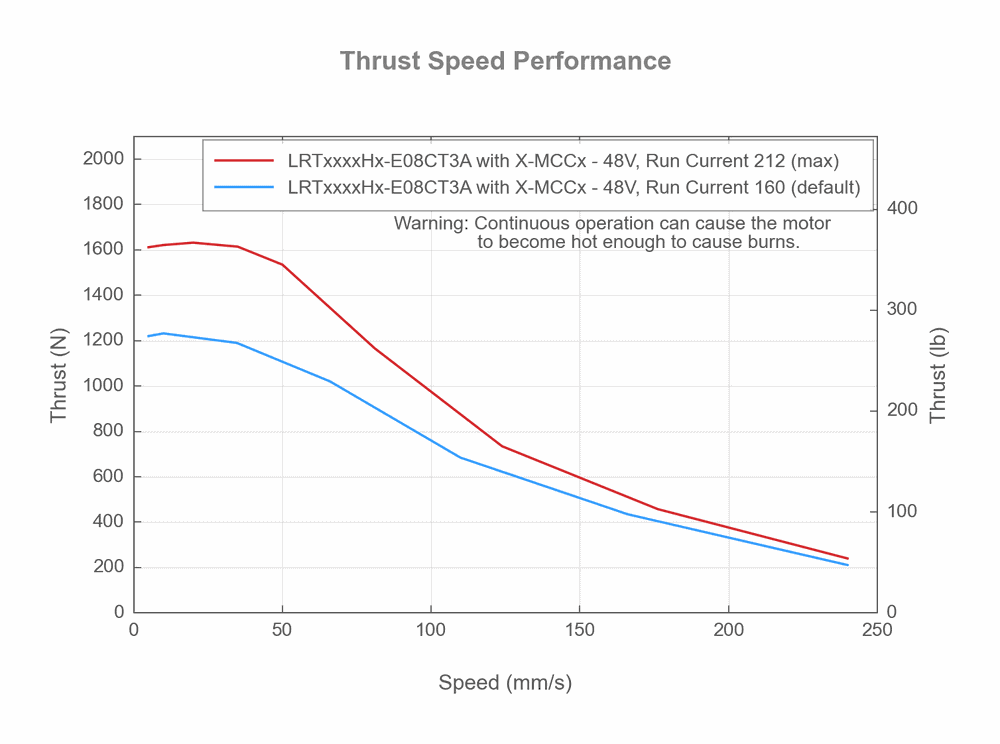

Thrust Speed Performance

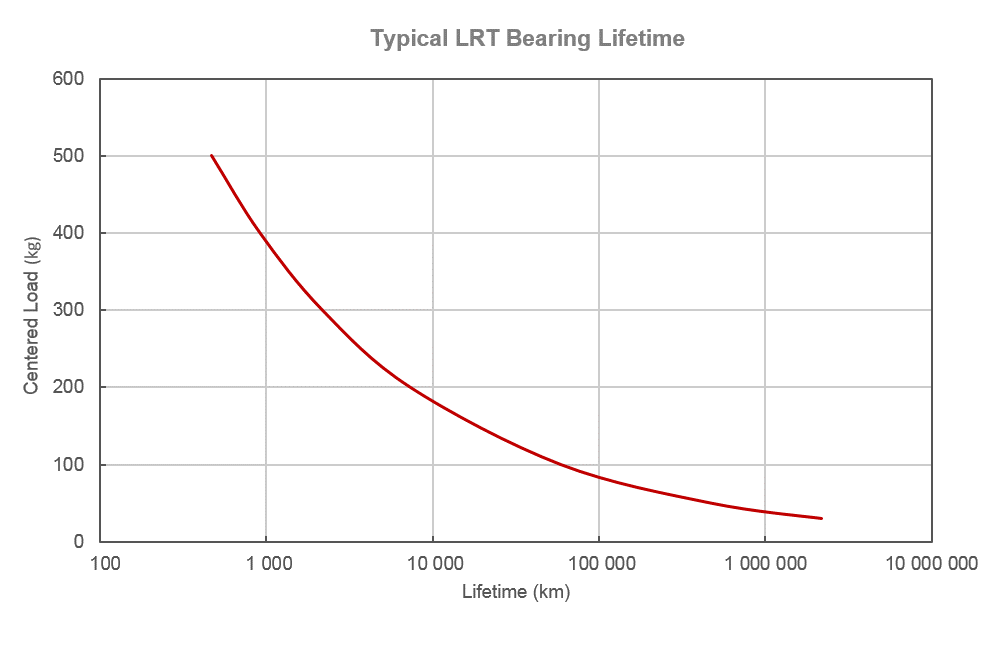

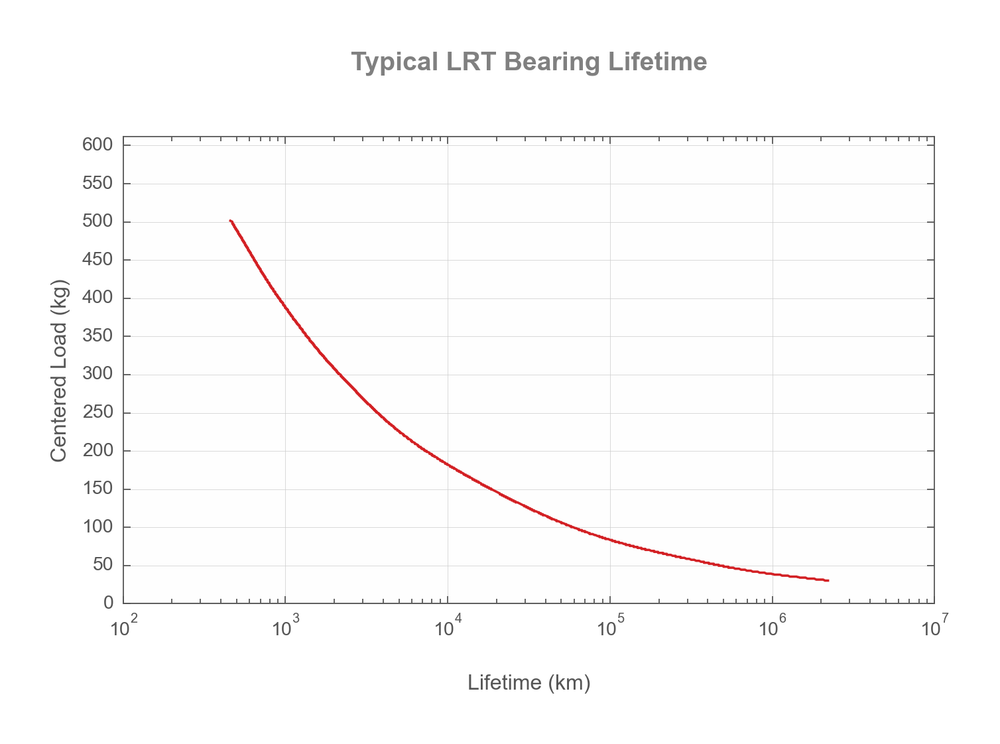

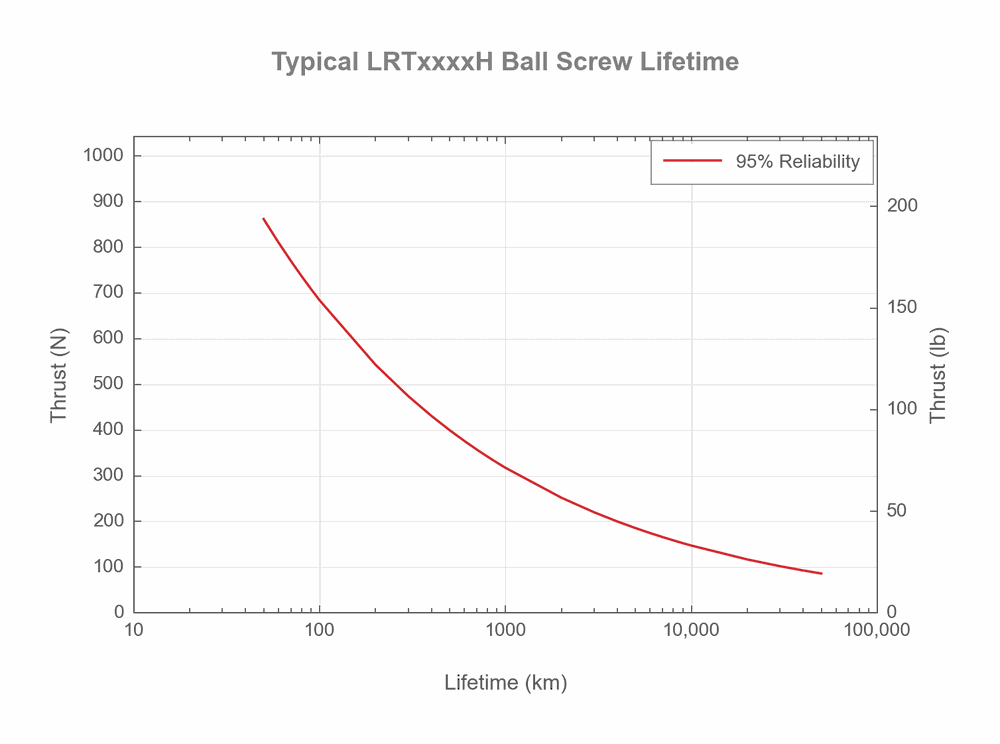

Bearing Lifetime
