LDQ-AE Series

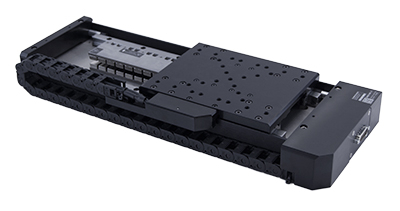

High speed, precision linear motor stages with built-in linear encoders
About This Series
Zaber's LDQ-AE Series devices are motorized linear motor stages with high precision and speed capabilities. The built-in linear encoder allows closed-loop servo positioning. The LDQ-AE's innovative design allows speeds up to 1.5 m/s and a minimum incremental move of 25 nm.
The stages are designed to connect directly to our X-MCC using a single cable. Set-up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the LDQ-AE.
- Built-in analog encoder can be interpolated down to 1 nm.
- Travel lengths from 75 to 1000 mm, with custom lengths available.
- Innovative design allows for superior speed & precision; up to 1.5 m/s speed & 25 nm minimum incremental move.
- Stage top supports metric M6 threaded holes.
- Multiple LDQ stages can be assembled in XY configurations without additional hardware.
- Panel Mount DB26 with AutoDetect allows the LDQ-AE to be easily connected to an X-MCC Series controller and ready to use without additional user input.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
