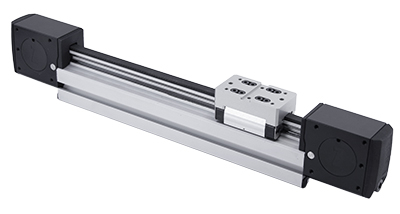

LC40 Series
T-slot extrusion compatible linear guides, motor-ready
About This Series
Zaber's LC40 Series of linear guides are recirculating ball bearing guides designed to interface seamlessly with most 40 mm T-slot extrusion framing systems and accessories. Hardened bearing steel rails are mated with high strength aluminum extrusion to give these guides excellent stiffness, straightness, and load capacity. The LC40 Series of linear guides is available with a synchronous belt drive or as a passive guide rail. These guides are available in 50 mm travel increments up to 3500 mm.
For an all-in-one package including motor and controller, see the LC40B-KM Series which combines an LC40B belt-driven linear guide with an X-NMS-E motor with integrated controller. LC40B-KM and LC40 products are designed to work in unison, providing a flexible platform for creating custom automated motion systems.
- Recirculating ball bearing carriage for rigid linear travel.
- Compatible with NEMA 23 frame size motors in both right and left hand configurations.
- Optional integrated belt drive.
- Hardened steel rails for high load and lifetime.
- 8 mm T-slots on 3 sides.
- Travel lengths up to 3500 mm.
- Single carriage or dual carriage (N2 version) for additional load capacity and stiffness.
