DMQ-AE Series
Direct drive linear stages with built-in linear encoders
Image is representative of the DMQ-AE Series and may not match the selected variant.

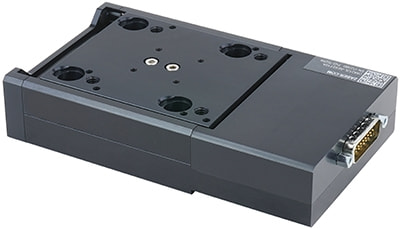

DMQ12L-AE55T10A
Direct Drive Linear Stage | 12 mm Travel
Starting Price: $4,095
Standard Lead Time: 1-5 Days
Purchase Options
Stand-alone
Total Price
$4,095 (USD) *
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
DMQ12L-AE55T10A Specifications
| Built-in Controller |  |
| Recommended Controller | X-MCC (48 V) Recommended |
| AutoDetect |  |
| Travel Range | 12 mm (0.472") |

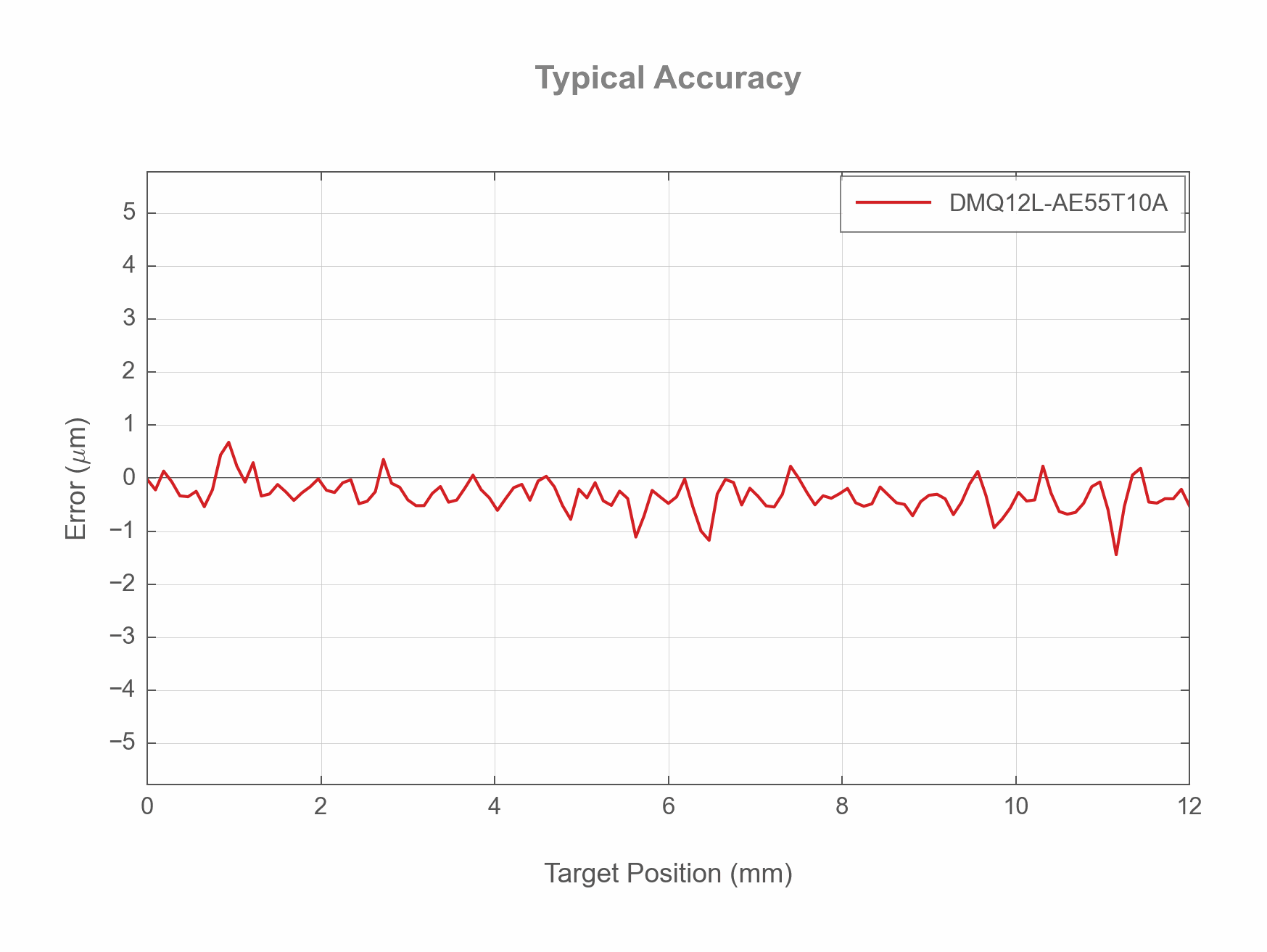

| Accuracy (unidirectional) | 4 µm (0.000157") |
| Repeatability | < 0.5 µm (< 0.000020") |
| Minimum Incremental Move | 200 nm |
| Maximum Acceleration | 245 m/s2 (24.97 g) |
| Maximum Speed | 1400 mm/s (55.118"/s) |
| Minimum Speed | 0.61 nm/s |
| Speed Resolution | 0.61 nm/s |
| Encoder Type | Linear analog encoder |
| Encoder Count Size | 1 nm |

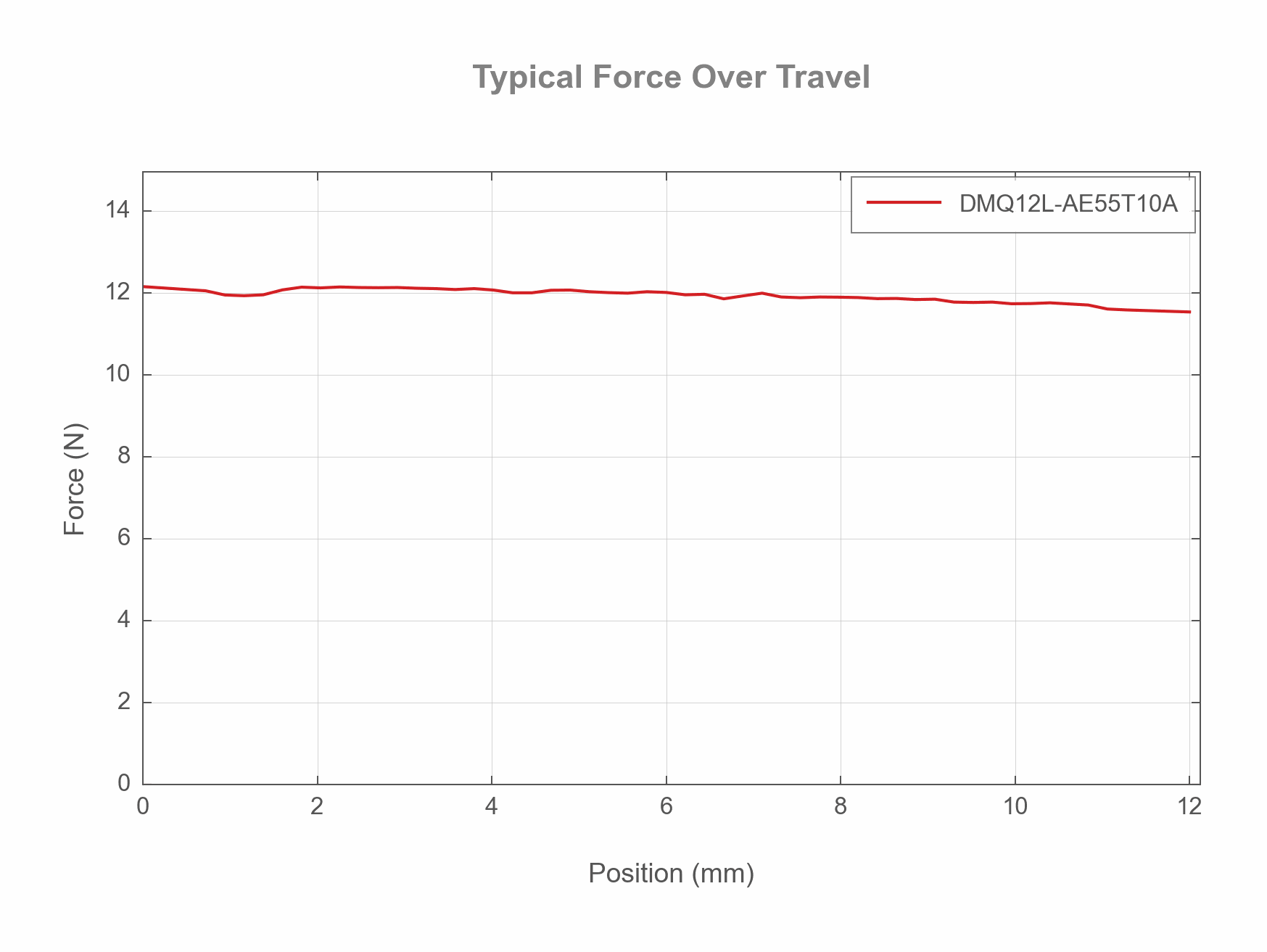

| Peak Thrust | 26 N (5.8 lb) |
| Maximum Continuous Thrust | 12 N (2.7 lb) |
| Maximum Centered Load | 100 N (22.4 lb) |
| Maximum Moment (Roll) | 320 N⋅cm (453.2 oz⋅in) |
| Maximum Moment (Pitch) | 120 N⋅cm (169.9 oz⋅in) |
| Maximum Moment (Yaw) | 120 N⋅cm (169.9 oz⋅in) |
| Guide Type | Crossed-Roller Bearing |
| Vertical Runout | < 6 µm (< 0.000236") |
| Horizontal Runout | < 5 µm (< 0.000197") |

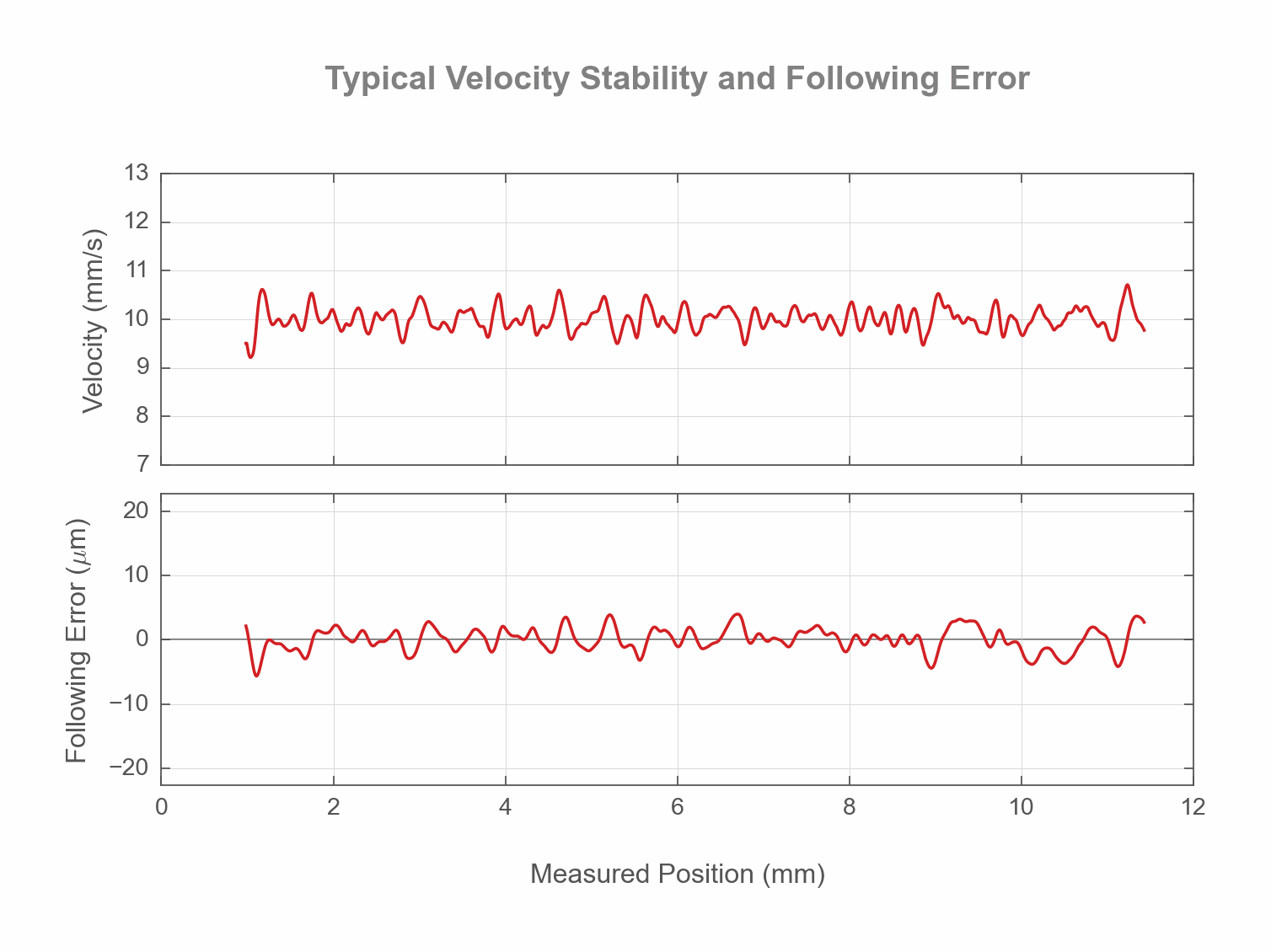

| Typical Velocity Stability | ± 4.7% at 10 mm/s with a 0.38 kg payload |
| Pitch | 0.01° (0.174 mrad) |
| Roll | 0.01° (0.174 mrad) |
| Yaw | 0.01° (0.174 mrad) |
| Stiffness in Pitch | 50 N⋅m/° (349 µrad/N⋅m) |
| Stiffness in Roll | 70 N⋅m/° (249 µrad/N⋅m) |
| Stiffness in Yaw | 85 N⋅m/° (205 µrad/N⋅m) |
| Motor Type | Voice Coil Linear Actuator |
| Force Constant | 12.6 N/A (2.8 lbs/A) |
| Motor Connection | D-sub 26 |
| Mechanical Drive System | Moving Coil, Direct Drive |
| Limit or Home Sensing | Optical Index Mark |
| Axes of Motion | 1 |
| LED Indicators | |
| Mounting Interface | M6 and M3 threaded holes |
| Moving Mass | 0.095 kg (0.209 lbs) |
| Operating Temperature Range | 0-50 °C |
| CE Compliant | |
| Vacuum Compatible | |
| Weight | 0.8 kg (1.764 lb) |
