DMQ-AE Series
Direct drive linear stages with built-in linear encoders
About This Series

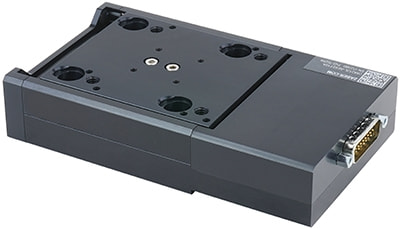

Zaber's DMQ-AE Series devices are computer-controlled, motorized linear stages with high acceleration, precision, and accuracy in a compact package. At only 30 mm tall, they are excellent when a low profile is required. The innovative moving-coil actuator design has a very flat force-vs-position profile for applications requiring smooth force output throughout travel.
The technology also allows for a minimal moving mass for rapid acceleration, and no exposed moving cables for a high duty-cycle. The force output allows the light carriage to reach speeds up to 1400 mm/s within the 12mm travel.
The built-in analog linear encoder is interpolated to 1 nm resolution and allows closed-loop servo control of position and velocity. Switch to force control mode for applications requiring direct control of the force output of the stage instead of position or velocity based control.
The stages are designed to connect directly to our X-MCC using a single cable. Set-up is easy with AutoDetect; once connected, the X-MCC controller will automatically detect and configure the DMQ-AE.
- Direct-drive voice coil actuator provides 12 N continuous, up to 26 N peak thrust.
- Analog linear encoder interpolated to 1 nm resolution provides smooth closed loop control.
- Servo-positioning comes pre-tuned, and control parameters can be adjusted on the fly.
- Crossed roller bearings provide exceptionally smooth movement and virtually eliminate wear.
- Innovative coil design drives accelerations of up to 15 G with a flat force profile.
- Stage top supports metric M3 and M6 threaded holes along with dowel pin alignment features.
- Panel Mount DB26 with AutoDetect allows the DMQ-AE to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- Servo tuning parameters can automatically be optimized for any payload mass with our free software, when paired with the X-MCC controller family. Parameters can be adjusted on the fly.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
