NA Series

Electric linear actuators

Series Specifications

Built-in Controller
Recommended Controller	MCC (48 V) Recommended
AutoDetect
Encoder Type
Motor Temperature Rise	75 °C
Motor Steps Per Rev	200
Motor Type	Stepper (2 phase)
Motor Connection	D-sub 15
Default Resolution	1/64 of a step
Mechanical Drive System	Precision lead screw
Limit or Home Sensing	Magnetic home sensor
Axes of Motion	1
CE Compliant
Vacuum Compatible

Part Specifications Comparison

Part Number	Microstep Size (Default Resolution)	Travel Range	Accuracy (unidirectional)	Repeatability	Backlash	Maximum Speed	Minimum Speed	Speed Resolution	Peak Thrust	Maximum Continuous Thrust	Linear Motion Per Motor Rev	Motor Rated Current	Motor Winding Resistance	Motor Winding Inductance	Motor Rated Power	Motor Frame Size	Mounting Interface	Weight
NA08A16-T4A	0.047625 µm	16 mm (0.63")	20 µm (0.000787")	< 5 µm (< 0.000197")	< 15 µm (< 0.000591")	30 mm/s (1.181"/s)	0.000029 mm/s (0.000001"/s)	0.000029 mm/s (0.000001"/s)	44 N (9.9 lb)	19 N (4.3 lb)	0.6096 mm (0.024")	490 mA/phase	5.1 ohms/phase	1.5 mH/phase	2.45 watts	08	4 M2 tapped holes 15.4 mm apart or 9 mm dia smooth shank	0.07 kg (0.154 lb)
NA08A30-T4A	0.047625 µm	30 mm (1.181")	20 µm (0.000787")	< 5 µm (< 0.000197")	< 15 µm (< 0.000591")	30 mm/s (1.181"/s)	0.000029 mm/s (0.000001"/s)	0.000029 mm/s (0.000001"/s)	44 N (9.9 lb)	19 N (4.3 lb)	0.6096 mm (0.024")	490 mA/phase	5.1 ohms/phase	1.5 mH/phase	2.45 watts	08	4 M2 tapped holes 15.4 mm apart or 9 mm dia smooth shank	0.08 kg (0.176 lb)
NA08B16-T4A	0.09525 µm	16 mm (0.63")	20 µm (0.000787")	< 5 µm (< 0.000197")	< 15 µm (< 0.000591")	60 mm/s (2.362"/s)	0.000058 mm/s (0.000002"/s)	0.000058 mm/s (0.000002"/s)	39 N (8.7 lb)	19 N (4.3 lb)	1.2192 mm (0.048")	490 mA/phase	5.1 ohms/phase	1.5 mH/phase	2.45 watts	08	4 M2 tapped holes 15.4 mm apart or 9 mm dia smooth shank	0.07 kg (0.154 lb)
NA08B30-T4A	0.09525 µm	30 mm (1.181")	20 µm (0.000787")	< 5 µm (< 0.000197")	< 15 µm (< 0.000591")	60 mm/s (2.362"/s)	0.000058 mm/s (0.000002"/s)	0.000058 mm/s (0.000002"/s)	39 N (8.7 lb)	19 N (4.3 lb)	1.2192 mm (0.048")	490 mA/phase	5.1 ohms/phase	1.5 mH/phase	2.45 watts	08	4 M2 tapped holes 15.4 mm apart or 9 mm dia smooth shank	0.08 kg (0.176 lb)
NA11B16-T4A	0.09921875 µm	16 mm (0.63")	25 µm (0.000984")	< 5 µm (< 0.000197")	< 18 µm (< 0.000709")	63 mm/s (2.48"/s)	0.000061 mm/s (0.000002"/s)	0.000061 mm/s (0.000002"/s)	85 N (19.1 lb)	58 N (13 lb)	1.27 mm (0.05")	1000 mA/phase	2.1 ohms/phase	1.5 mH/phase	4.2 watts	11	4 M2.5 tapped holes 23 mm apart or 14 mm smooth shank	0.15 kg (0.331 lb)
NA11B30-T4A	0.09921875 µm	30 mm (1.181")	25 µm (0.000984")	< 5 µm (< 0.000197")	< 18 µm (< 0.000709")	63 mm/s (2.48"/s)	0.000061 mm/s (0.000002"/s)	0.000061 mm/s (0.000002"/s)	85 N (19.1 lb)	58 N (13 lb)	1.27 mm (0.05")	1000 mA/phase	2.1 ohms/phase	1.5 mH/phase	4.2 watts	11	4 M2.5 tapped holes 23 mm apart or 14 mm smooth shank	0.16 kg (0.353 lb)
NA11B60-T4A	0.09921875 µm	60 mm (2.362")	36 µm (0.001417")	< 5 µm (< 0.000197")	< 18 µm (< 0.000709")	63 mm/s (2.48"/s)	0.000061 mm/s (0.000002"/s)	0.000061 mm/s (0.000002"/s)	85 N (19.1 lb)	58 N (13 lb)	1.27 mm (0.05")	1000 mA/phase	2.1 ohms/phase	1.5 mH/phase	4.2 watts	11	4 M2.5 tapped holes 23 mm apart or 14 mm smooth shank	0.17 kg (0.375 lb)
NA14B16-T4A	0.09525 µm	16 mm (0.63")	25 µm (0.000984")	< 5 µm (< 0.000197")	< 20 µm (< 0.000787")	60 mm/s (2.362"/s)	0.000058 mm/s (0.000002"/s)	0.000058 mm/s (0.000002"/s)	225 N (50.5 lb)	225 N (50.5 lb)	1.2192 mm (0.048")	570 mA/phase	8.8 ohms/phase	13 mH/phase	5.7 watts	14	4 M3 tapped holes 26 mm apart or 15 mm smooth shank	0.15 kg (0.331 lb)
NA14B30-T4A	0.09525 µm	30 mm (1.181")	25 µm (0.000984")	< 5 µm (< 0.000197")	< 20 µm (< 0.000787")	60 mm/s (2.362"/s)	0.000058 mm/s (0.000002"/s)	0.000058 mm/s (0.000002"/s)	225 N (50.5 lb)	225 N (50.5 lb)	1.2192 mm (0.048")	570 mA/phase	8.8 ohms/phase	13 mH/phase	5.7 watts	14	4 M3 tapped holes 26 mm apart or 15 mm smooth shank	0.22 kg (0.485 lb)
NA14B60-T4A	0.09525 µm	60 mm (2.362")	36 µm (0.001417")	< 5 µm (< 0.000197")	< 20 µm (< 0.000787")	60 mm/s (2.362"/s)	0.000058 mm/s (0.000002"/s)	0.000058 mm/s (0.000002"/s)	225 N (50.5 lb)	225 N (50.5 lb)	1.2192 mm (0.048")	570 mA/phase	8.8 ohms/phase	13 mH/phase	5.7 watts	14	4 M3 tapped holes 26 mm apart or 15 mm smooth shank	0.23 kg (0.507 lb)
NA23C60-T4A	0.1984375 µm	60 mm (2.362")	36 µm (0.001417")	< 5 µm (< 0.000197")	< 30 µm (< 0.001181")	80 mm/s (3.15"/s)	0.000121 mm/s (0.000005"/s)	0.000121 mm/s (0.000005"/s)	700 N (157 lb)	700 N (157 lb)	2.54 mm (0.1")	1300 mA/phase	3.85 ohms/phase	10.5 mH/phase	13 watts	23	5.2 mm holes	0.75 kg (1.653 lb)
NA34C60-T4A	0.1984375 µm	60 mm (2.362")	45 µm (0.001772")	< 10 µm (< 0.000394")	< 65 µm (< 0.002559")	55 mm/s (2.165"/s)	0.000121 mm/s (0.000005"/s)	0.000121 mm/s (0.000005"/s)	1300 N (291.5 lb)	1300 N (291.5 lb)	2.54 mm (0.1")	3120 mA/phase	1.6 ohms/phase	8.8 mH/phase	31.2 watts	34	6.5 mm hole	2.64 kg (5.82 lb)

Specification Charts & Notes

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

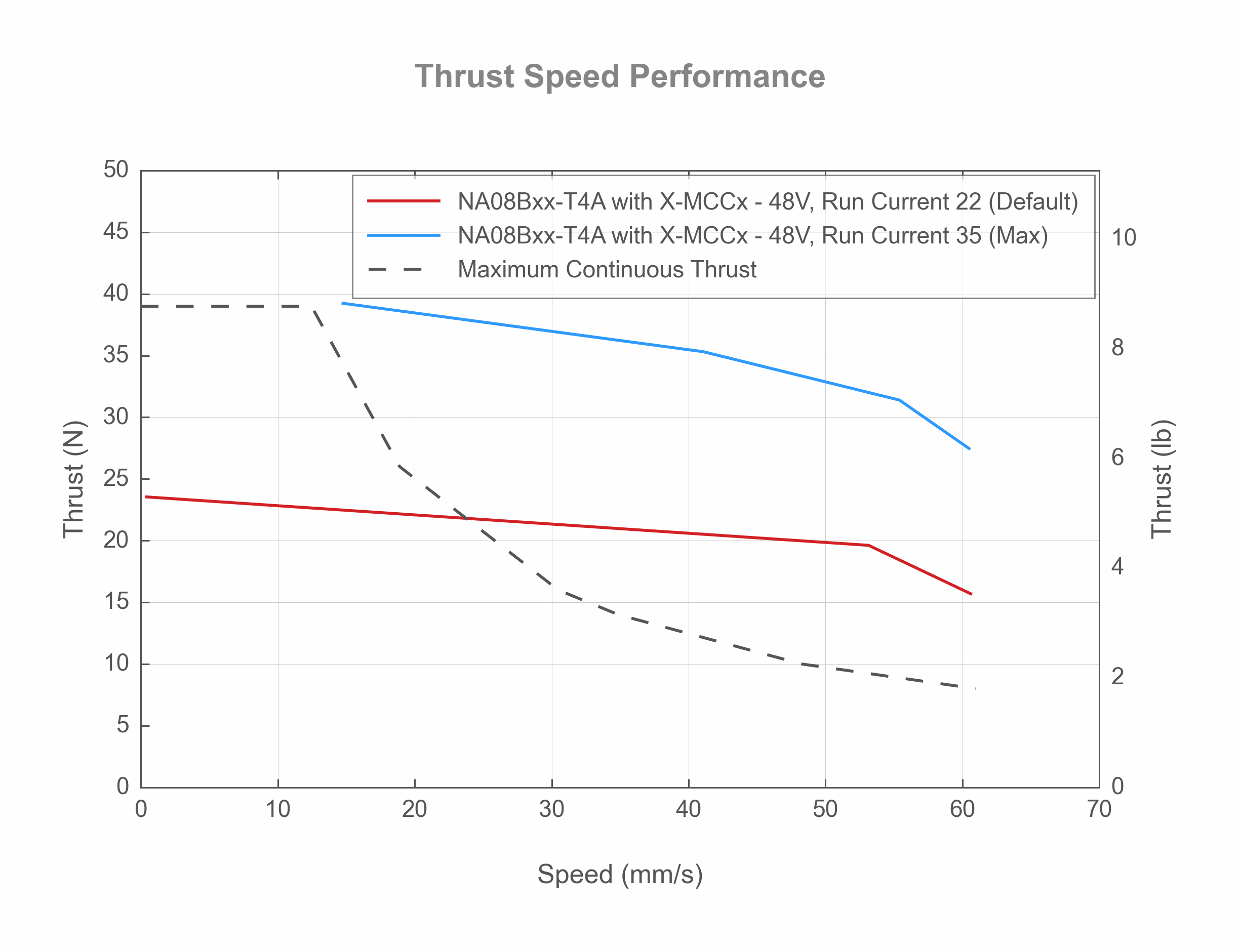

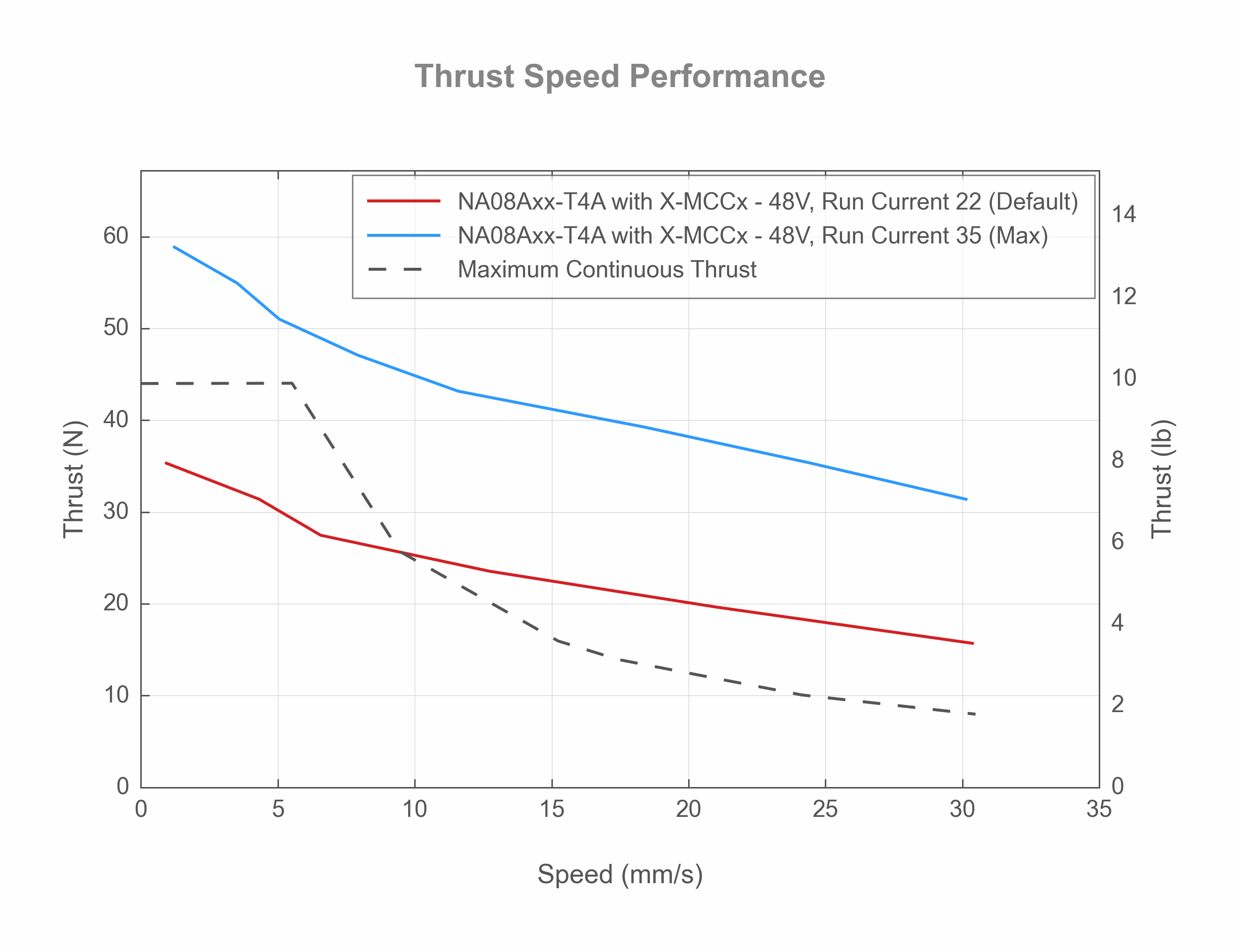

Thrust Speed Performance

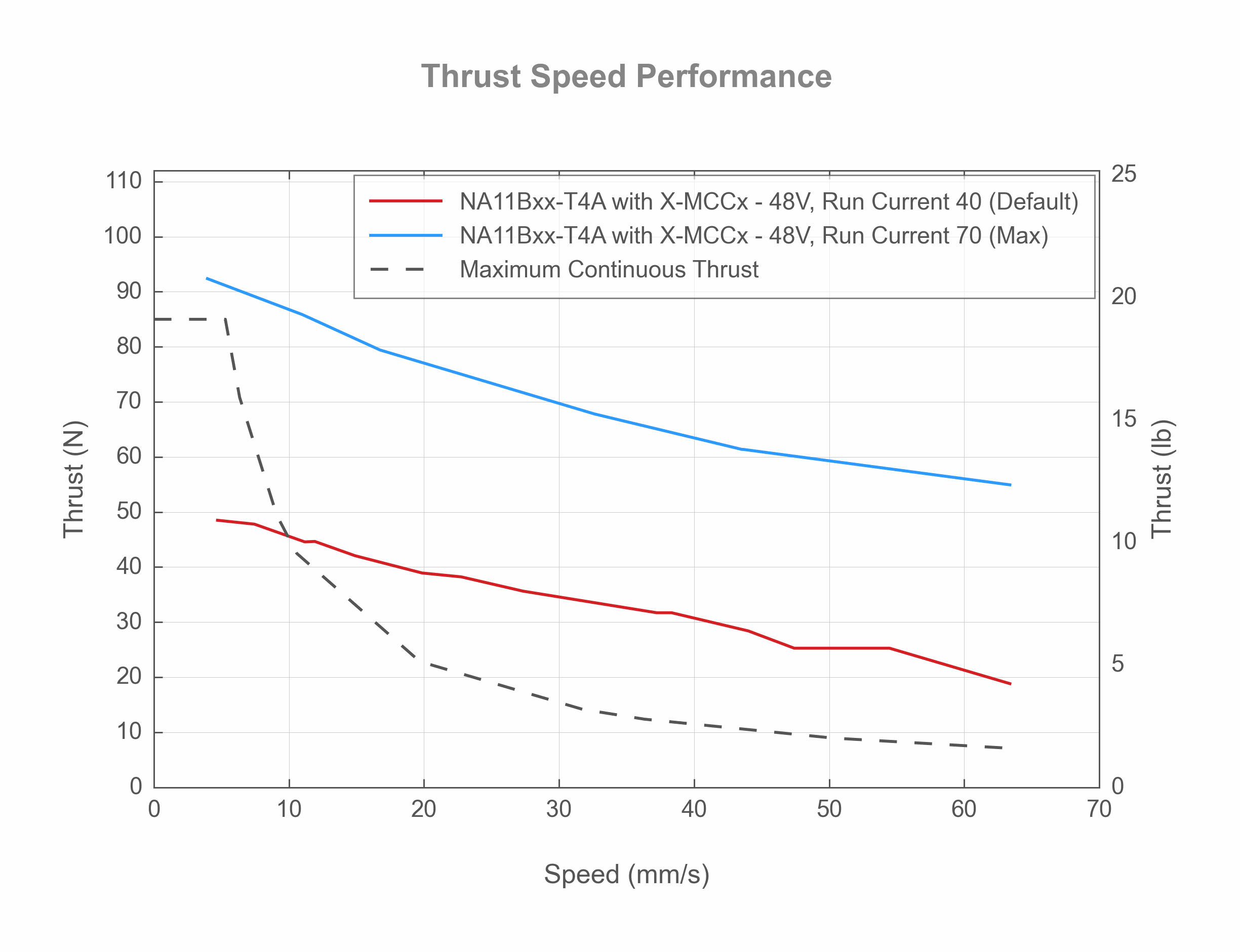

Photo of the NA11Bxx-T4A - Thrust Speed Performance - 39171, 39172, 39173

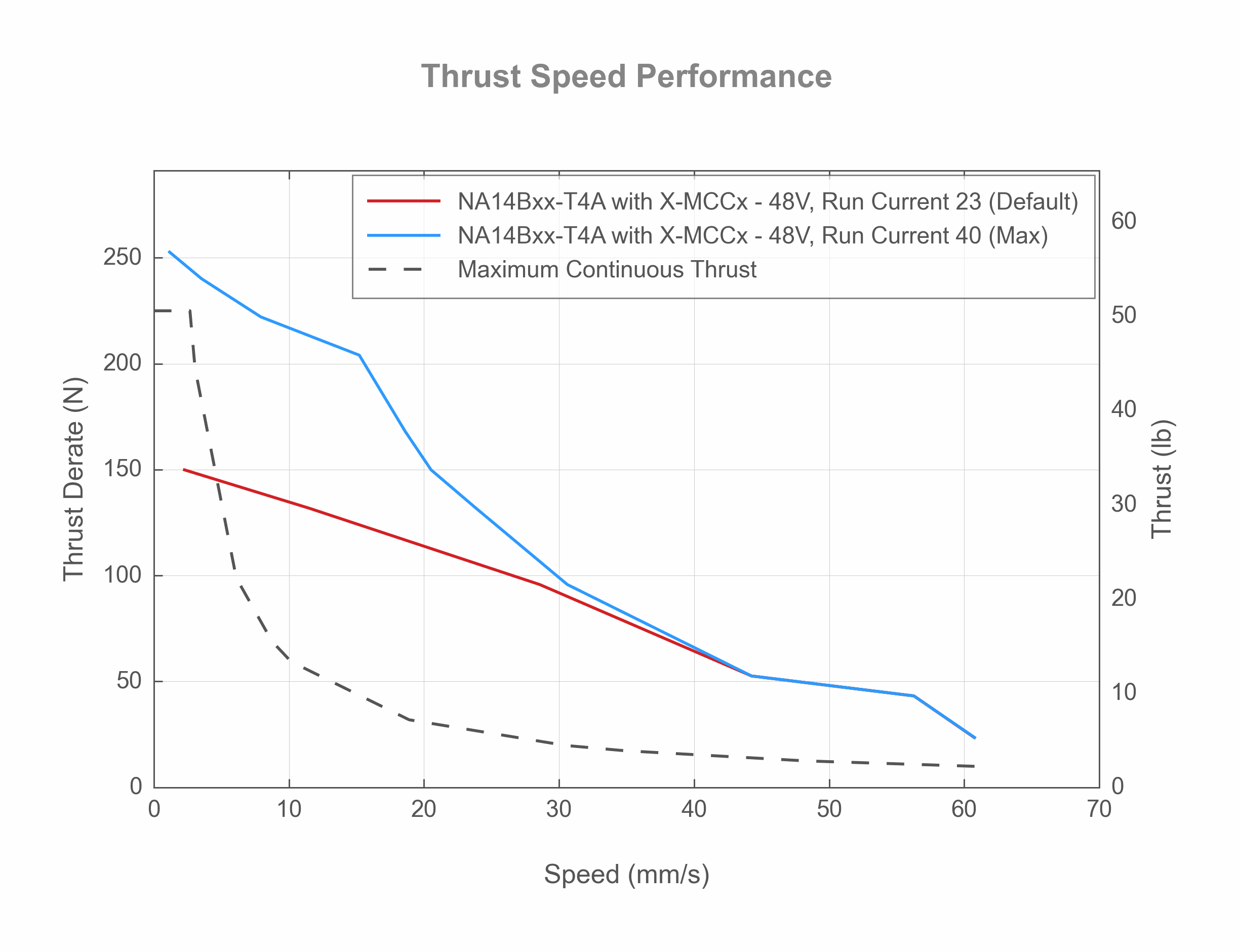

Photo of the NA14Bxx-T4A - Thrust Speed Performance - 15361, 15362, 39183

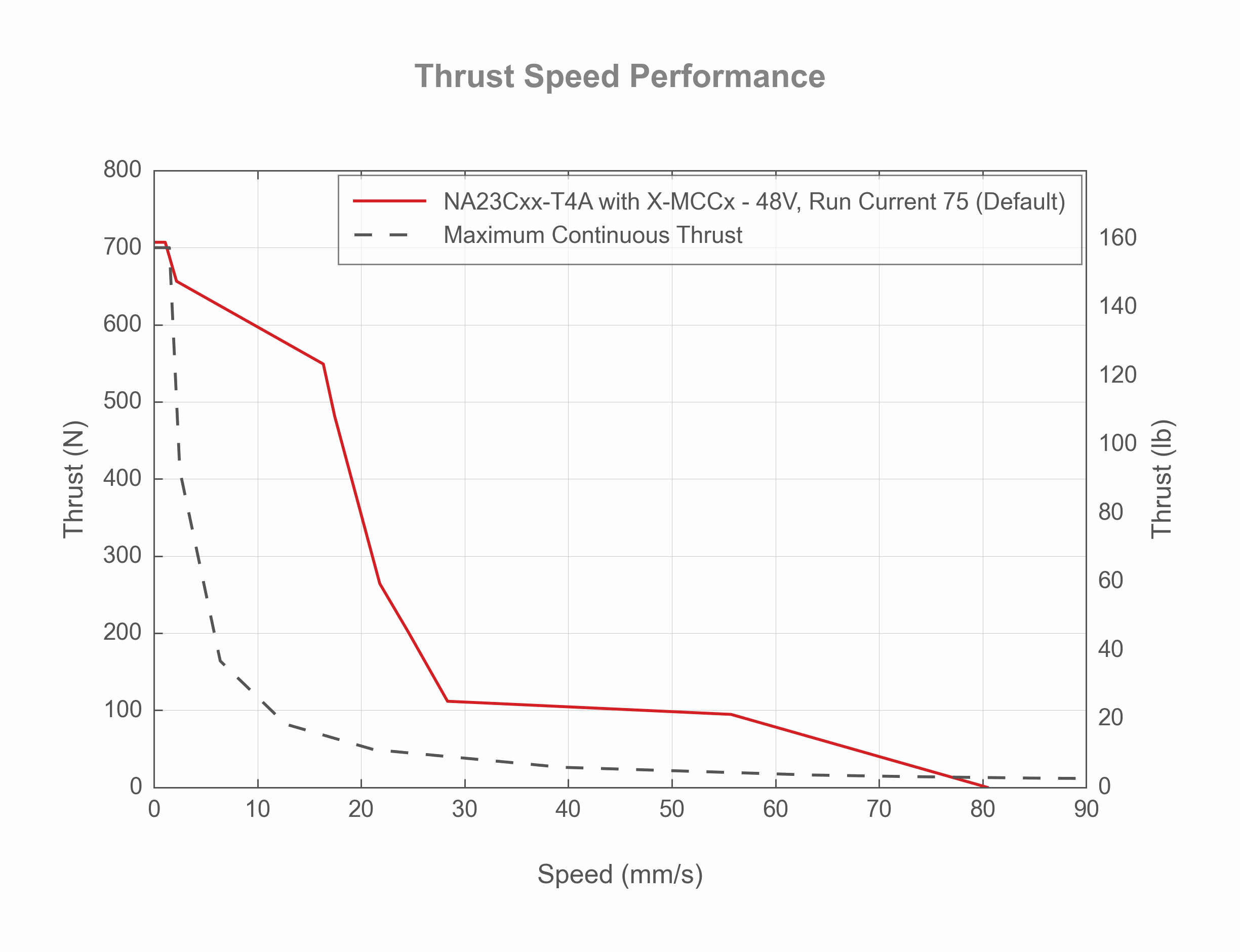

Photo of the NA23Cxx-T4A - Thrust Speed Performance - 19292, 39186

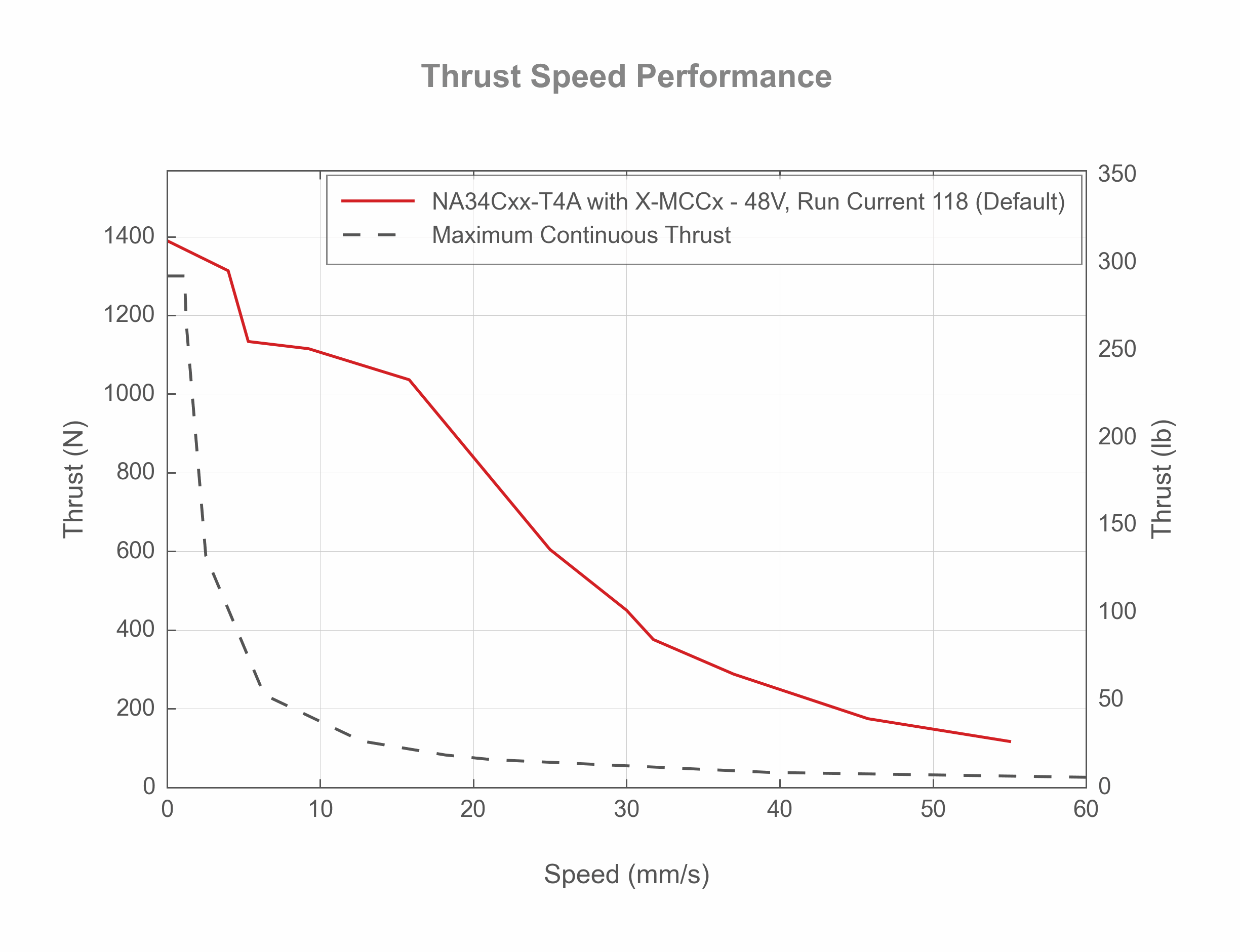

Photo of the NA34Cxx-T4A - Thrust Speed Performance - 19340, 39189
