LAC Series
Compact motorized linear actuators
Image is representative of the LAC Series and may not match the selected variant.
LAC10A-T4A
NEMA Size 08 | 10 mm Travel | 40 N Force
Starting Price: $834 *
Standard Lead Time: 1-5 Days
LAC10A-T4A Specifications
Download Datasheet| Microstep Size (Default Resolution) | 0.0238125 µm |
| Built-in Controller |  |
| Recommended Controller | MCC (48 V) Recommended |
| AutoDetect |  |
| Travel Range | 10 mm (0.394") |
| Accuracy (unidirectional) | 10 µm (0.000394") |
| Repeatability | < 1.5 µm (< 0.000059") |
| Backlash | < 2 µm (< 0.000079") |
| Maximum Speed | 14 mm/s (0.551"/s) |
| Minimum Speed | 0.000015 mm/s (0.000001"/s) |
| Speed Resolution | 0.000015 mm/s (0.000001"/s) |
| Encoder Type | |
| Peak Thrust | 40 N (9 lb) |
| Linear Motion Per Motor Rev | 0.3048 mm (0.012") |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 240 mA/phase |
| Motor Winding Resistance | 20.4 ohms/phase |
| Motor Winding Inductance | 5 mH/phase |
| Motor Connection | D-sub 15 |
| Default Resolution | 1/64 of a step |
| Motor Frame Size | 8 |
| Mechanical Drive System | Precision lead screw |
| Limit or Home Sensing | Magnetic Home Sensor |
| Axes of Motion | 1 |
| Mounting Interface | 3/8-32 nut or 3/8"(9.5mm) shank |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant | |
| Vacuum Compatible | |
| Weight | 0.076 kg (0.168 lb) |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

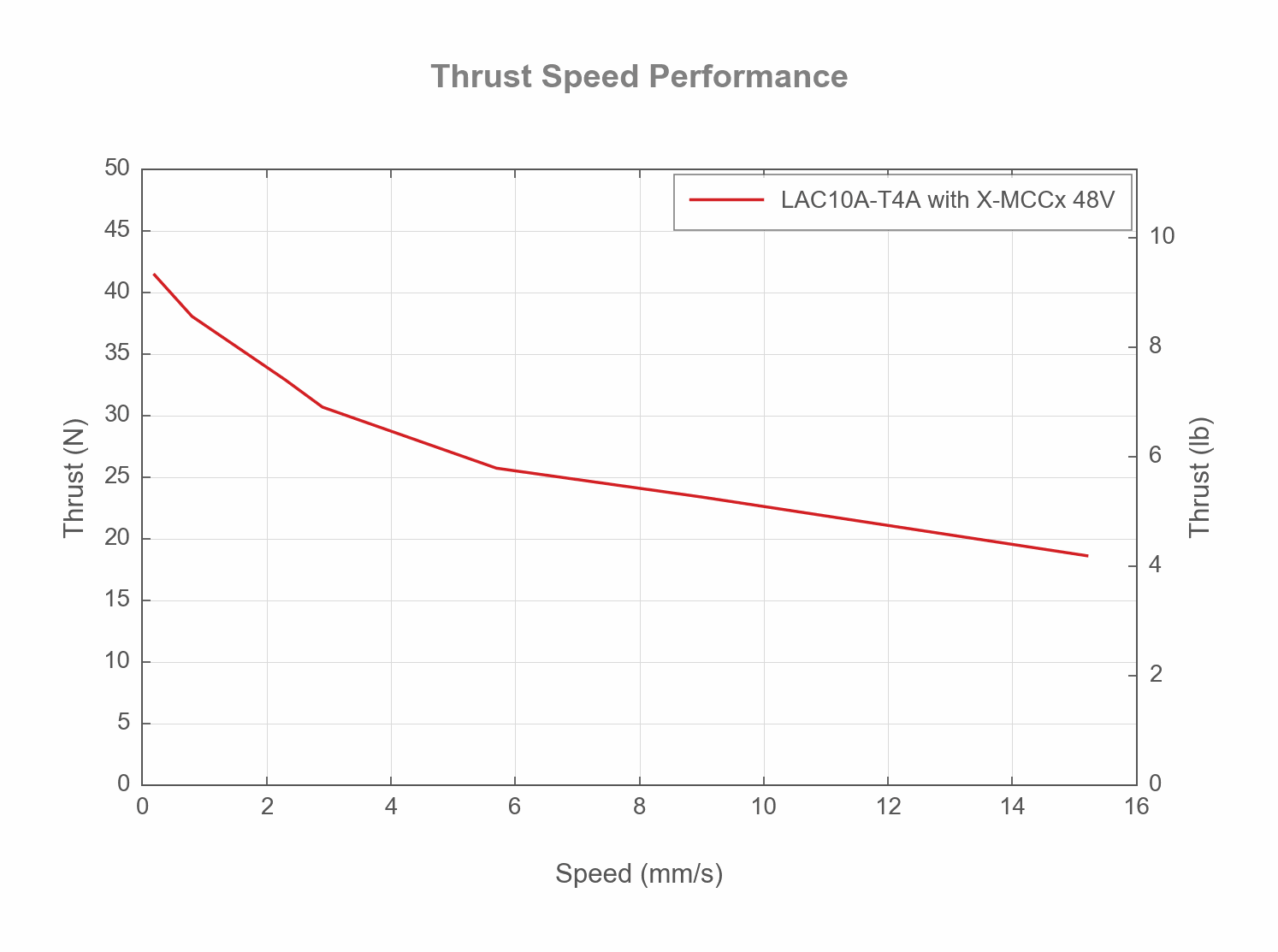

Thrust Speed Performance
