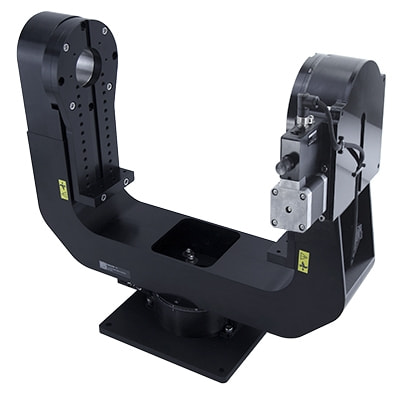

Representative Image
G-RST Family
Two-Axis Gimbal Stages
- 300 and 500 mm width frame gimbals
- Ideal for high-load, high-precision, angular positioning in optics, telecom, scanning, and tracking applications
- 360° continuous travel on both azimuth and elevation axes
- Direct reading encoder for slip/stall detection and position correction
- Adjustable elevation offset for optimizing alignment and performance
- Built-in controllers & slip ring for effortless cable management
| Range | Best Accuracy | Best Backlash | Best Repeatability | Highest Speed |
|---|---|---|---|---|
360° | 0.01° (0.174500 mrad) | < 0.005° (< 0.087 mrad) | < 0.005° (< 0.087 mrad) | 24°/s (4 rpm) |
| Series Name | Built-In Controller | Built-In Encoder | Built-In Motor | Price Range ( USD ) * | Current Lead Times | Add To Compare |
|---|---|---|---|---|---|---|
| X-G-RST-DE |  | Direct Reading | Stepper Motor | $21,418 – $22,809 | 10-15 Days | |
| X-G-RST-E | | Motor/rotary | Stepper Motor | $18,841 – $20,232 | 10-15 Days |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
G-RST Customization Examples
Whether you need modifications to standard products or have unique stage or system needs, our Product Customization Team is dedicated to building tailored solutions.
Response Time Promise: 1 Business Day
Zaber Technologies Gimbal
This customized gimbal system consists of two RST rotary stages, an X-MCB2 external controller, and custom-sized brackets. This setup can be changed to accommodate different size working envelopes. Some additional options include rotary stages with built-in controllers, motor encoders, or direct encoders. It is also possible to connect device cables through a slip ring, which allows daisy-chaining power and data to the stages without tangling wires as the stage rotates.

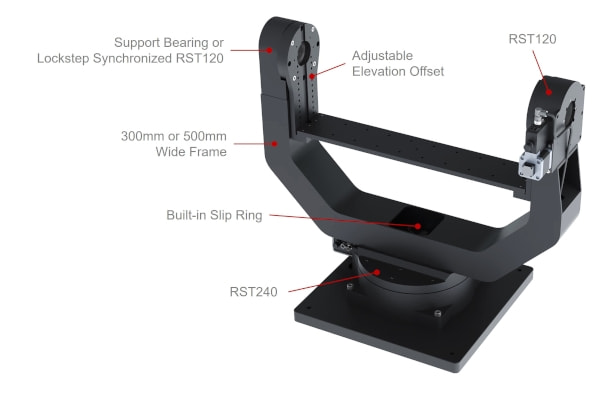

X-G-RST Gimbal with RST240 Azimuth Axis
This image shows a X-G-RST500 with an X-RST240B as the azimuth axis. This allows higher speeds and accelerations to be achieved. This setup can be changed to accommodate different size working envelopes. The devices are daisy-chained together through a slip ring, which allows daisy-chaining power and data to the X-RST120 without tangling wires as the stage rotates. An additional X-RST120 can be added in Lockstep to increase the capacity of the elevation axis.

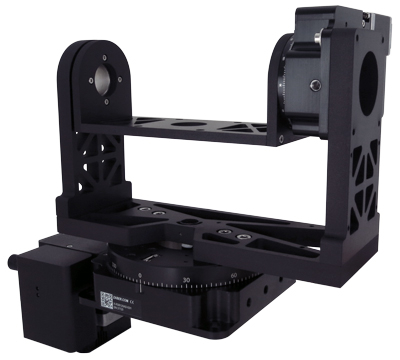

Custom Two-Axis Rotary Gimbal
This gimbal system consists of an X-RSB for the lower axis with an X-RSW driving the upper axis. The devices are daisy-chained together through a slip ring, which allows daisy-chaining power and data to the X-RSW without tangling wires as the stage rotates. This setup can easily be customized to accommodate different size working envelopes or be mounted to work with an X-RST for higher accuracy systems.
Custom Gimbal with Through-Bore Slip Ring
The Challenge: A customer needed continuous two-axis rotation for a new instrument but also required clear, unobstructed access through the center to mount a stationary object. Standard rotary stages include an aperture, but running cables through a continuously rotating stage can cause cables to tangle. Zaber's standard gimbals include optional slip rings to provide unrestricted rotation with cables but this component occupies the rotary stage aperture. The Solution: Our Custom Engineering team designed a custom miniature gimbal that integrates a through-bore slip ring.
