Gimbal Stages

Gimbal Stages

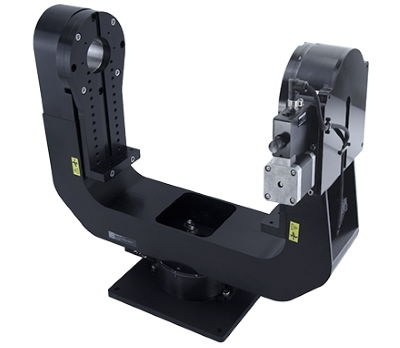

Zaber's gimbal
  • Our gimbal stages and gimbal mounts include built-in controllers & slip ring for effortless cable management
  • Motor encoders provide slip/stall detection and recovery; or direct encoders add high accuracy, closed loop servo positioning
  • Speed up to 24°/s; max torque 10 N⋅m; max payload 15 kg
Multi-Axis

Easy Multi-Axis Systems

Plug-N-Play

Plug & Play in Minutes

User-friendly software

User-Friendly
Software & API

Lead Time

Shipping
Within 1 Week

Customization

Customizations Available

A motorized gimbal stage or gimbal mount is a device that precisely controls angular position of a mounted object around one or more axes in free space.

We define a "gimbal mount" as a device designed for mounting an optical component like a mirror or camera, while we define a "gimbal stage" as a device for more universal applications.

Zaber offers a wide selection of standard and customized motorized gimbal mount and gimbal stage products.

G-RST Family — Two-Axis Gimbal Stages

Starting Price
$18,472 (USD)

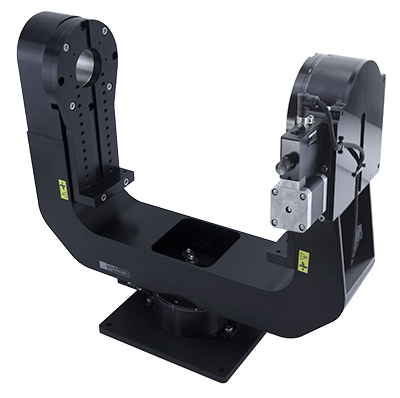

Photo of the X-G-RST-DE

Representative Image

  • 300 and 500 mm width frame gimbals
  • Ideal for high-load, high-precision, angular positioning in optics, telecom, scanning, and tracking applications
  • 360° continuous travel on both azimuth and elevation axes
  • Direct reading encoder for slip/stall detection and position correction
RangeBest AccuracyBest RepeatabilityBest BacklashHighest Speed
360°
0.01°
(0.174500 mrad)
< 0.005°
(< 0.087 mrad)
< 0.005°
(< 0.087 mrad)
24°/s
(4 rpm)

OMG Series — Miniature Motorized Gimbal Optic Mounts

Starting Price
$2,059 (USD)

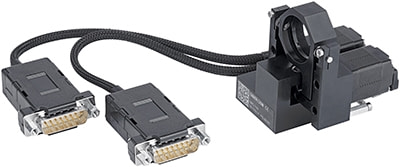

Photo of the OMG

Representative Image

  • Two-axis gimbal mount with +/- 7° range
  • Holds 1" (25 mm) optics
  • Our most compact optical mount weighing only 330 grams
RangeBest AccuracyBest RepeatabilityBest BacklashHighest Speed
+/- 7°
0.055°
(0.959750 mrad)
< 0.007°
(< 0.122 mrad)
< 0.005°
(< 0.087 mrad)
NA
