LDA-AE Series User's Manual

High precision linear motor stages with built-in linear encoders

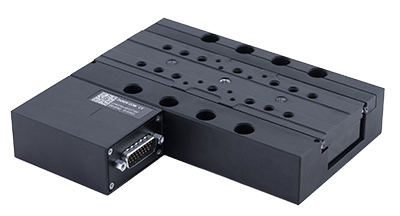

Photo of the LDA-AE

Disclaimer

Zaber’s products are not intended for use in any critical medical, aviation, or military applications or situations where a product's use or failure could cause personal injury, death, or damage to property. Zaber disclaims any warranty of fitness for a particular purpose. The user of this product agrees to Zaber's general terms and conditions of sale.

Precautions

Zaber's autodetect peripheral axes are designed to be used effortlessly with Zaber's line of autodetect controllers. The LDA-AE includes onboard memory that allows Zaber's controllers to autodetect the model and set reasonable parameters. See the Protocol Manual for more information on how to modify the settings. Damage to the axis may result if the settings are not correct. To use your Zaber peripheral with a third-party controller, review the motor, sensor, and encoder specifications and pin-outs carefully.

Important Precautions for Use

Contamination could impact the performance of the LDA-AE stage. Avoid introduction of ferro-magnetic particles to the stage, and contact with, or contamination of, the encoder scale.

Default image for https://www.zaber.com/manuals/LDA-AE Mounting and Maintenance Hazard! For operator safety, the LDA-AE should always be un-powered during all cleaning, maintenance, and stage or load mounting operations. A powered stage could exert high forces and move at high speeds very suddenly if accidentally given a move command.

Default image for https://www.zaber.com/manuals/LDA-AEDefault image for https://www.zaber.com/manuals/LDA-AE Strong Magnets! The LDA-AE stages contain strong magnets that could affect pacemaker function. Pacemaker users should stay at least 20 cm away from the stages. The magnets can also attract nearby magnetic objects.

Default image for https://www.zaber.com/manuals/LDA-AE Secure Stage Mounting Required! The LDA-AE stages can shake and vibrate during operation due to high inertia. The stages must always be securely mounted to a work surface during operation. See #Physical_Installation for information on stage mounting.

Default image for https://www.zaber.com/manuals/LDA-AE Important: The LDA-AE stage should be homed immediately upon power-up. Behavior may appear jerky during homing. Once the stage has been homed, motion will be controlled and smooth.

Default image for https://www.zaber.com/manuals/LDA-AE Back-driving Hazard! Linear motor stages require current to the motor coils to provide a force to maintain position and/or support a load. If power is removed the carriage may move suddenly or in an uncontrolled manner. The LDA-AE stage is not intended for load lifting operations due to the risk of uncontrolled motion if driver power is removed.

Default image for https://www.zaber.com/manuals/LDA-AE Important: The LDA-AE is a servo device, meaning that its performance is dependent on proper tuning of the servo parameters for the given load. The use of incorrect servo parameters may reduce the device’s performance in operation. Incorrect tuning may also result in unstable operation, which can cause unexpected rapid motion of the device, leading to reduced device lifetime and user injury. When the operating load on the device is changed, the tuning parameters should be updated to match. For details see the servo tuning guidelines.

Lubrication and Cleaning

Many factors affect the lifetime of the grease and bearings including duty cycle, environment, travel length, stage orientation, and loading configuration. As a general guideline for usage in a clean office environment, the recommended re-lubrication interval is 250 km with an inspection after every 1500 hours of continuous operation. Inspection should be done by wiping a bearing rail with a clean, lint-free wipe and ensuring that there is clean, wetted grease present.

Harsh environment, short travel, vertically oriented, and high duty cycle applications require more frequent re-lubrication and inspection. Contact an Applications Engineer to discuss your application for more specific recommendations.

Short travel can cause an insufficient distribution of lubricant amongst the rolling elements of the bearing system. For recirculating bearing guide types, short travel is equal to or less than the length of the carriage. For crossed-roller bearing guide types, short travel is equal to or less than twice the spacing of the rolling elements (typically 5-6 mm). If your application is considered short travel, it is recommended to occasionally drive the stage throughout its full travel range to maintain an even lubrication film over the entire guide surface. More frequent re-lubrication and inspection may be required in these applications.

For longest lubrication intervals, we recommend lubricating guides with Kluberplex BEM 34-132 grease. All guides come pre-lubricated and are ready to go out of the box.

Noise Emissions

The A-weighted emission sound pressure level (SPL) of this device does not exceed 70 dB(A) during intended use.

Conventions used throughout this document

  • Fixed width type indicates communication to and from a device. The Carriage Return Icon symbol indicates a carriage return, which can be achieved by pressing enter when using a terminal program.

Device Overview

AutoDetect

Your LDA-AE peripheral is equipped with AutoDetect, a feature that allows a Zaber controller to automatically configure its settings for the peripheral when it is connected.

Default image for https://www.zaber.com/manuals/LDA-AE Important: The controller should always be powered down before disconnecting or connecting your LDA-AE peripheral.

To connect the peripheral to a controller:

  1. Power off the controller.
  2. Connect the LDA-AE peripheral.
  3. Power on the controller.
  4. The controller will activate the peripheral shortly after it is powered on.

See the Zaber controller user manual for more details on peripheral activation and control.

Connectors

Recommended controller(s) for your LDA-AE peripheral are provided in the product specifications. Zaber's controllers and peripherals are designed for ease of use when used together. Optimal settings for each peripheral are automatically detected by Zaber's controllers when the device is connected.

For reference, the pinout for the peripheral cable connectors is shown below:

Pinout for D-sub 26 Connectors (peripherals)

width=400px

Male High Density D-sub26 Connector
Motor and Sensor Interface

Pin Description Pin Description
1 AutoDetect Clock 14 Motor Hall C
2 AutoDetect Data 15 +5V
3 N.C. 16 Ground
4 N.C. 17 N.C.
5 N.C. 18 Motor W
6 Motor Over-Temperature 19 Differential Encoder Sin-
7 Ground 20 Differential Encoder Cos-
8 Motor V 21 Differential Encoder Index-
9 Motor U 22 Motor Hall A
10 Differential Encoder Sin+ 23 Motor Hall B
11 Differential Encoder Cos+ 24 N.C.
12 Differential Encoder Index+ 25 N.C.
13 Differential Encoder Error 26 N.C.

NOTE: All hall sensor signals (for limits or motor phase) are open collector and require a pull-up on the controller.
NOTE: All single-ended encoder inputs are non-isolated 5V TTL lines.
NOTE: All differential encoder signals are non-isolated, and must be terminated on the controller with 120 Ω. For -AE peripherals, these signals are sinusoidal with 1 V peak-to-peak differential levels and with the common mode between 1.5 V and 2.5 V.

Alternate Controllers

The LDA-AE can be controlled by other linear motor controllers with appropriate encoder input. We do not recommend using your own controller unless you are familiar with wiring and tuning third-party linear motor products. Damage to the device due to incorrect wiring is not covered by warranty.

Motors & Encoders

For motor and encoder information see the LDA-AE product page

Installation

The LDA-AE can be operated by connecting to the controller/s recommended in the product specifications. Please review the controller's user manual as well.

Physical Installation

Default image for https://www.zaber.com/manuals/LDA-AE Tip: To obtain the best pitch, roll, yaw and runout performance, mount the stage to a known flat, stiff surface. Our tests were performed on a granite surface plate, grade A flatness.

Default image for https://www.zaber.com/manuals/LDA-AE Stability Hazard! Ensure the stage is fastened to a secure surface before mounting a load on the carriage. Ensure loads are mounted securely to the carriage of the stage before operating.

Default image for https://www.zaber.com/manuals/LDA-AE Mounting and Maintenance Hazard! For operator safety, the LDA-AE should always be un-powered during all cleaning, maintenance, and stage or load mounting operations. A powered stage could exert high forces and move at high speeds very suddenly if accidentally given a move command.

Secure LDA-AE stages with M6 socket cap screws, 30 mm or longer. It is recommended to use as many mounting holes as possible to maximize device stiffness.

XY Assemblies

Default image for https://www.zaber.com/manuals/LDA-AE Pinch Hazard! LDA-AE stages can create pinch hazards between the upper-axis and lower-axis stages when mounted in an XY configuration. Make sure to keep hands clear when powering up the stages.

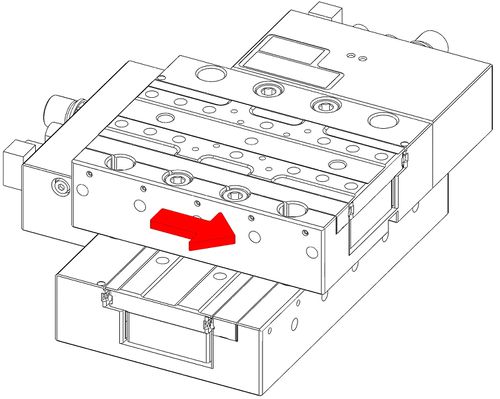

LDA-AE stages can be mounted directly in XY configurations. LDA-AE stages feature precision machined reference features to allow for optimal orthogonality between two stages in an XY configuration.

Servo Tuning

This peripheral is a closed-loop positioning servo system. When not in force mode, it continuously monitors and corrects its position via the linear encoder. As with any servo system, the behaviour is dependent on the controller tuning. The LDA-AE, when paired with a compatible Zaber controller, such as an X-MCC series Universal Motor Controller, will be appropriately tuned out of the box with settings that are optimized for regular use under a light load. However, as with any closed-loop feedback system, the device performance is load-dependent, and conditions significantly outside of the intended operating range have the potential for reduced performance or instability. Thus, if operation with large or unconventional dynamic loads is desired, or if the application demands specific performance characteristics, it may be necessary to tune the servo parameters. This may be conveniently done by using Zaber Launcher's Servo Tuner App, or Zaber Motion Library's ServoTuner API.

Default image for https://www.zaber.com/manuals/LDA-AE Tip: Because servo devices continuously monitor and correct position, it is necessary to specify how accurate and stable the final position must be at the end of the movement. Criteria required for the controller to report IDLE status after movement are specified using the cloop.settle.tolerance and cloop.settle.period settings. For applications requiring utmost precision, you may want to specify a smaller tolerance and longer period. Note that there is a direct, inverse relationship between settling time and cloop.settle.tolerance, and the controller may never report IDLE status if the tolerance is too small.

Trajectory Control and Behaviour

This section describes the behaviour of the axis trajectory when a movement command is issued.

Software Position Limits

The travel range of the axis is limited by the Minimum Position and Maximum Position settings. The factory settings for the axis are configured to match the physical travel range. If a customized range is desired, it can be changed by configuring the limit.min and limit.max settings to appropriate values. For the Current Position, query pos.

Minimum Position
When the Current Position is less than the Minimum Position value, the axis cannot move in the negative direction.
Maximum Position
When the Current Position is greater than the Maximum Position value, the axis cannot move in the positive direction.

Movement Speed

The movement speed of the axis depends on axis status and various speed settings. If the axis has not been initialized by the home command or by moving towards the home end of the axis, movement speed will be constrained to fail-safe values. The home status of the axis can be determined by reading the limit.home.triggered setting.

Movement speed of the axis is specified below:

move vel
The axis will move at the specified speed regardless of home status.
Knob movement in Velocity Mode
The axis will move at the specified speed regardless of home status.
The speed is specified by the knob.speedprofile and knob.maxspeed settings.
Other movement commands - when the axis has not been homed
The axis will move at the slower of the maxspeed and limit.approach.maxspeed settings.
Other movement commands - when the axis has been homed
The axis will move at the speed specified by the maxspeed setting.

Servo Tuning

This positioner is a closed-loop positioning servo system. It continuously monitors and corrects its position via the linear encoder. As with any servo system, the behaviour is dependent on the controller tuning. It comes pre-tuned out of the box with settings that are optimized for regular use under a light load. However, as with any closed-loop feedback system, the performance is load-dependent, and conditions significantly outside of the intended operating range have the potential for reduced performance or instability. Thus, if operation with large or unconventional dynamic loads is desired, or if the application demands specific performance characteristics, it may be necessary to tune the servo parameters. This may be conveniently done by using Zaber Launcher's Servo Tuner App, or Zaber Motion Library's ServoTuner API

Default image for https://www.zaber.com/manuals/LDA-AE Tip: Because servo positioners continuously monitor and correct position, it is necessary to specify how accurate and stable the final position must be at the end of the movement. Criteria required for the controller to report IDLE status after movement are specified using the cloop.settle.tolerance and cloop.settle.period settings. For applications requiring utmost precision, you may want to specify a smaller tolerance and longer period. Note that there is a direct, inverse relationship between settling time and cloop.settle.tolerance, and the controller may never report IDLE status if the tolerance is too small.

Warranty and Repair

For Zaber's policies on warranty and repair, please refer to the Ordering Policies.

Standard products

Standard products are any part numbers that do not contain the suffix ENG followed by a 4 digit number. Most, but not all, standard products are listed for sale on our website. All standard Zaber products are backed by a one-month satisfaction guarantee. If you are not satisfied with your purchase, we will refund your payment minus any shipping charges. Goods must be in brand new saleable condition with no marks. Zaber products are guaranteed for one year. During this period Zaber will repair any products with faults due to manufacturing defects, free of charge.

Custom products

Custom products are any part numbers containing the suffix ENG followed by a 4 digit number. Each of these products has been designed for a custom application for a particular customer. Custom products are guaranteed for one year, unless explicitly stated otherwise. During this period Zaber will repair any products with faults due to manufacturing defects, free of charge.

How to return products

Customers with devices in need of return or repair should contact Zaber to obtain an RMA form which must be filled out and sent back to us to receive an RMA number. The RMA form contains instructions for packing and returning the device. The specified RMA number must be included on the shipment to ensure timely processing.

Email Updates

If you would like to receive our periodic email newsletter including product updates and promotions.

Contact Information

Contact Zaber Technologies Inc by any of the following methods:

Phone 1-604-569-3780 (direct)
1-888-276-8033 (toll free in North America)
Fax 1-604-648-8033
Mail #2 - 605 West Kent Ave. N., Vancouver, British Columbia, Canada, V6P 6T7
Web www.zaber.com
Email Please visit our website for up to date email contact information.

The original instructions for this product are available at https://www.zaber.com/manuals/LDA-AE.

Appendix A: Default Settings

Please see the Zaber Support Page for default settings for this device.

Product Drawing

Drawing dimensions_LDA-AE

Specifications

SpecificationValueAlternate Unit
Built-in Controller No
Recommended Controller X-MCC (48 V) Recommended
AutoDetect Yes
Accuracy (unidirectional) 1.5 µm 0.000059"
Repeatability < 0.2 µm < 0.000008"
Minimum Incremental Move 12 nm
Maximum Speed 800 mm/s 31.496"/s
Minimum Speed 0.61 nm/s
Speed Resolution 0.61 nm/s
Encoder Type Linear analog encoder
Encoder Count Size 1 nm
Peak Thrust 16 N 3.6 lb
Maximum Continuous Thrust 6 N 1.3 lb
Maximum Centered Load 100 N 22.4 lb
Maximum Moment (Roll) 500 N⋅cm 708.1 oz⋅in
Maximum Moment (Pitch) 500 N⋅cm 708.1 oz⋅in
Maximum Moment (Yaw) 500 N⋅cm 708.1 oz⋅in
Guide Type Crossed-Roller Bearing
Typical Velocity Stability ± 0.33% at 100 mm/s with a 1.0 kg payload
Yaw 0.005° 0.087 mrad
Motor Type Moving Magnet Track Linear Motor
Motor Rated Current 1800 mA/phase
Force Constant 3.7 N/A 0.8 lbs/A
Motor Winding Resistance 2.3 ohms/phase
Inductance 0.09 mH/phase
Motor Connection D-sub 26
Limit or Home Sensing Optical Index Mark
Axes of Motion 1
Mounting Interface M6 threaded holes
Operating Temperature Range 0 to 50 °C
CE Compliant Yes
Vacuum Compatible No

Comparison

Part NumberTravel RangeMaximum AccelerationVertical RunoutHorizontal Runout
LDA025A-AE53T10A25 mm (0.984")78.5 m/s2 (8.00 g)< 4 µm (< 0.000157")< 4 µm (< 0.000157")
LDA075A-AE53T10A75 mm (2.953")44.1 m/s2 (4.50 g)< 8 µm (< 0.000315")< 6 µm (< 0.000236")
LDA150A-AE53T10A150 mm (5.905")24.5 m/s2 (2.50 g)< 15 µm (< 0.000591")< 10 µm (< 0.000394")
Part NumberPitchRollStiffness in PitchStiffness in Roll
LDA025A-AE53T10A0.006° (0.105 mrad)0.005° (0.087 mrad)500 N⋅m/° (35 µrad/N⋅m)500 N⋅m/° (35 µrad/N⋅m)
LDA075A-AE53T10A0.016° (0.279 mrad)0.007° (0.122 mrad)1000 N⋅m/° (17 µrad/N⋅m)600 N⋅m/° (29 µrad/N⋅m)
LDA150A-AE53T10A0.02° (0.349 mrad)0.015° (0.262 mrad)3000 N⋅m/° (6 µrad/N⋅m)700 N⋅m/° (25 µrad/N⋅m)
Part NumberStiffness in YawMoving MassWeight
LDA025A-AE53T10A400 N⋅m/° (44 µrad/N⋅m)0.29 kg (0.638 lbs)0.88 kg (1.940 lb)
LDA075A-AE53T10A900 N⋅m/° (19 µrad/N⋅m)0.43 kg (0.946 lbs)1.23 kg (2.712 lb)
LDA150A-AE53T10A1750 N⋅m/° (10 µrad/N⋅m)0.67 kg (1.474 lbs)1.78 kg (3.924 lb)

Charts and Notes

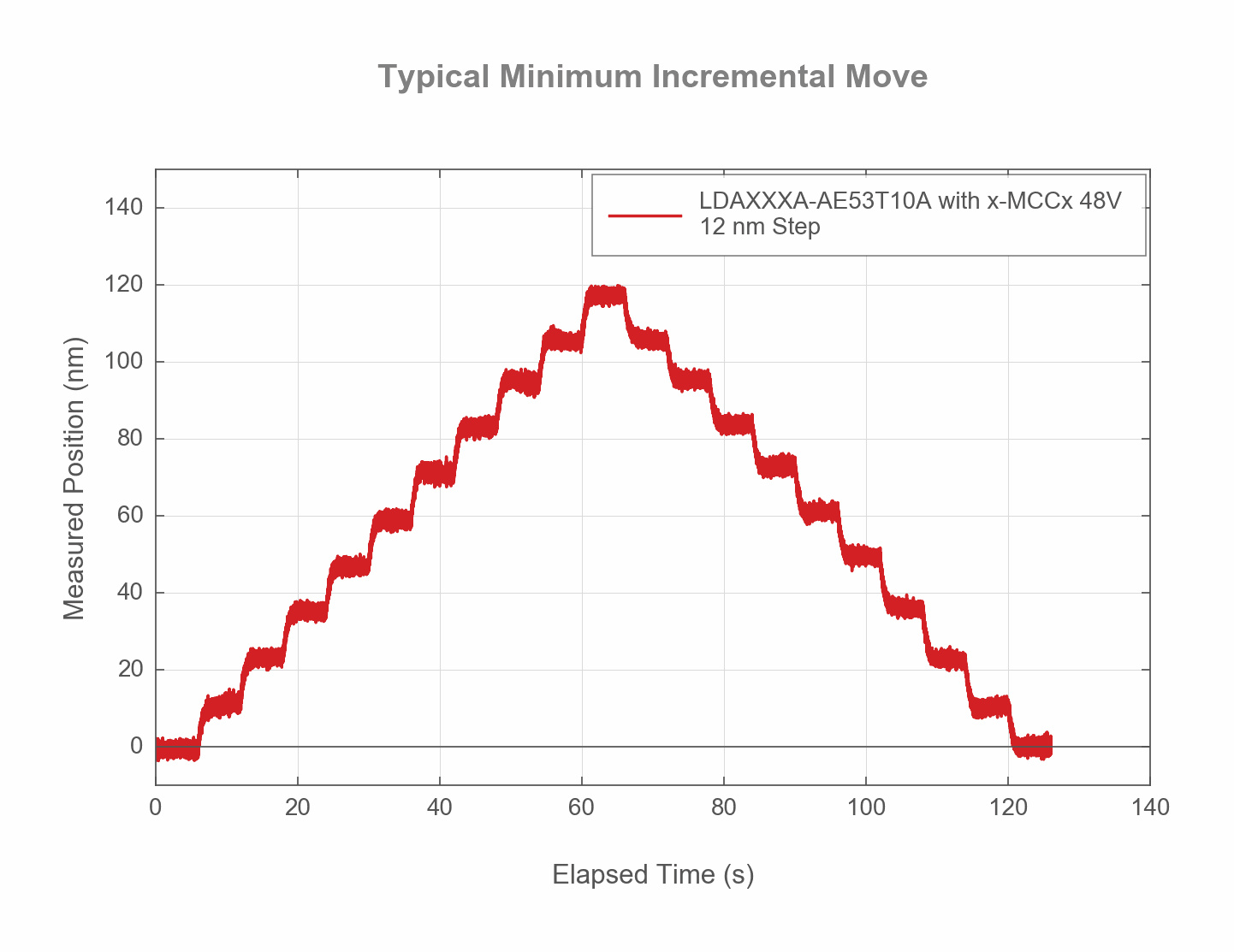

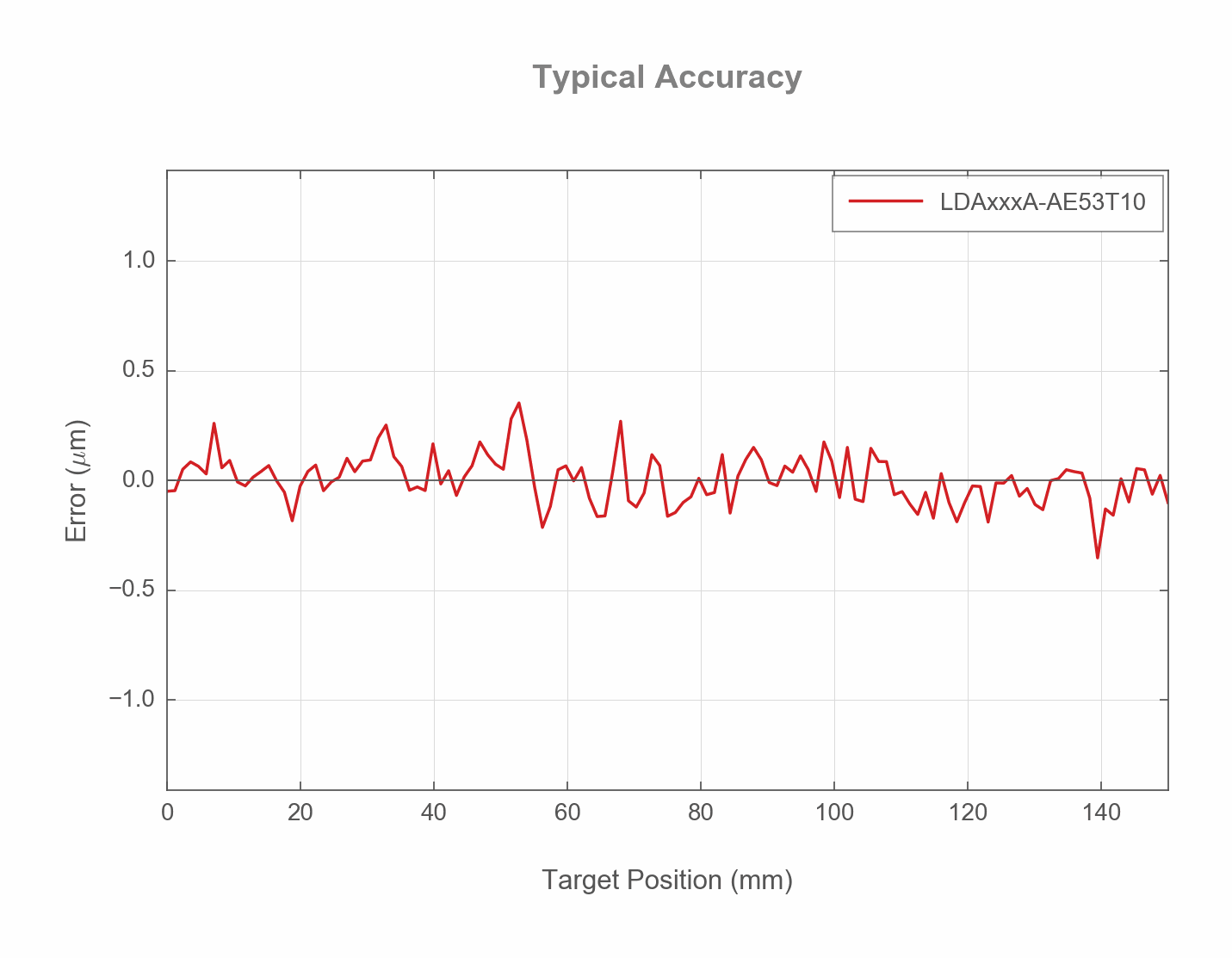

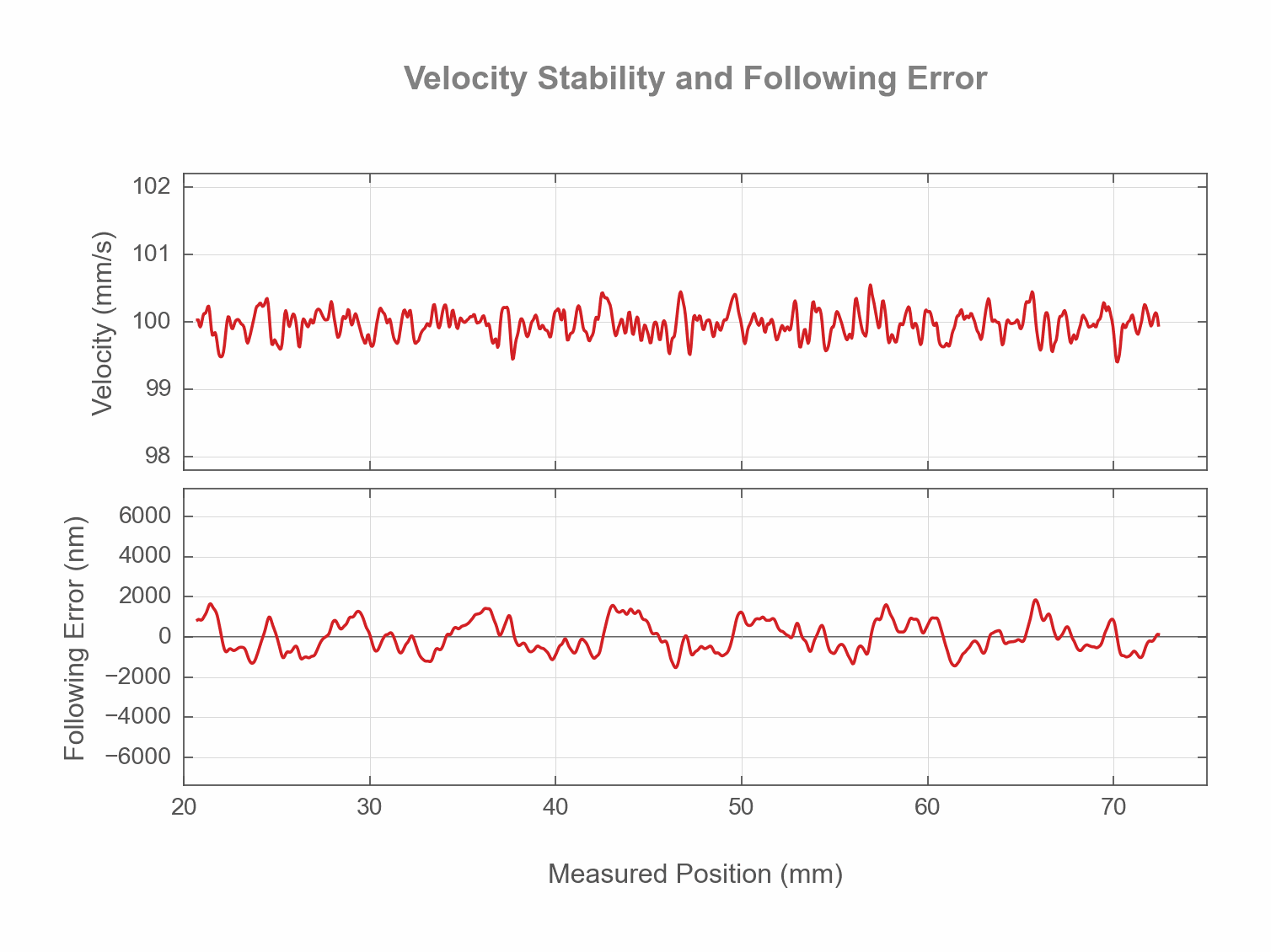

Performance Chart LDAxxxA-AE53T10_ACCURACY_WEB.gifPerformance Chart LDAxxxA-AE53_MIM_WEB.gifPerformance Chart Velocity Stability and Following Error - 57817

Product Change Notices

Click here to view the current product change notices and subscribe to future change notifications.
