VSR-E Series
Vertical lift stages with built-in motor encoders
About This Series

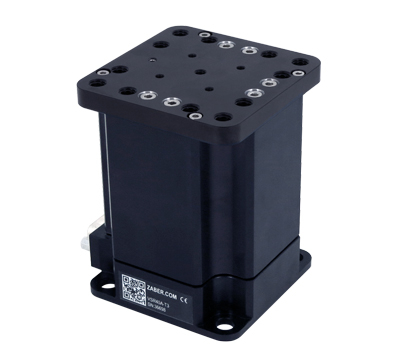

Zaber's VSR-E vertical lift stages are stepper actuator driven platforms capable of moving 10 kg loads. They deliver exceptional travel and load capacity for their compact sizes, measuring only 73 mm tall when closed. With small footprints these stages can also mount directly onto Zaber's LRT-C and LSQ series of linear stages.
The stages are designed to connect directly to our X-MCC Series universal motor controllers, or they can be used with any 2-phase stepper motor controller through the panel mount DB15 connector. Set up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the VSR-E.
- Panel Mount DB15 with AutoDetect allows the VSR-E to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- Top mounting surface for M6 and M3 fasteners.
- Easy access slots for M6 and 1/4-20 fasteners.
- Speed up to 55 mm/s.
- 73 mm tall when closed.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
