X-RSW-E Series

Motorized rotary stages with built-in controllers and motor encoders

About This Series

Zaber's X-RSW-E Series products are computer controlled motorized rotary stages with integrated controllers and motor encoders. They are stand-alone units requiring only a standard 24-48 V power supply.

Built-in motor encoders allow for closed-loop operation and slip/stall recovery features. An indexed knob provides smooth manual control at variable speeds in both directions for versatile operation even without a computer. Press and hold to switch between velocity mode and distance mode, turn to move the stage, and press to stop.

The stages connect to the USB 2.0 or RS-232 port of any computer and can be chained with several units per chain. They can also be chained with any other Zaber products. Convenient locking, 4-pin, M8 connectors on the unit allow for easy and secure connection between products. The chain also shares power, so multiple X-Series products can use a single power supply.

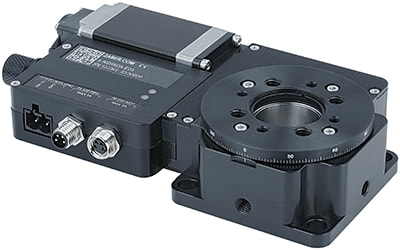

Photo of the X-RSW-E
1 2 3 4 5 6 7 8
  1. Control all units in the daisy-chain via serial port (with a locking X-SDC cable) or USB (with an X-USBDC cable).
  2. Daisy-chain additional units with a locking X-DC02 cable or X-DC06 cable. Power can also be shared in the chain.
  3. Integrated motor encoder, controller, and stepper motor driver provide easy-to-use closed-loop motion.
  4. Stage top has metric M6 threaded holes as well as UNC #8-32 holes.
  5. Rotating centre optic holder fits 25 mm (1").
  6. Non-rotating optic holder recessed into housing for simultaneous mounting of two optics (1 rotating and 1 fixed).
  7. Precision worm gear allows for continuous rotation.
  8. Holes on bottom and two sides provide flexible mounting options; can be mounted directly on other Zaber stages.

Easy Set-Up

Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:

  1. Connect the Zaber device to your computer via USB or RS-232 port.
  2. Connect the power supply to your Zaber device.
  3. Send instructions or automate your set-up using the Zaber Launcher.
Photo instructions of Typical Daisy-Chaining

For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.

For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
