RST Series
High load motorized rotation stages
About This Series
Zaber's RST Series products are motorized rotation stage devices. Rated for up to 300 kg centered load capacity and up to 70 N⋅m of torque, they are ideal for high load, angular positioning applications. They have large diameter apertures for a variety of thru-bore applications. RST stages are designed for plug-and-play use with any of Zaber's controllers.
The stages are designed to connect directly to our X-MCC Series universal motor controllers, or they can be used with any 2-phase stepper motor controller through the panel mount DB15 connector. Set up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the RST.

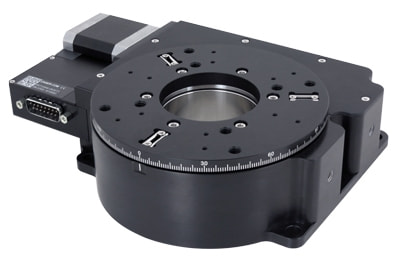

- Panel Mount DB15 with AutoDetect allows the RST to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
- Stage top supports multiple mounting options.
- 50.8 mm (2") or 101.6 mm (4") aperture with H7 tolerance.
- Holes on bottom and side provide flexible mounting options.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
