RST-DE Series
High precision motorized rotary stages with direct encoders
About This Series

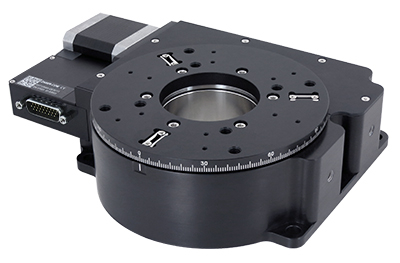

Zaber's RST-DE Series products are motorized rotation stages with built-in direct reading encoders for high accuracy motion. Rated for a 50 kg centered load capacity and 10 N⋅m of torque, they are ideal for high load, angular positioning applications. RST-DE stages are designed for plug-and-play use with any of Zaber's controllers. Set up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the RST-DE.
- Panel Mount DB26 with AutoDetect allows the RST-DE to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
- High accuracy obtained with direct reading encoder with 0.2 arc sec resolution.
- Stage top supports kinematic mounting with M2.5 and M6 threaded holes.
- 50.8 mm (2 inch) aperture with H7 tolerance.
- Holes on bottom and two sides provide flexible mounting options.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
