X-DMQ-AE Series
Direct drive linear stages with built-in controllers and linear encoders
Image is representative of the X-DMQ-AE Series and may not match the selected variant.
X-DMQ12L-AE55D12
Direct Drive Linear Stage | 12 mm Travel
Starting Price: $4,997 *
Standard Lead Time: 1-5 Days
X-DMQ12L-AE55D12 Specifications
Download Datasheet| Built-in Controller |  |
| Travel Range | 12 mm (0.472") |
| Accuracy (unidirectional) | 4 µm (0.000157") |
| Repeatability | < 0.5 µm (< 0.00002") |
| Minimum Incremental Move | 200 nm |
| Maximum Acceleration | 245 m/s2 (24.97 g) |
| Maximum Speed | 1400 mm/s (55.118"/s) |
| Minimum Speed | 0.61 nm/s |
| Speed Resolution | 0.61 nm/s |
| Encoder Type | Linear analog encoder |
| Encoder Count Size | 1 nm |
| Peak Thrust | 26 N (5.8 lb) |
| Maximum Continuous Thrust | 12 N (2.7 lb) |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII (Default) |
| Data Cable Connection | Locking 4-pin M8 |
| Maximum Centered Load | 100 N (22.4 lb) |
| Maximum Moment (Pitch) | 1.2 N⋅m (0.9 lb⋅ft) |
| Maximum Moment (Roll) | 3.2 N⋅m (2.362 lb⋅ft) |
| Maximum Moment (Yaw) | 1.2 N⋅m (0.886 lb⋅ft) |
| Flatness of Travel | < 6 µm (< 0.000236") |
| Straightness of Travel | < 5 µm (< 0.000197") |

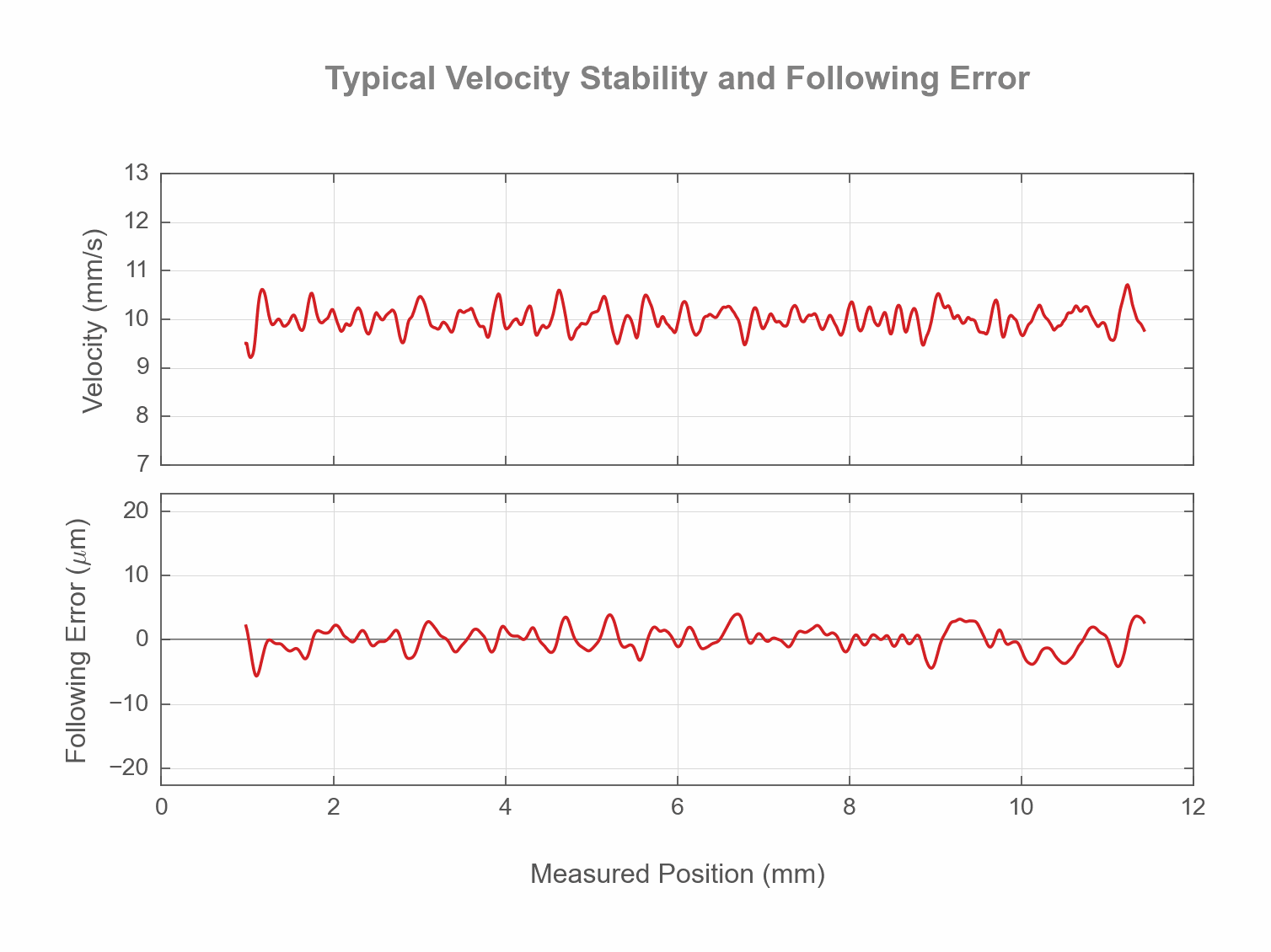

| Typical Velocity Stability | ± 4.7% at 10 mm/s with a 0.38 kg payload |
| Pitch | 0.01° (0.174 mrad) |
| Roll | 0.01° (0.174 mrad) |
| Yaw | 0.01° (0.174 mrad) |
| Stiffness (Pitch) | 50 N⋅m/° (349 µrad/N⋅m) |
| Stiffness (Roll) | 70 N⋅m/° (249 µrad/N⋅m) |
| Stiffness (Yaw) | 85 N⋅m/° (205 µrad/N⋅m) |
| Power Supply | 24-48 VDC |
| Power Plug | 2-pin screw terminal |
| Maximum Current Draw | 1000 mA |
| Motor Type | Voice Coil Linear Actuator |
| Force Constant | 12.6 N/A (2.8 lbs/A) |
| Guide Type | Crossed-Roller Bearing |
| Mechanical Drive System | Moving Coil, Direct Drive |
| Limit or Home Sensing | Optical Index Mark |
| Manual Control | |
| Axes of Motion | 1 |
| LED Indicators | |
| Mounting Interface | M6 and M3 threaded holes |
| Moving Mass | 0.095 kg (0.209 lbs) |
| Digital Input | 1 |
| Digital Output | 2 |
| Operating Temperature Range | 0-50 °C |
| CE Compliant | |
| Vacuum Compatible |  |
| Weight | 0.8 kg (1.764 lb) |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes

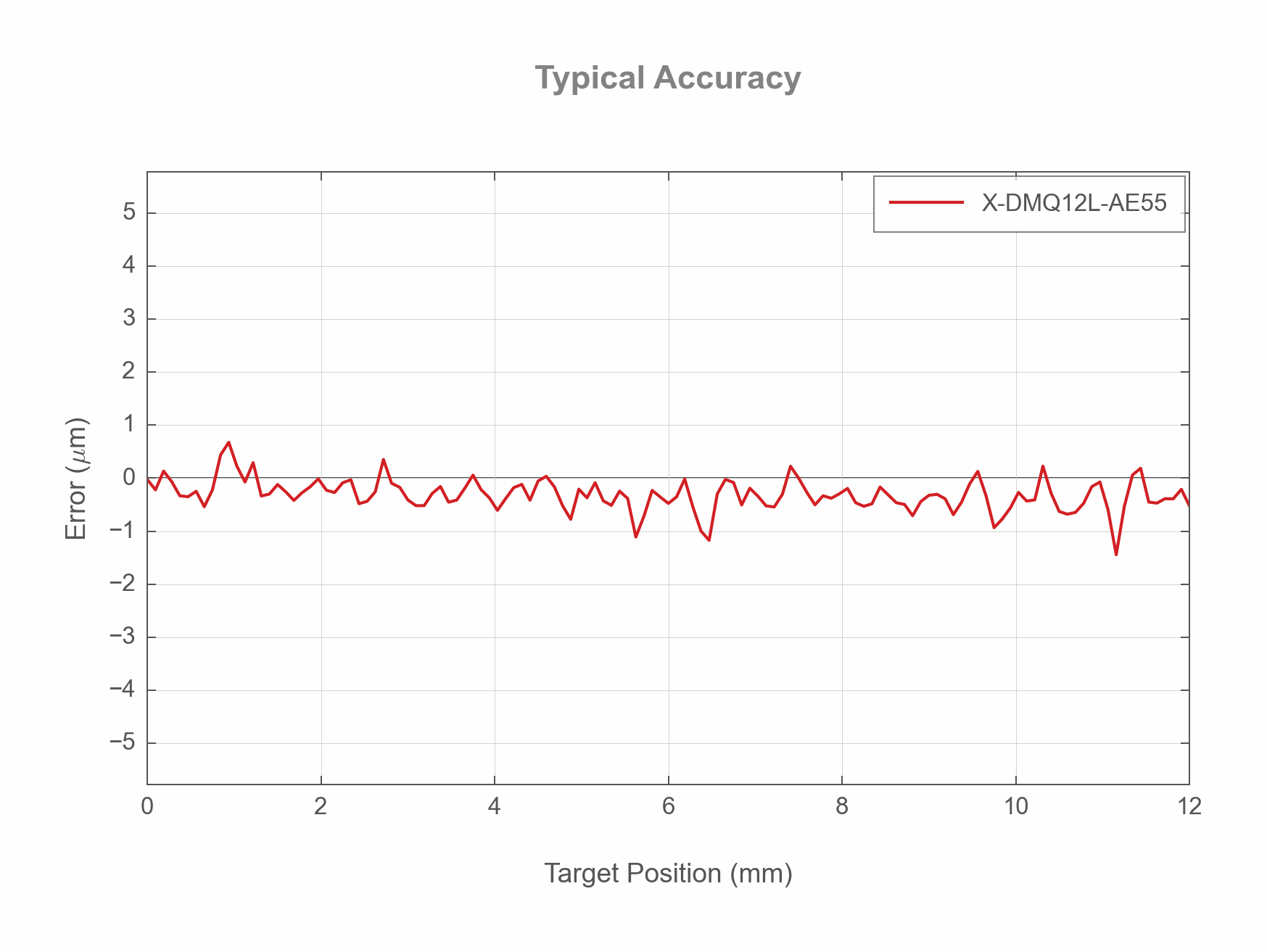

Typical Accuracy

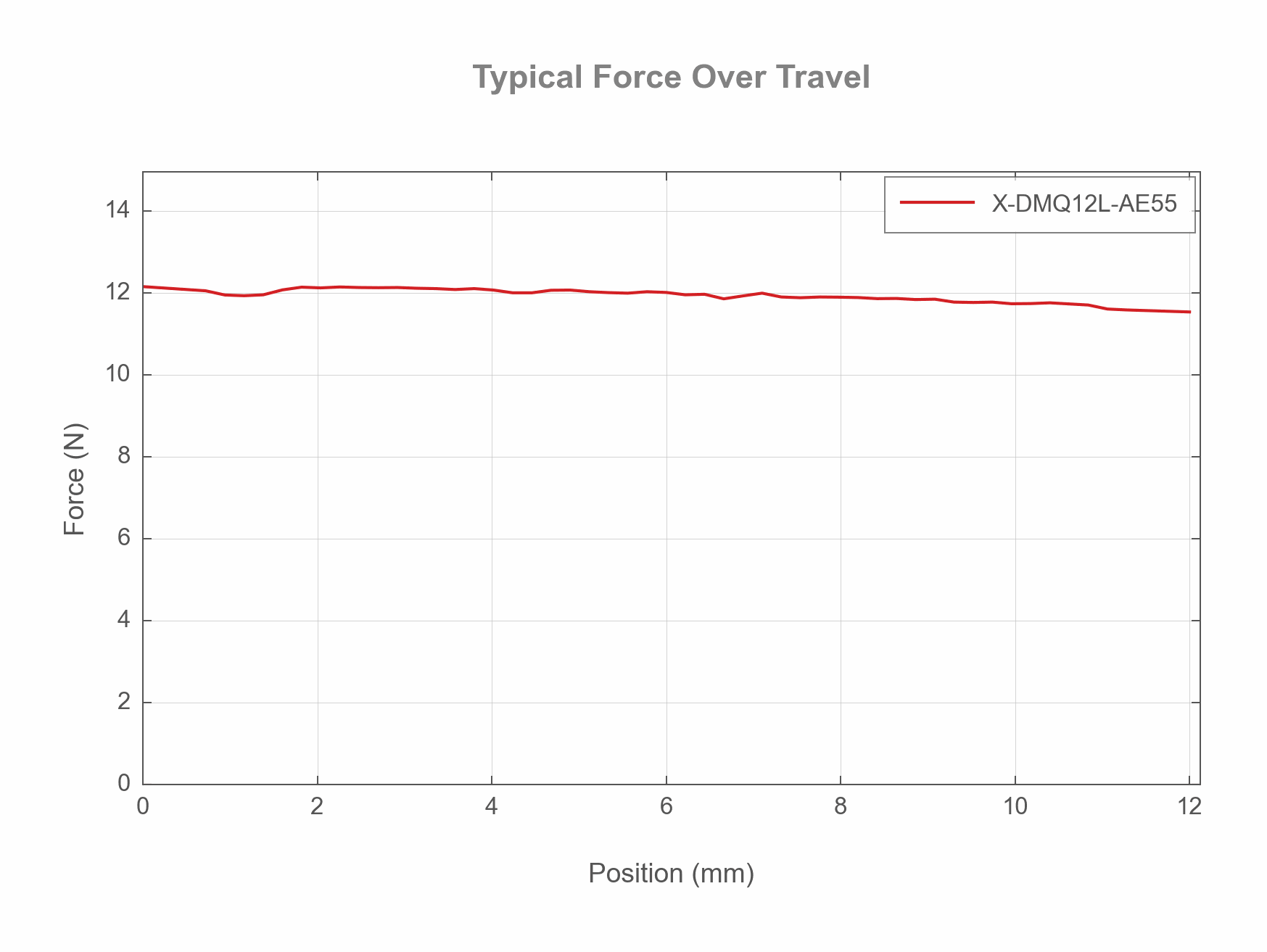

Force Over Travel
Error
