X-MCA Series
Stepper Motor Controllers

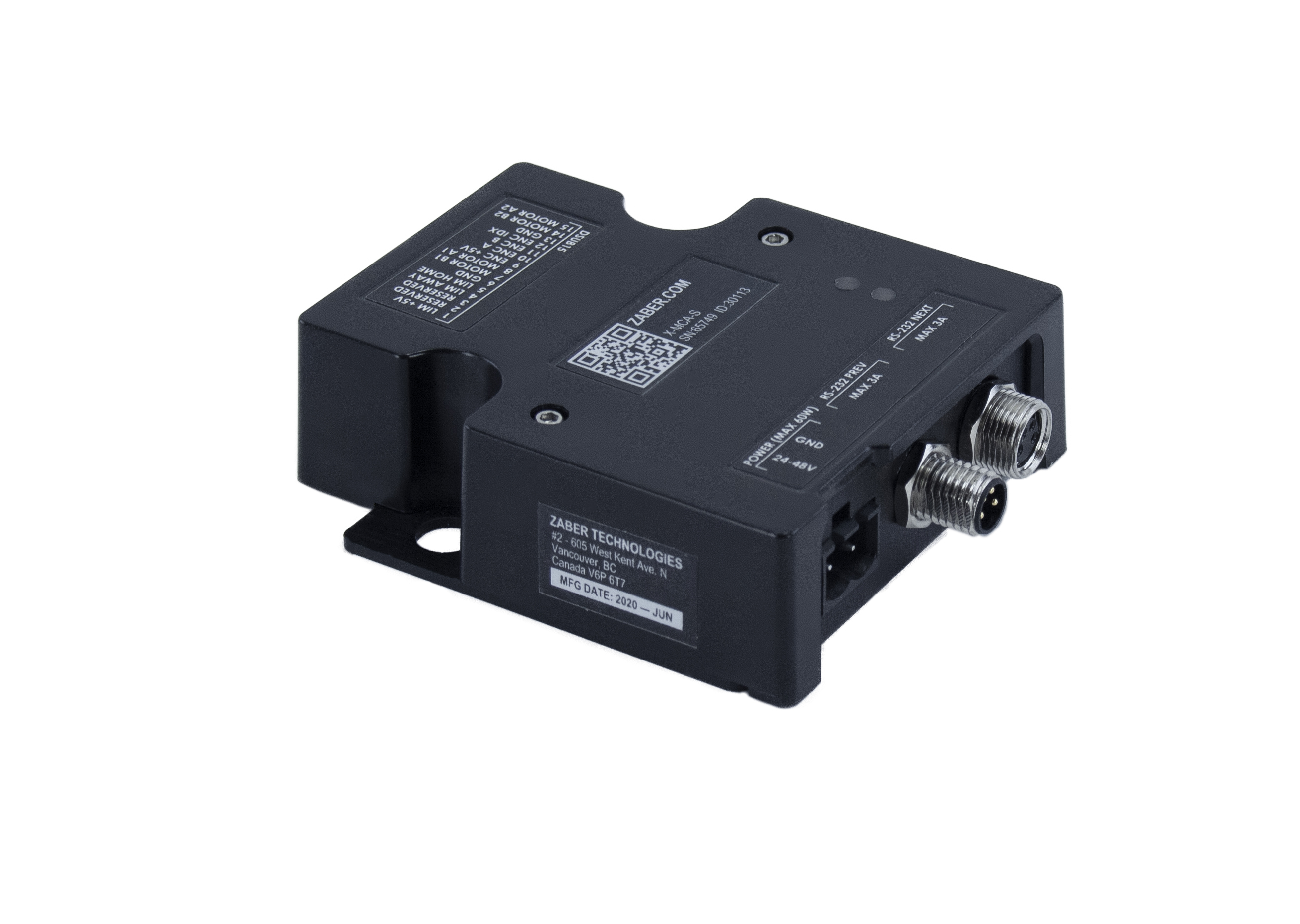

Image is representative of the X-MCA Series and may not match the selected variant.
X-MCA-S
2 Phase
Starting Price: $537
Standard Lead Time: 1-5 Days
Purchase Options
Add KX14A accessory kit (+ $173)
North America, 48 V. Powers multiple axes
- 1 x PS14S-48V37: Power Supply, 48 V 3.75 A
- 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products
- 1 x X-USBDC: USB to Serial Converter Cable, M8 Female Plug, X-Series Products
Total Price
$705 (USD) *
Add KX13A accessory kit (+ $98)
North America, 48 V. Powers one axis
- 1 x PS13S-48V12: Power Supply, 48 V 1.25 A
- 1 x X-DC02: Data Cable, 2 ft (0.6 m), X-Series Products
- 1 x X-USBDC: USB to Serial Converter Cable, M8 Female Plug, X-Series Products
Total Price
$630 (USD) *
Add PTB2 accessory (+ $5)
Power Supply Not Included
- 1 x PTB2: Power Terminal Block, 2 Pin, 5 mm Pitch, for Custom Power Supply
Total Price
$537 (USD) *
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
X-MCA-S Specifications
| AutoDetect |  |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII (Default), Zaber Binary |
| Data Cable Connection | Locking 4-pin M8 |
| Power Supply | 24-48 VDC |
| Power Plug | 2-pin Screw Terminal |
| Maximum Current Draw | Motor and supply voltage dependent |
| Controller Maximum Current Per Phase | 1000 mA (1418 mA peak) |
| Motor Connection | D-Sub 15 female |
| Default Resolution | 1/64 of a step |
| Manual Control |  |
| Axes of Motion | 1 |
| LED Indicators | |
| Limit Sensors per Axis | 2 |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant | |
| Vacuum Compatible | |
| Weight | 0.070 kg (0.154 lb) |
