(Discontinued) LSA-V1 Series
Low vacuum micro motorized linear stages
About This Series
EOL: End of Lifecycle. We are phasing out this product and will not be stocking parts. It might remain available into the future but the lead time and price will likely change depending on parts supply.
For more information about the basics of a vacuum system and considerations to keep in mind when gathering requirements for your application, read our technical article, "Motion Device Design Considerations for Vacuum Applications".

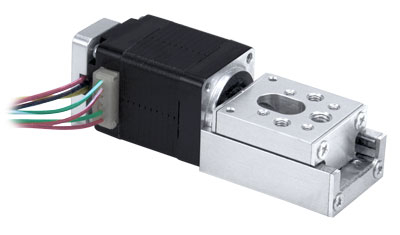

Zaber's LSA-V1 series stages are designed to fit into the smallest spaces, without sacrificing performance or features. Small but powerful, these stages have up to 10 mm/s speed and up to 35 N thrust. With a microstep size of less than 25 nm, they allow for reliable ultra-fine positioning in vacuum environments.
The LSA-V1 stages can be wired for plug-and-play use with our X-MCB1 Series stepper motor controllers. Only 7 feedthrough wires are required to control this device in a vacuum chamber.
- Only 7 feedthrough wires required to control these units.
- 200 µstep/revolution stepper motor, microstepped up to 256x (with X-MCB1) to provide smooth and precise motion.
- All mounting features vented for fast and convenient vacuum pump down.
- Low vacuum compatible stepper motors rated to 10-3 torr.
- M2 and M3 mounting patterns, M4 center hole for optical posts
- Stainless steel design for long lifetime and easy cleaning for vacuum environment.
- 10 or 25 mm of travel with 23 nm resolution (0.012 inch pitch lead screw).
- Compact design for fitting into the tightest spaces.
