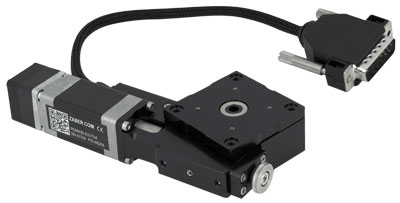

RSM-E Series
Motorized rotation stages with built-in motor encoders
About This Series
Zaber's RSM-E Series rotation stages are our most compact stepper and worm gear driven devices. Self-aligning feet and mounting points make it easy to set up multi-axis tilt or gimbal systems using the GSM tilt devices or AP146 and AB147 brackets.
RSM-E stages are designed to interface with our X-MCC Series universal motor controllers. Set up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the RSM-E.
- Integrated motor encoder, provides easy-to-use closed-loop motion.
- 200 step per revolution stepper motor, microstepped up to 256x to provide smooth and precise motion.
- The interlocking alignment system makes it easy to set up a gimbal system.
- M2 (20 mm pattern) and M3 (32 mm pattern) mounting holes provided.
- DB15 male, inline connector with AutoDetect allows the RSM-E to be easily connected to an X-MCC Series controller and ready to use without additional user input.
- An additional knob for coarse positioning without power.
Easy Set-Up
With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:
- Connect the X-MCC controller to your computer.
- Connect the controller to the peripheral and plug in the power supply.
- Send instructions or automate your set-up using the Zaber Launcher.
For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.
For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
