(Discontinued) LHM Series

Economy motorized linear stage

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)

About This Series

Zaber's LHM Series devices are motorized linear stages with a compact size and affordable price tag. The stages are designed to connect directly to our X-MCC Series universal motor controllers, or they can be used with any 2-phase stepper motor controller through the panel mount DB15 connector. Set up is easy with AutoDetect. Once connected, the X-MCC controller will automatically detect and configure the LHM.

At only 23 mm high, these miniature plain bearing stages are excellent for applications where a small profile is required. Carriage pre-load can be easily adjusted to compensate for wear over the lifetime of the stage.

For applications requiring more precise motion or high stiffness in multi-axis assemblies, please contact us or see our Product Overview page for the variety of stages we offer.

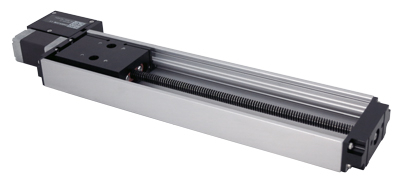

Photo of LHM
1 2 3 4 5 6
  1. Panel Mount DB15 with AutoDetect allows the LHM to be easily connected to an X-MCC Series controller and ready to use without additional user input.
  2. Only 23 mm high and designed to fit in low profile applications.
  3. 200 step per revolution motor, microstepped up to 256x to provide smooth and precise motion.
  4. Mount to the stage top using 4 x M3 threaded holes.
  5. LHM stages are available in a variety of travel lengths.
  6. LHM stages can be assembled in XY or XYZ configuration without additional hardware.

Easy Set-Up

With AutoDetect, the X-MCC controller will automatically detect and configure the peripheral. Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:

  1. Connect the X-MCC controller to your computer.
  2. Connect the controller to the peripheral and plug in the power supply.
  3. Send instructions or automate your set-up using the Zaber Launcher.
Photo instructions of Daisy-Chaining Peripherals

For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.

For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
