(Discontinued) T-NA Series
Micro linear actuators with built-in controllers

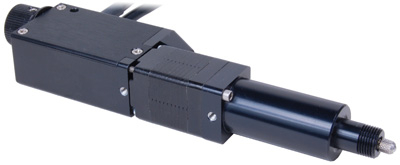

Image is representative of the T-NA Series and may not match the selected variant.
Add KT04U accessory kit (+ $153)
Power Supply Not Included
- 1 x PS04-15V26: Power Supply, 15 V DC 2.67 A out, 100-240 V AC in, North American Plug, International Adaptor Included on Request
- 1 x T-DC06: Data Cable, 6 ft, T-Series and A-Series Products
- 1 x T-DSUB9: Serial Adaptor
- 1 x T-USBDC: USB to Serial Converter, Mini-Din 6 Female Plug
Add KT03U accessory kit (+ $93)
Power Supply Not Included
- 1 x PS03-15V12U: Power Supply, 15 V DC 1.2 A out, 100-240 V AC in, Universal Plug Adaptors
- 1 x T-DC06: Data Cable, 6 ft, T-Series and A-Series Products
- 1 x T-DSUB9: Serial Adaptor
- 1 x T-USBDC: USB to Serial Converter, Mini-Din 6 Female Plug
Add KT01U accessory kit (+ $93)
Power Supply Not Included
- 1 x PS01-15V04: Power Supply, 15 V DC 0.4 A out, 110 V AC in, North American Plug
- 1 x T-DC06: Data Cable, 6 ft, T-Series and A-Series Products
- 1 x T-DSUB9: Serial Adaptor
- 1 x T-USBDC: USB to Serial Converter, Mini-Din 6 Female Plug
Stand-alone
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
T-NA08A50 Specifications
Download Datasheet| Microstep Size (Default Resolution) | 0.047625 µm |
| Built-in Controller |  |
| Travel Range | 50.8 mm (2.000") |
| Accuracy (unidirectional) | 55 µm (0.002165") |
| Repeatability | < 1 µm (< 0.000039") |
| Backlash | < 15 µm (< 0.000591") |
| Maximum Speed | 8 mm/s (0.315"/s) |
| Minimum Speed | 0.000446 mm/s (0.000018"/s) |
| Speed Resolution | 0.000446 mm/s (0.000018"/s) |
| Encoder Type |  |
| Peak Thrust | 50 N (11.2 lb) |
| Maximum Continuous Thrust | 50 N (11.2 lb) |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber Binary |
| Data Cable Connection | Minidin 6 |
| Power Supply | 12-16 VDC |
| Power Plug | 2.1 mm center positive |
| Maximum Current Draw | 350 mA |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Inductance | 1.5 mH/phase |
| Default Resolution | 1/64 of a step |
| Mechanical Drive System | Precision lead screw |
| Limit or Home Sensing | Magnetic hall sensor |
| Manual Control | |
| Axes of Motion | 1 |
| LED Indicators | Yes, Bi-colour |
| Mounting Interface | 3/8-32 nut, 3/8" shank, or M3 screws |
| Operating Temperature Range | 0 to 50 °C |
| CE Compliant | |
| Vacuum Compatible | |
| Weight | 0.15 kg (0.331 lb) |

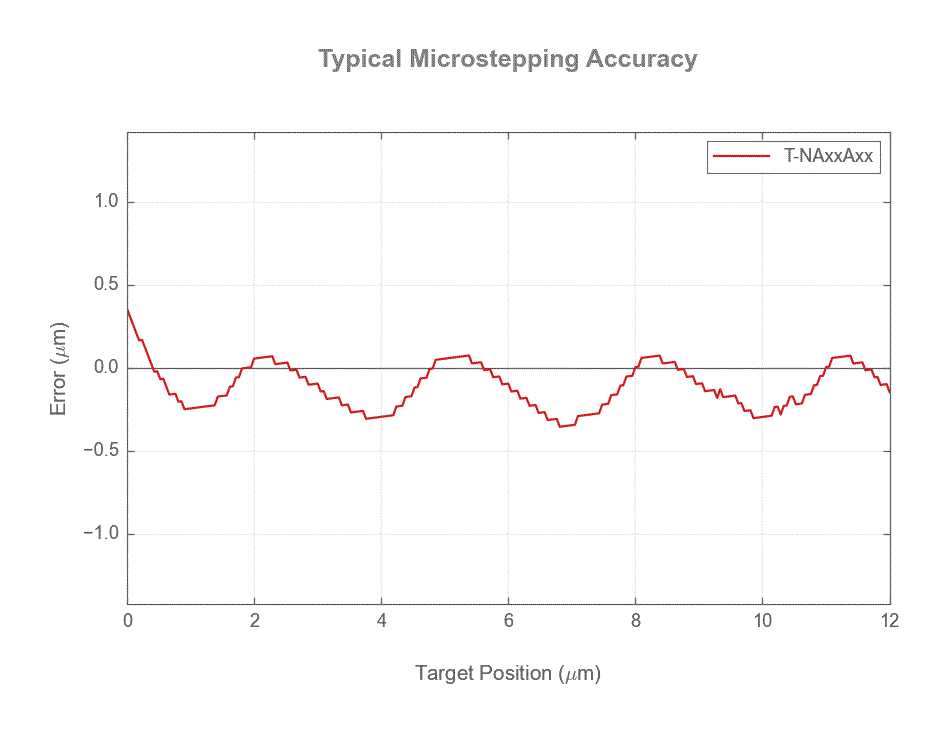

Specification Charts & Notes

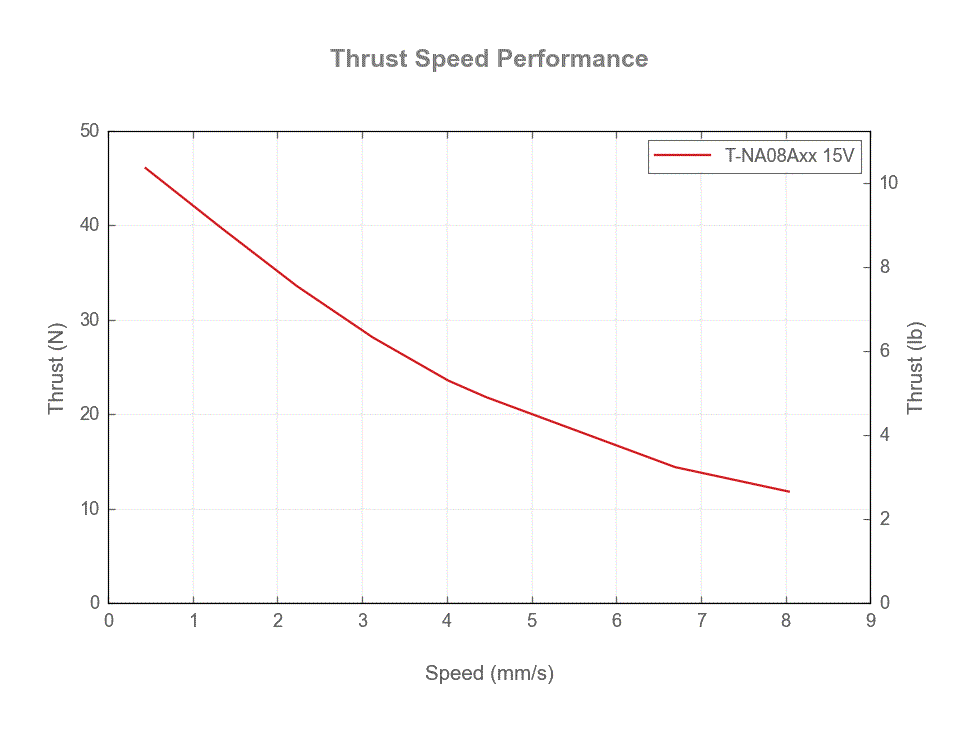

Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).
