(Discontinued) T-NA Series

Micro linear actuators with built-in controllers

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)CUSTOMIZATIONS

About This Series

Please see our TSB linear slides for more information on compatible slides.

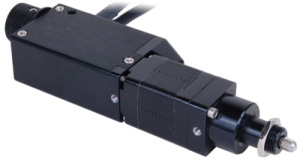

Default image for https://www.zaber.com/products/linear-actuators/T-NA/features
1 2 3 4 5 6 7 8 9 10
  1. An optional knob provides smooth manual control at variable speeds in both directions.
  2. LEDs indicate the power and communication status of the actuator at a glance.
  3. Control all units in the daisy-chain via serial port (with a T-DSUB9 adaptor) or USB (with a T-USBDC cable)
  4. Daisy-chain additional units without additional cables. Power can also be shared in the chain.
  5. All of Zaber's T-Series products have integrated stepper motor controller and motor driver!
  6. Powerful and compact NEMA08 stepper motor is matched to the built-in controller.
  7. Precision lead screw, stepper motor and advanced algorithm enable 50 nm resolution.
  8. Flexible M3 mounting interface, two on the bottom and two on the side.
  9. Standard mounting interface replaces most manual micrometer heads.
  10. M3, flat tip, or ball tip interface option included with every actuator.

Easy Set-Up

Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:

  1. Connect the Zaber device to your computer via USB or RS-232 port.
  2. Connect the power supply to your Zaber device.
  3. Send instructions or automate your set-up using the Zaber Launcher.
Photo instructions of Typical Daisy-Chaining

For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.

For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
