(Discontinued) T-MM Series

Motorized mirror mounts with built-in controllers

OVERVIEWFEATURESSPECIFICATIONSSUPPORT & DRAWINGS (PNG, STEP, CAD)

About This Series

The T-MM2 Series are motorized two axis mirror mounts. They can be controlled manually or by using the RS-232 serial interface.

Default image for https://www.zaber.com/products/optical-mounts/T-MM/features
1 2 3 4 5 6 7 8
  1. Each T-MM Series mirror mount has two T-Series compatible integrated stepper motor controllers and drivers.
  2. A knob provides smooth manual control at variable speeds in both directions.
  3. Control all units in the daisy-chain via serial port (with a T-DSUB9 adaptor) or USB (with a T-USBDC cable)
  4. Daisy-chain additional units without additional cables. Power can also be shared in the chain.
  5. Powered by standard AC/DC adaptors (included in kits), a convenient and inexpensive solution.
  6. Clear aperture accepts standard 2" diameter optics (mirrors, filters, or lenses). Lens adaptors available.
  7. Two integrated stepper motors and advanced algorithm enables 0.000086 degree resolution.
  8. Mirror mount and motion control system in one compact package; minimizes cable clutter.

Easy Set-Up

Zaber's devices can share both data and power through a daisy-chain, which reduces cabling and makes set-up as easy as 1, 2, 3:

  1. Connect the Zaber device to your computer via USB or RS-232 port.
  2. Connect the power supply to your Zaber device.
  3. Send instructions or automate your set-up using the Zaber Launcher.

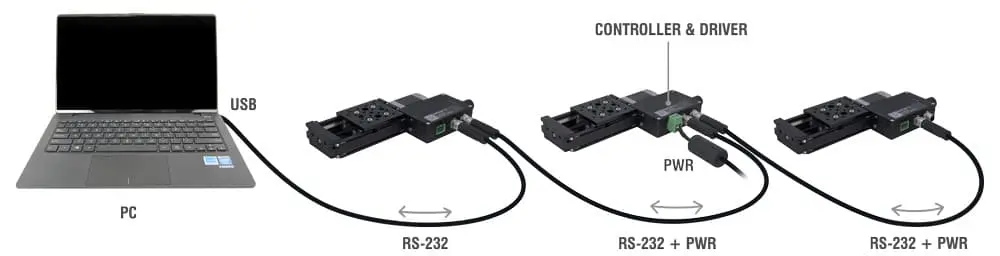

Photo instructions of Typical Daisy-Chaining

For more details on daisy-chaining, read our technical article, "Daisy-chaining Data and Power to Reduce Cabling", or to determine which accessories you need for your system, try our Connection Guide Tool.

For additional information about setting up our devices, please visit our Support page, which includes our Getting Started Guide, Troubleshooting Guides, product user manuals, and other resources.
