Objective Focus Stage
- Unbeatable Price Performance
10 nm step size and sub-15 ms move and settle time maximizes your imaging throughput and is comparable to Piezo stages at ⅓ the cost - Simplify System Design
Easily integrate with Zaber XY stages, filter wheels, illuminators, process controllers, and more to quickly build advanced, custom imaging systems - Small Size. BIG Features.
Adjustable frictionless counterbalance and integrated controller with rich IO connectivity and driver all within 77 mm x 100 mm x 30.5 mm. No bulky external hardware is required. - OEM Ready
High performance and industrial reliability backed by a reliable supply chain and high production capacity
User-Friendly
Software & API
Plug & Play in Minutes
High Production Capacity
Achieve rapid and accurate microscope focus with the Zaber DMA objective focus stage. Its ultra-compact form-factor with integrated controller, driver, counterbalance and rich IO connectivity minimizes your device footprint and makes integration fast and easy.
Ideal for microscope system builders working with high magnification and high NA objectives who need accurate and repeatable focus control, and OEM device manufactures looking to maximize imaging throughput and minimize device footprint.
DMA Family — DMA Objective Focus Stage
Starting Price
$3,159 (USD)

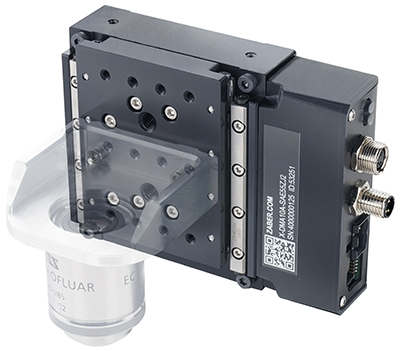

Representative Image
- Non-contact direct-drive motor for maximum throughput and reliability
- 1 nm resolution encoder and 10 nm step size
- Maximize imaging throughput with 15 ms move and settle time
- Adjustable frictionless magnetic counterbalance available for vertical orientations
| Shortest Travel | Longest Travel | Best Accuracy | Best Repeatability | Best Minimum Incremental Move |
|---|---|---|---|---|
10 mm (0.394") | 10 mm (0.394") | 8 µm (0.000315") | < 0.05 µm (< 0.000002") | 10 nm |
