(Discontinued) ASR-E Series
Closed-loop motorized XY scanning stages with built-in motor encoders (No AutoDetect)
This page is for an outdated version, for reference information on specifications, drawings, and models. See the ASR-E for the current version.

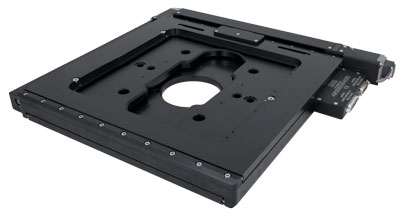

Image is representative of the ASR-E Series and may not match the selected variant.
ASR205B205B-E03T3
Closed-loop Motorized XY Microscope Stage | 205 mm X 205 mm Travel
Starting Price: $6,544 * | Discontinued
ASR205B205B-E03T3 Specifications
Download Datasheet| Built-in Controller |  |
| Recommended Controller | Contact Us |
| AutoDetect | |
| X Travel Range | 205 mm (8.071") |
| Y Travel Range | 205 mm (8.071") |
| Axes of Motion | 2 |
| Weight | 6.65 kg (14.661 lb) |
| Accuracy (unidirectional) | 50 µm (0.001968") |
| Repeatability | < 2 µm (< 0.000079") |
| Flatness of Travel | 25 µm (0.001") |
| Backlash | < 10 µm (< 0.000394") |
| Pitch Error | 0.02° (0.349 mrad) |
| Roll Error | 0.01° (0.174 mrad) |
| Yaw Error | 0.01° (0.174 mrad) |
| Microstep Size (Default Resolution) | 0.15625 µm |
| Default Resolution | 1/64 of a step |
| Peak Thrust | 95 N (21.3 lb) |
| Maximum Continuous Thrust | 95 N (21.3 lb) |
| Maximum Centered Load | 100 N (22.4 lb) |
| Maximum Speed | 85 mm/s (3.346"/s) |
| Minimum Speed | 0.000095 mm/s (0.000004"/s) |
| Speed Resolution | 0.000095 mm/s (0.000004"/s) |
| Encoder Type | Rotary quadrature encoder (incremental) |
| Limit or Home Sensing | Magnetic, adjustable home and away sensors |
| Linear Motion Per Motor Rev | 2.00 mm (0.079") |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 670 mA/phase |
| Motor Winding Resistance | 9.2 ohms/phase |
| Motor Winding Inductance | 5.6 mH/phase |
| Motor Connection | D-sub 15 |
| Guide Type | Crossed roller bearing |
| Mechanical Drive System | Precision lead screw |
| Mounting Interface | Separate mounting adaptors available |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

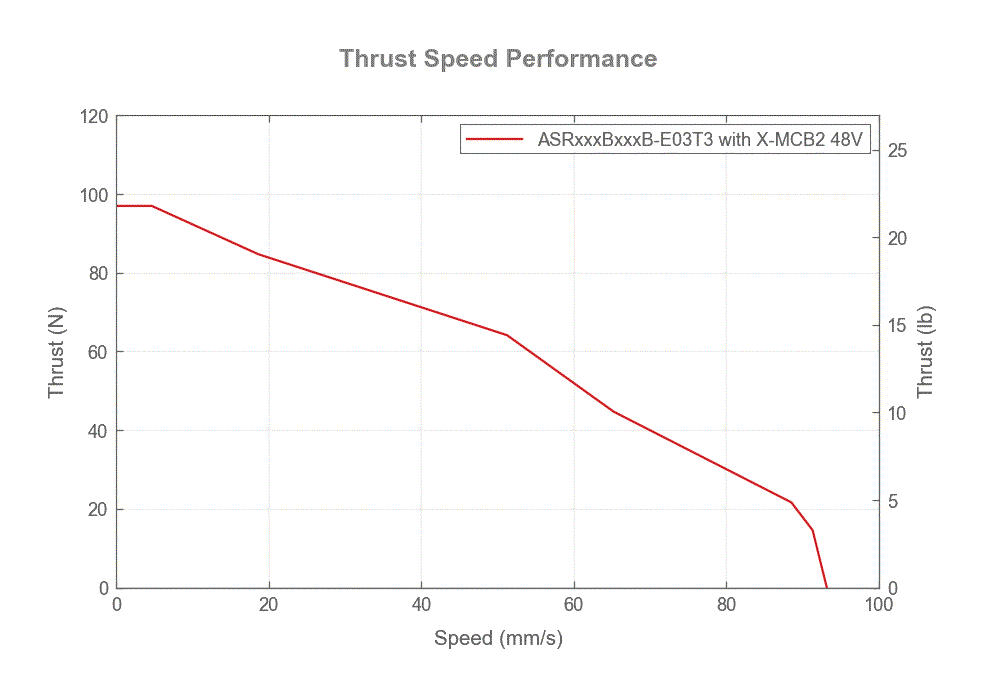

Thrust Speed Performance

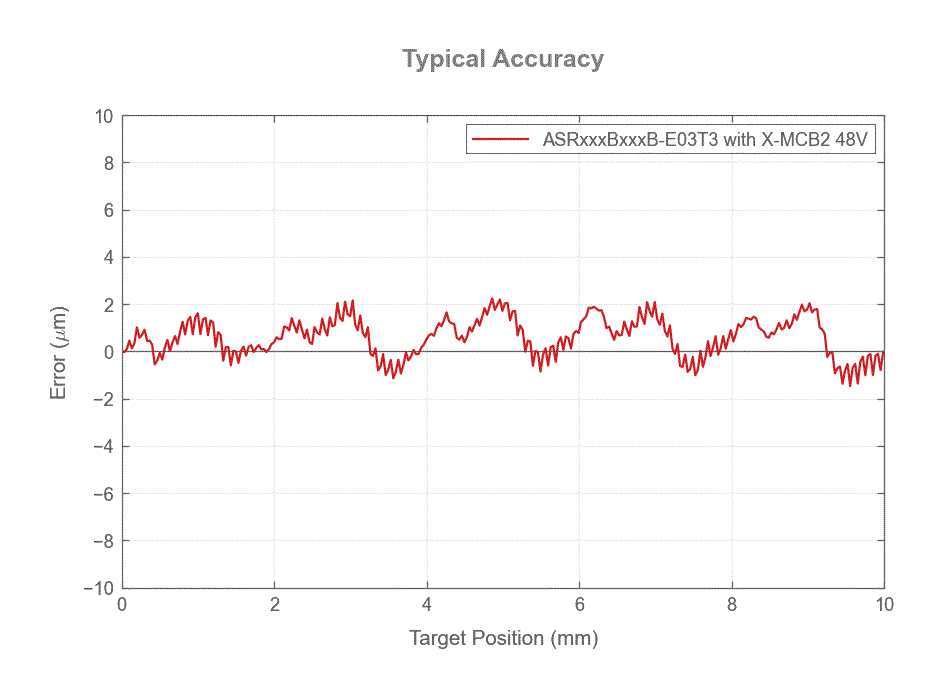

Typical Accuracy

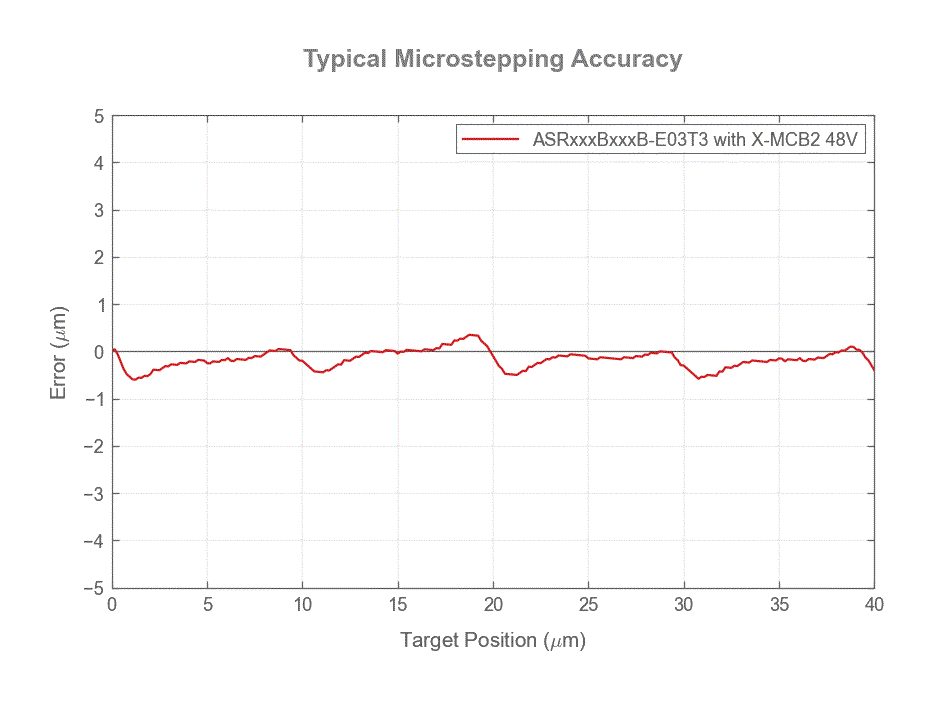

Typical Microstepping Accuracy
