X-LDQ-AE Series
High speed, precision linear motor stages with built-in controllers and linear encoders

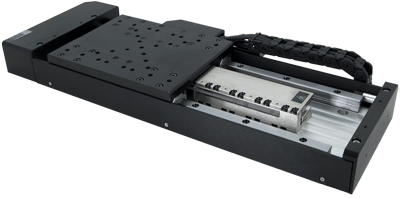

Image is representative of the X-LDQ-AE Series and may not match the selected variant.
X-LDQ0075C-AE53D12
75 mm Travel
Starting Price: $6,991 *
Lead Time: 1-5 Days
X-LDQ0075C-AE53D12 Specifications
Download Datasheet| Built-in Controller |  |
| Travel Range | 75 mm (2.953") |
| Manual Control | Indexed knob with push switch |
| Axes of Motion | 1 |
| LED Indicators | |
| Weight | 6.4 kg (14.11 lb) |
| Accuracy (unidirectional) | 2.5 µm (0.000098") |
| Repeatability | < 0.3 µm (< 0.000012") |
| Minimum Incremental Move | 50 nm |
| Flatness of Travel | < 20 µm (< 0.000787") |
| Straightness of Travel | < 6 µm (< 0.000236") |
| Pitch Error | 0.008° (0.14 mrad) |
| Roll Error | 0.005° (0.087 mrad) |
| Yaw Error | 0.02° (0.349 mrad) |
| Peak Thrust | 40 N (9 lb) |
| Maximum Continuous Thrust | 35 N (7.8 lb) |
| Maximum Centered Load | 200 N (44.9 lb) |
| Maximum Moment (Pitch) | 30 N⋅m (22.1 lb⋅ft) |
| Maximum Moment (Roll) | 30 N⋅m (22.14 lb⋅ft) |
| Maximum Moment (Yaw) | 30 N⋅m (22.14 lb⋅ft) |
| Stiffness (Pitch) | 8000 N⋅m/° (2 µrad/N⋅m) |
| Stiffness (Roll) | 3800 N⋅m/° (5 µrad/N⋅m) |
| Stiffness (Yaw) | 4000 N⋅m/° (4 µrad/N⋅m) |
| Maximum Acceleration | 39.24 m/s2 (4 g) |
| Maximum Speed | 1500 mm/s (59.055"/s) |
| Minimum Speed | 0.61 nm/s |
| Speed Resolution | 0.61 nm/s |
| Typical Velocity Stability | ± 0.54% at 100 mm/s with a 5 kg payload |
| Encoder Type | Linear analog encoder |
| Encoder Count Size | 1 nm |
| Limit or Home Sensing | Optical Index Mark |
| Motor Type | Moving Coil Linear Motor (3 phase) |
| Force Constant | 15.8 N/A (3.5 lbs/A) |
| Communication Interface | RS-232 |
| Communication Protocol | Zaber ASCII (Default) |
| Data Cable Connection | Locking 4-pin M8 |
| Power Supply | 24-48 VDC |
| Power Plug | 2-pin screw terminal |
| Maximum Current Draw | 3000 mA |
| Guide Type | Recirculating Ball Linear Guide |
| Mounting Interface | M6 threaded holes |
| Moving Mass | 1.5 kg (3.3 lbs) |
