(Discontinued) LST-E Series
High-load motorized linear stages with built-in motor encoders
This series has been discontinued and is no longer available. Please contact us for a recommendation on a current model.
Image is representative of the LST-E Series and may not match the selected variant.
LST0500B-E01T3
500 mm Travel | Medium Resolution | Medium Speed
Starting Price: $3,198 * | Discontinued
LST0500B-E01T3 Specifications
Download Datasheet| Built-in Controller |  |
| Recommended Controller | X-MCB1 (48 V) Recommended |
| AutoDetect | |
| Travel Range | 500 mm (19.685") |
| Manual Control | Knob with center detent |
| Axes of Motion | 1 |
| Weight | 5 kg (11.023 lb) |
| Accuracy (unidirectional) | 125 µm (0.004921") |
| Repeatability | < 2 µm (< 0.000079") |
| Backlash | < 10 µm (< 0.000394") |
| Flatness of Travel | < 13 µm (< 0.000512") |
| Straightness of Travel | < 13 µm (< 0.000512") |
| Pitch Error | 0.10° (1.745 mrad) |
| Roll Error | 0.08° (1.396 mrad) |
| Yaw Error | 0.05° (0.873 mrad) |
| Microstep Size (Default Resolution) | 0.49609375 µm |
| Default Resolution | 1/64 of a step |
| Peak Thrust | 350 N (78.5 lb) |
| Maximum Continuous Thrust | 350 N (78.5 lb) |
| Maximum Centered Load | 1000 N (224.3 lb) |
| Maximum Moment (Tilt) | 3000 N⋅cm (4248.4 oz⋅in) |
| Maximum Speed | 100 mm/s (3.937"/s) |
| Minimum Speed | 0.000303 mm/s (0.000012"/s) |
| Speed Resolution | 0.000303 mm/s (0.000012"/s) |
| Encoder Type | Rotary quadrature encoder (incremental) |
| Encoder Resolution | 500 CPR (2000 states/rev) |
| Limit or Home Sensing | Magnetic home sensor |
| Linear Motion Per Motor Rev | 6.35 mm (0.25") |
| Motor Steps Per Rev | 200 |
| Motor Type | Stepper (2 phase) |
| Motor Rated Current | 2100 mA/phase |
| Motor Winding Inductance | 6.4 mH/phase |
| Motor Connection | D-sub 15 |
| Guide Type | Roller bearing |
| Mechanical Drive System | Precision lead screw |
| Mounting Interface | M6 and M3 threaded holes |
* These are our direct prices in USD to customers in North America. If you are in Canada, click the Canadian flag icon at the top right of the page to see CAD prices. If you are in a country outside North America where we have an exclusive distributor, please check with the distributor for pricing. Distributor prices might be slightly higher to factor in shipping and import fees. Click here for a list of Zaber's Distributors.
Specification Charts & Notes
Thrust or torque is a function of speed. The values given above are maximums. These values cannot both be achieved simultaneously (i.e. at maximum speed, the unit will not produce maximum thrust).

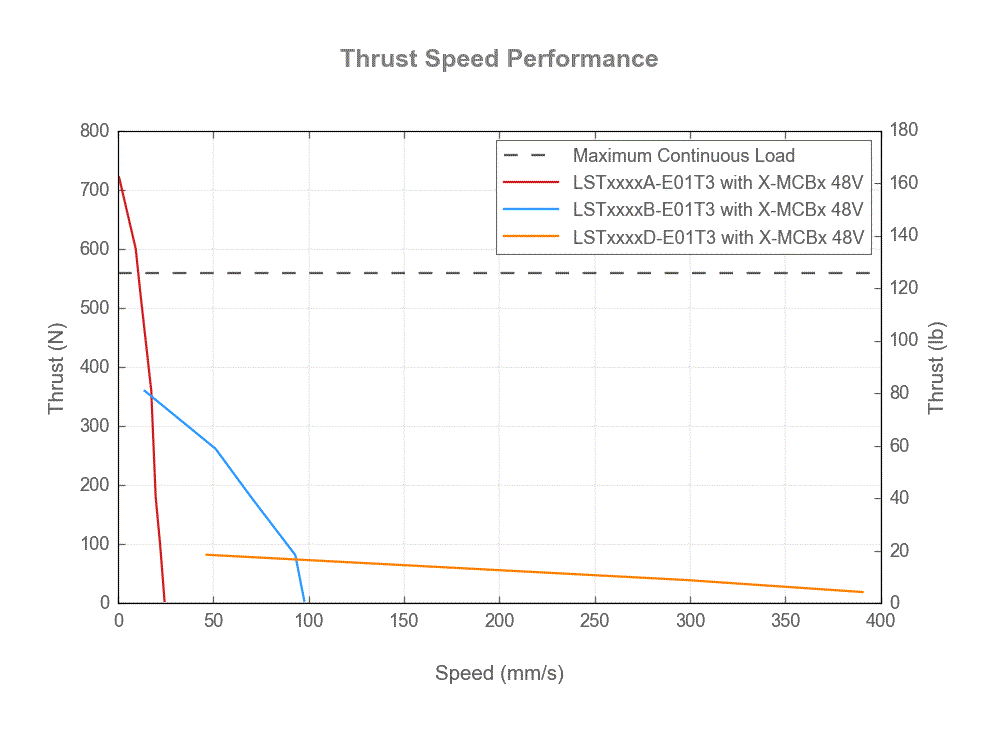

Thrust Speed Performance

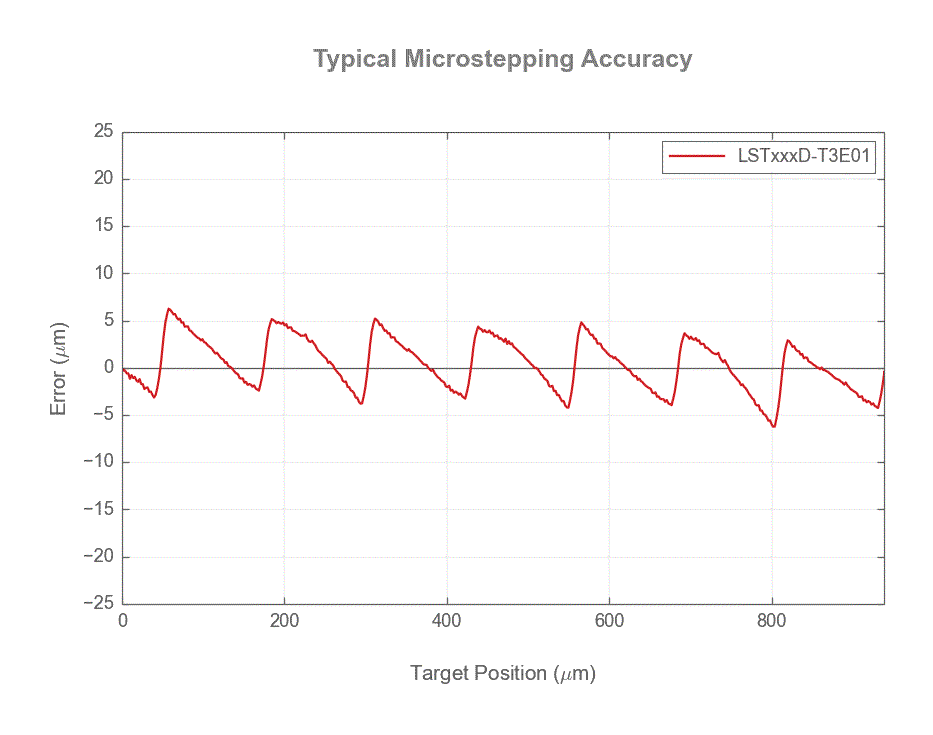

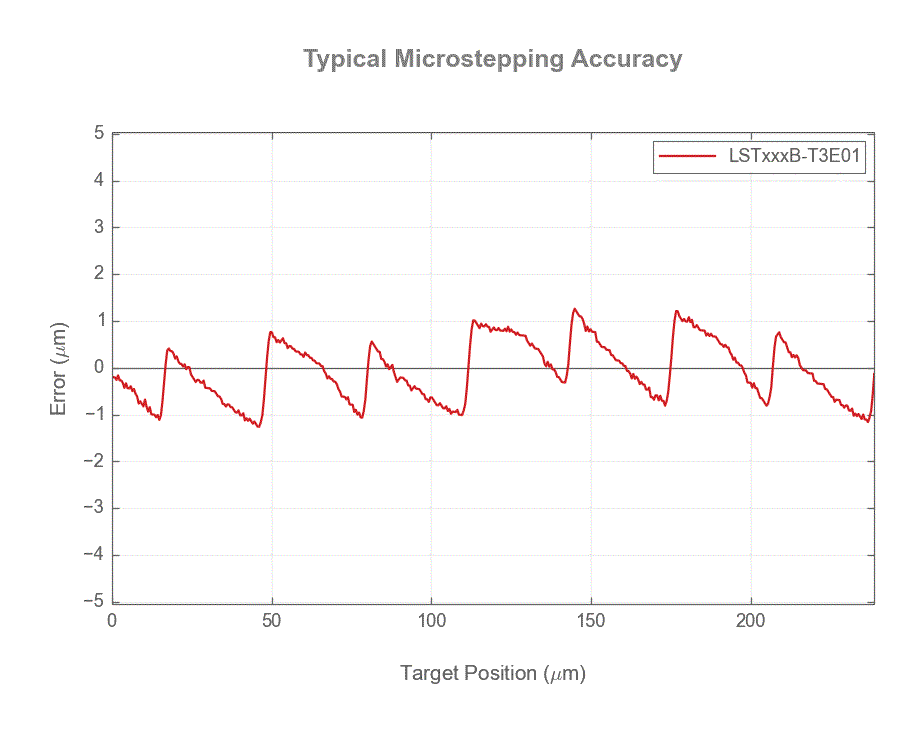

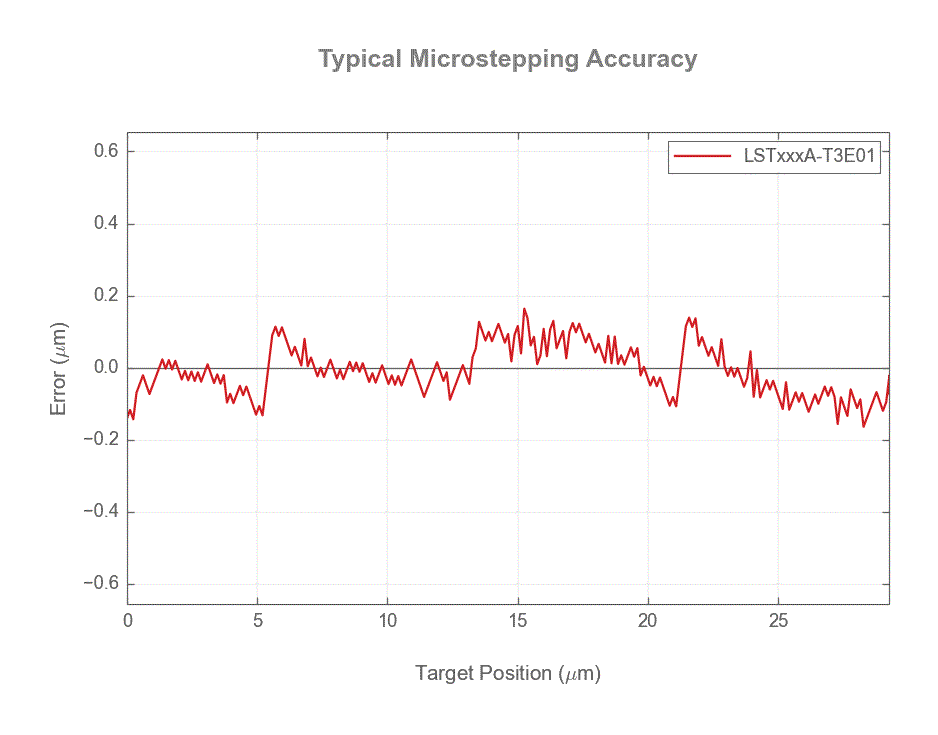

Typical Microstepping Accuracy
